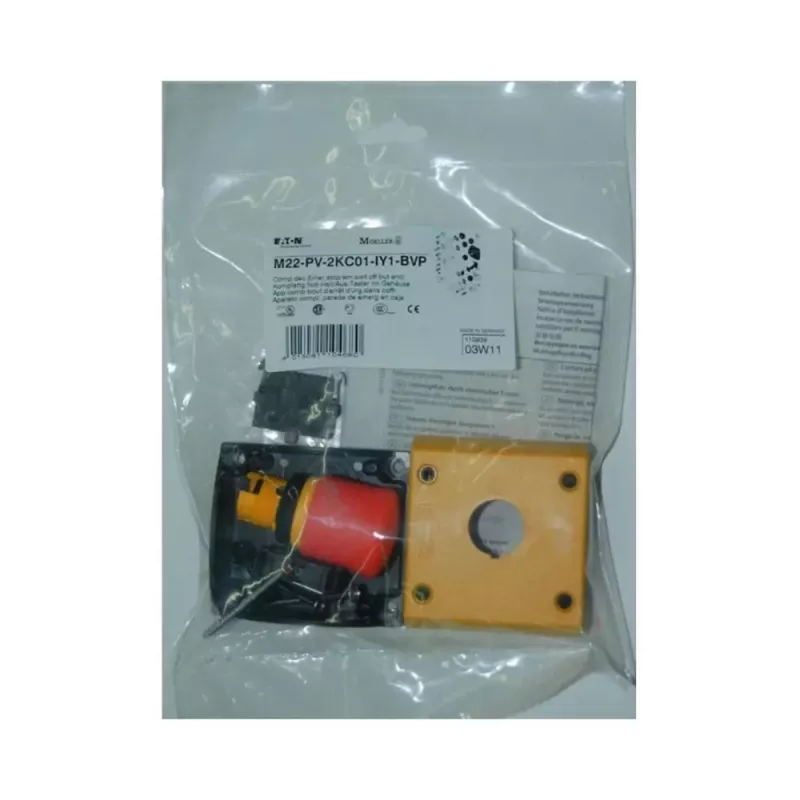

Eaton M22-PV-2KC01-IY1-BVP Botão de paragem de emergência, 2 NC, desbloqueio por puxamento, IP66, cabeça de cogumelo vermelha sobre colar amarelo 110939

On industrial control panels and machinery, a reliable emergency stop is critical for operator safety. The Eaton M22-PV-2KC01-IY1-BVP is a 22.5 mm emergency stop pushbutton with a red 38 mm mushroom head on a yellow background, providing high visibility and quick access in urgent situations. Its pull-to-release mechanism prevents accidental reset, ensuring deliberate action to restart the process.

Key specifications

• Product type: Emergency stop pushbutton
• Actuator: Mushroom head, red, 38 mm diameter
• Background: Yellow
• Contact configuration: 2 normally closed (NC)
• Release mechanism: Pull-to-release
• Mounting diameter: 22.5 mm
• Front protection rating: IP66
• Rated operational voltage: 500 V AC / 250 V DC
• Rated operational current: 6 A (AC-15, 230 V) / 3 A (DC-13, 220 V)
• Terminal type: Screw terminals
• Mechanical life: >100,000 operations
• Electrical life: >100,000 operations
• Operating temperature range: -25 °C to +70 °C
• Housing material: High-grade plastic bezel, metal mounting ring
• Non-illuminated

Why choose it

This emergency stop button combines robust construction with clear visual indication. The red mushroom head on a yellow background conforms to international safety standards for emergency stop devices. The IP66 front protection ensures resistance to dust and powerful water jets, making it suitable for harsh industrial environments. The pull-to-release action adds a layer of safety by requiring a deliberate reset.

Ideal use cases

• Industrial control panels
• Conveyor systems
• Packaging machinery
• Machine tools
• Process automation

Good to know

The device is designed for panel mounting with a 22.5 mm diameter hole. It uses screw terminals for secure wiring. The rear protection rating is IP20, so the rear side should be installed in an enclosure providing additional protection. The operating temperature range allows use in a wide variety of industrial settings.
