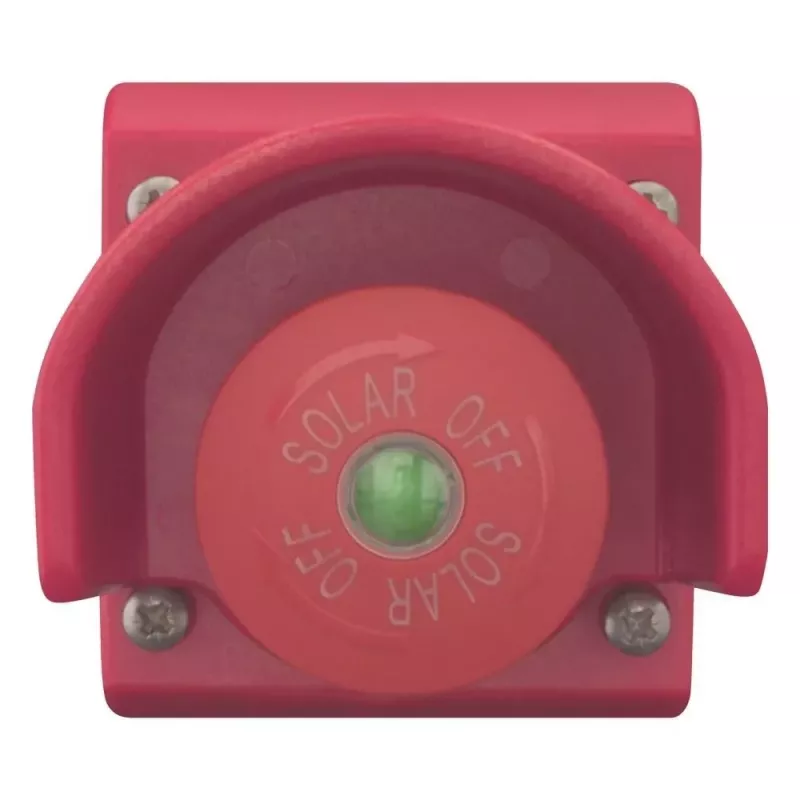

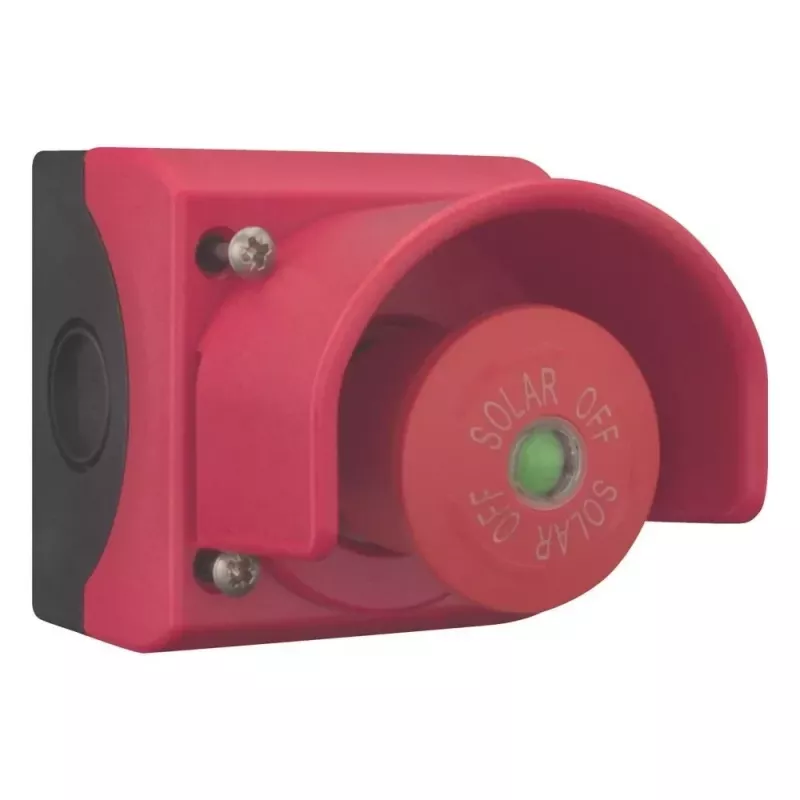

Eaton M22-SOL PV interruptor de comando-seccionador, 230V AC, 6A, 1NO+1NC, IP67/IP69K, com anel de proteção 150644

Photovoltaic systems require a reliable means of isolating the DC circuit for maintenance or emergency shutdown. The Eaton M22-SOL PV control switch-disconnector provides a robust, panel-mounted rotary switch rated for 230 V AC and 6 A, with one normally open and one normally closed contact, ensuring safe and controlled disconnection in solar applications.

Who is it for

Solar installers, panel builders, and maintenance technicians who need a compact, high-protection switch for photovoltaic control circuits. It suits environments where dust and water ingress are concerns, thanks to its IP67/IP69K front protection.

Main features

• Rotary actuator with 45° switching angle and two positions (ON/OFF)
• Contact configuration: 1 NO + 1 NC for flexible circuit integration
• Protective collar included to prevent accidental operation
• Panel cutout diameter: 22.5 mm, standard for M22 series
• Screw terminals for secure wiring
• Operating temperature range: -25 to +70 °C

Specifications

• Rated operational voltage: 230 V AC
• Rated operational current: 6 A
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 6 kV
• Degree of protection (front): IP67, IP69K
• Mounting type: Panel mount
• Actuator colour: Black
• Front bezel material: Plastic

Tips

Ensure the panel cutout is exactly 22.5 mm for a secure fit. The protective collar adds an extra layer of safety against unintended switching, making it ideal for public or semi-public installations.
