EATON P1-32/EA/SVB/N Interruptor principal 32A 3P+N paragem de emergência montagem à superfície 091079

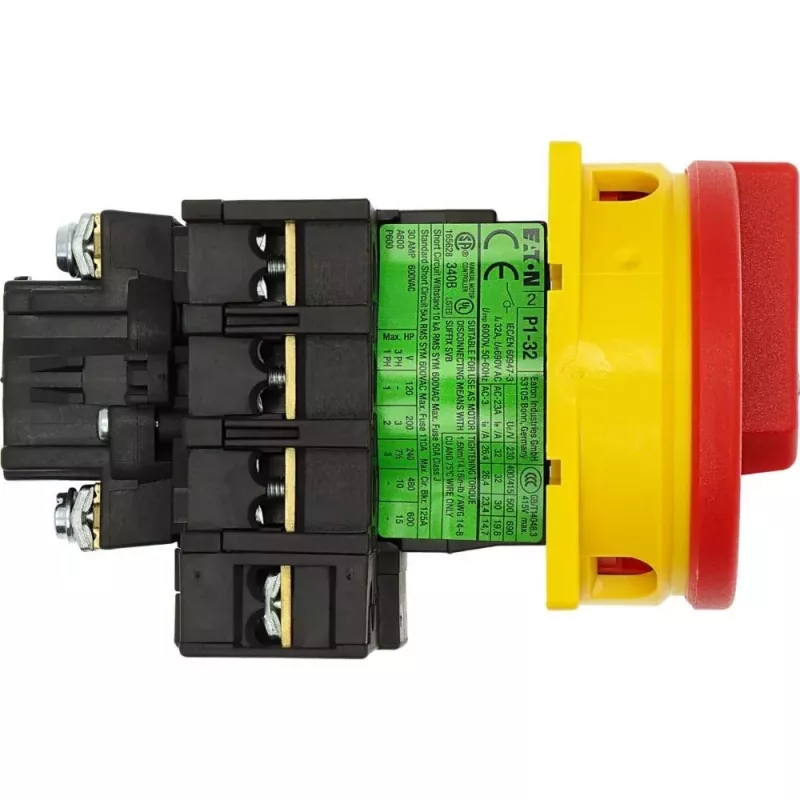

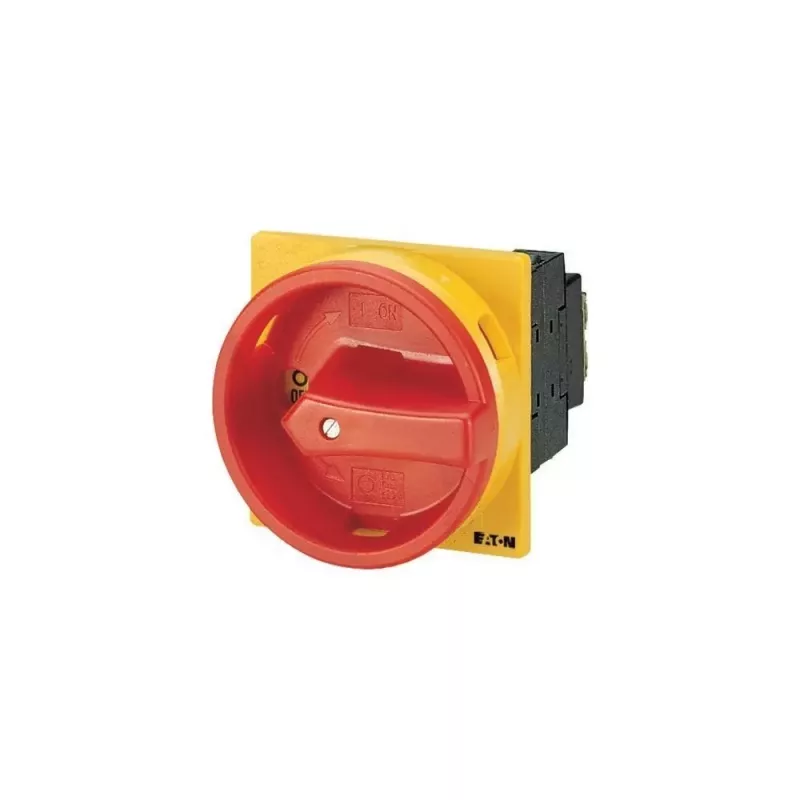

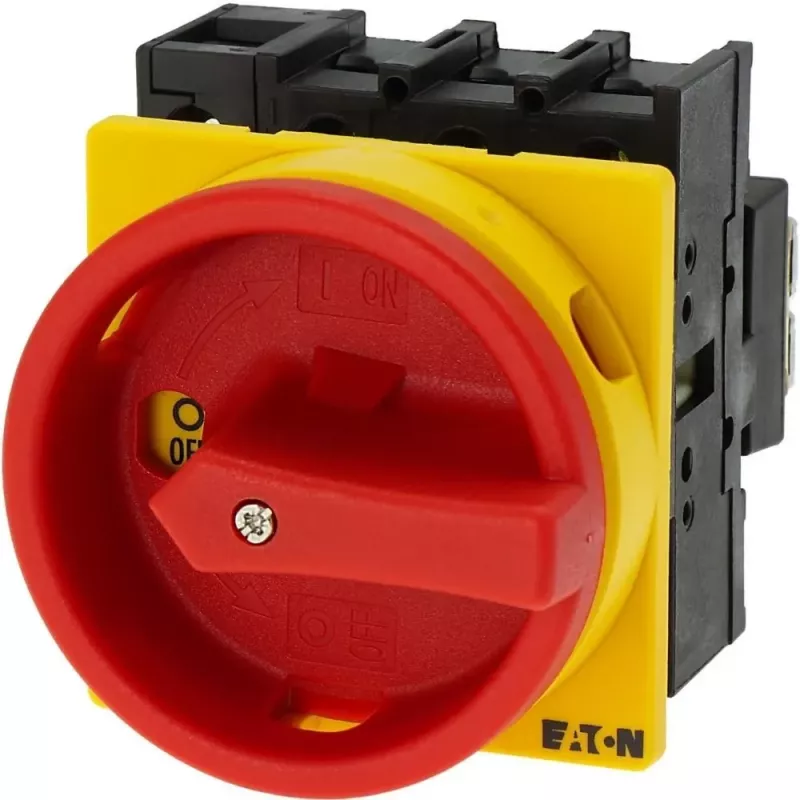

In industrial control panels and machine enclosures, this EATON main switch serves as a reliable disconnect and emergency stop device. The P1-32/EA/SVB/N is a 32 A, 3-pole + N switch with a red handle and yellow front plate, designed for flush mounting.

Key specifications

• Rated operational current: 32 A
• Number of poles: 3P+N (4-pole)
• Rated operational voltage: 690 V AC
• Mounting type: Flush mounting
• Handle colour: Red
• Front plate colour: Yellow
• Degree of protection (front): IP65

Why choose it

The switch offers a clear visual indication with its red handle and yellow plate, making it easy to identify as an emergency stop. Its robust construction and IP65 front protection ensure suitability for demanding industrial environments.

Ideal use cases

• Main switch in control panels
• Emergency stop function on machinery
• Disconnect switch for maintenance

Good to know

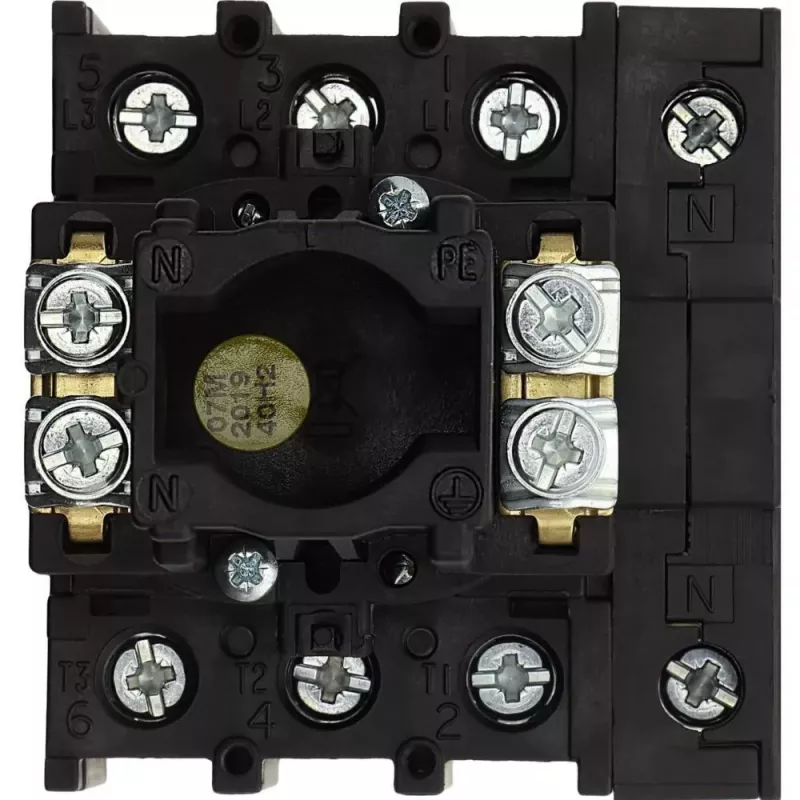

The switch features screw terminals and a maximum cable cross-section of 6 mm². It has a mechanical lifespan of over 100,000 operations.
