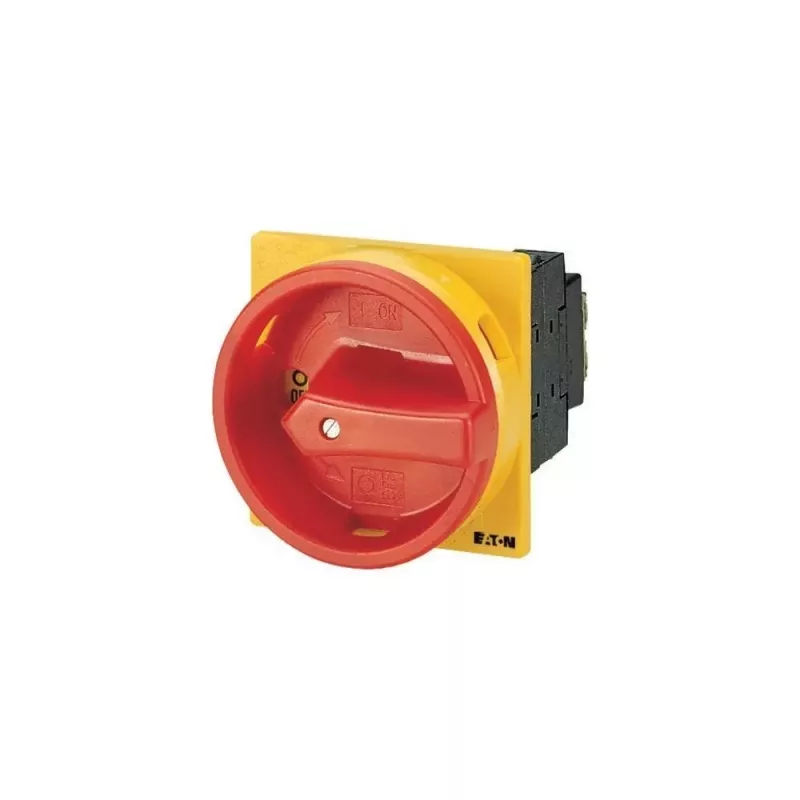

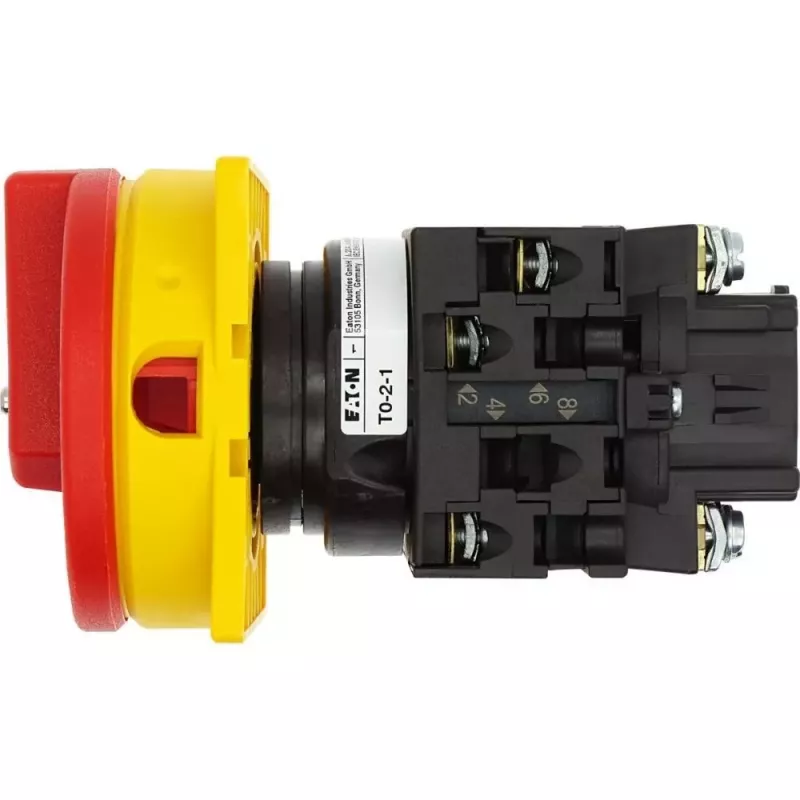

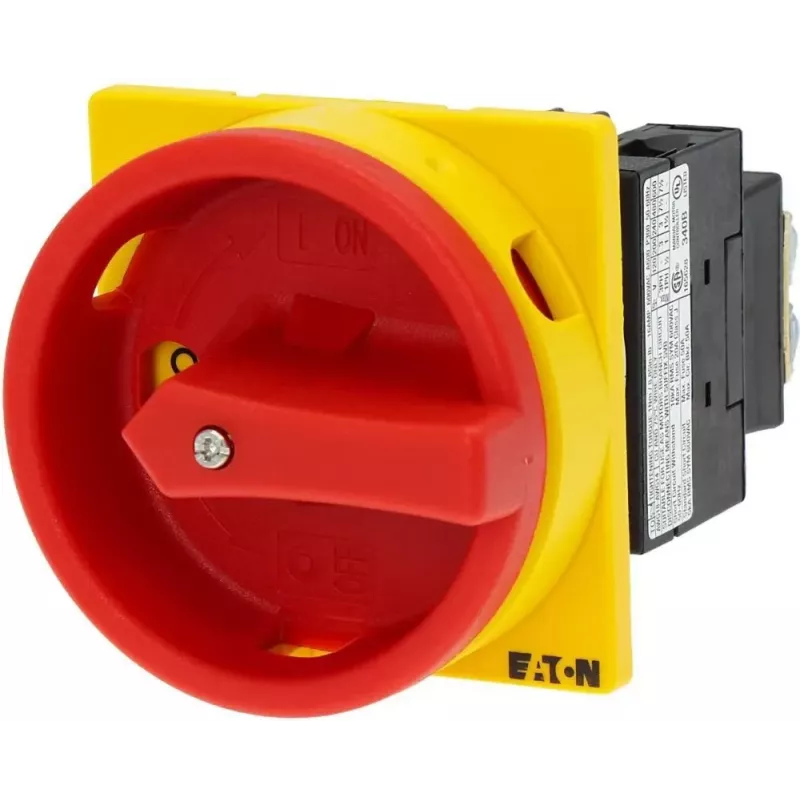

Eaton T0-2-1/EA/SVB interruptor de cames bloqueável 20 A 690 V 1 x 90° amarelo/vermelho 038873

In industrial control panels, safely isolating power during maintenance is critical. The Eaton T0-2-1/EA/SVB lockable cam switch provides a robust ON-OFF switching solution with a 90° throw, ensuring clear and reliable circuit interruption. Its red/yellow handle is designed for high visibility and can be locked in the OFF position with up to three padlocks, preventing accidental re-energization.

Who is it for

This cam switch is intended for panel builders, maintenance technicians, and industrial electricians who need a dependable, lockable disconnect switch for motor and control circuits up to 20 A. It suits applications requiring compliance with safety lockout/tagout procedures.

Main features

• 2-pole ON-OFF switching with 90° rotation angle.
• Rated operational current 20 A at AC-21A, 400 V; rated operational voltage up to 690 V AC.
• Lockable handle in red/yellow accepts up to 3 padlocks for safety isolation.
• Front panel mounting with front protection degree IP65.
• Screw terminals for secure wiring.

Specifications

• Switch type: Cam switch / Rotary switch
• Function: ON-OFF
• Number of poles: 2
• Rated operational current (Ie): 20 A (AC-21A, 400 V)
• Rated operational voltage (Ue): 690 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Switching angle: 90°
• Number of switching positions: 2
• Actuator type: Rotary handle
• Handle colour: Red / Yellow
• Lockable: Yes, with padlock (max. 3 padlocks)
• Mounting type: Front panel mounting
• Front protection degree: IP65
• Terminal protection degree: IP20

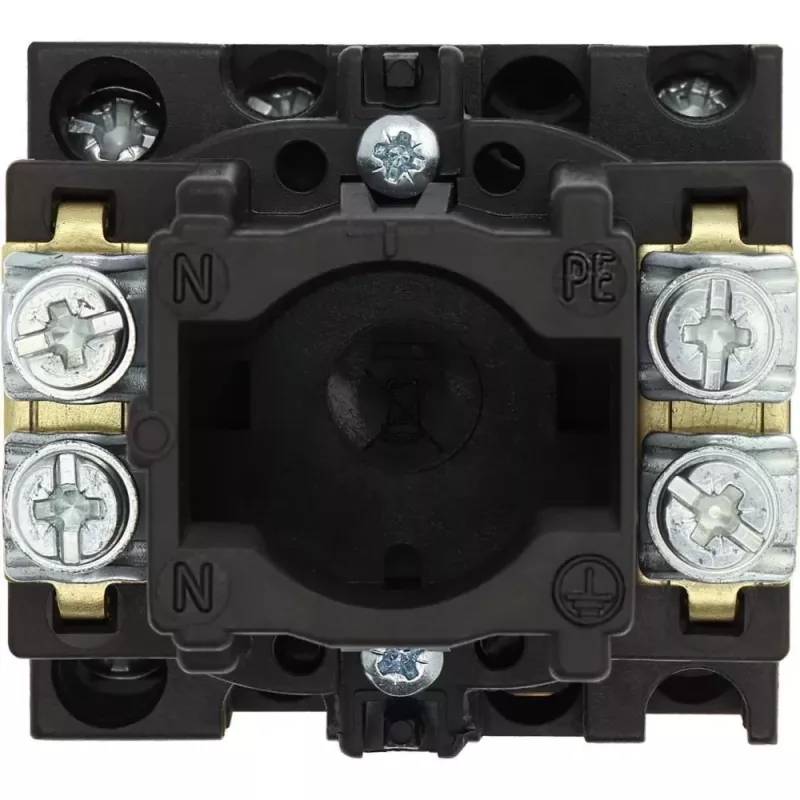

• Terminal type: Screw terminals
• Ambient operating temperature: -25 to +50 °C

Tips

For lockout/tagout procedures, use padlocks with shackle diameter up to 8 mm. Ensure the switch is mounted in a dry, vibration-free location to maintain IP65 front protection.
