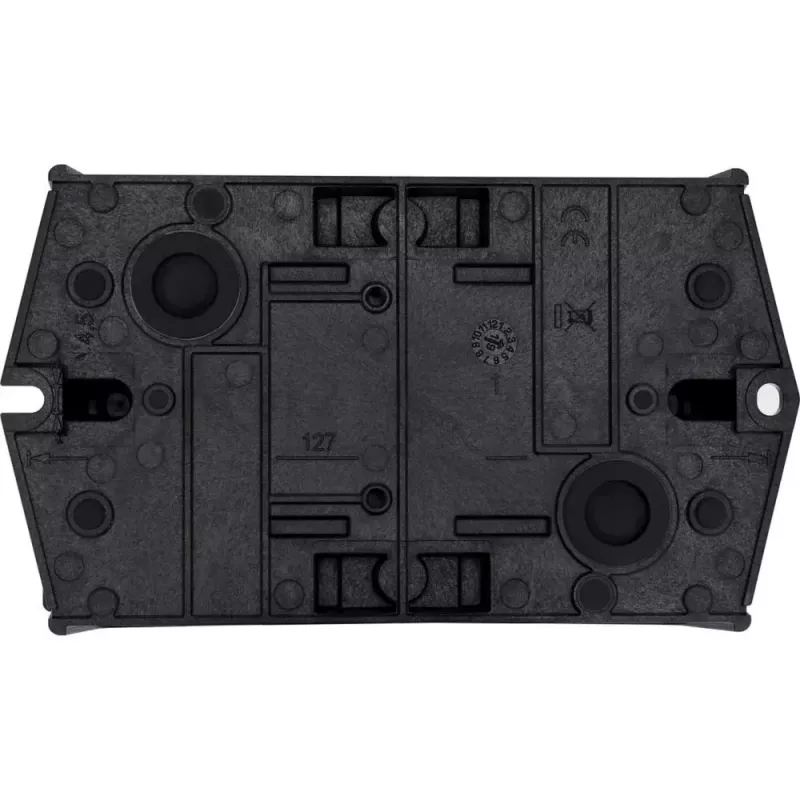

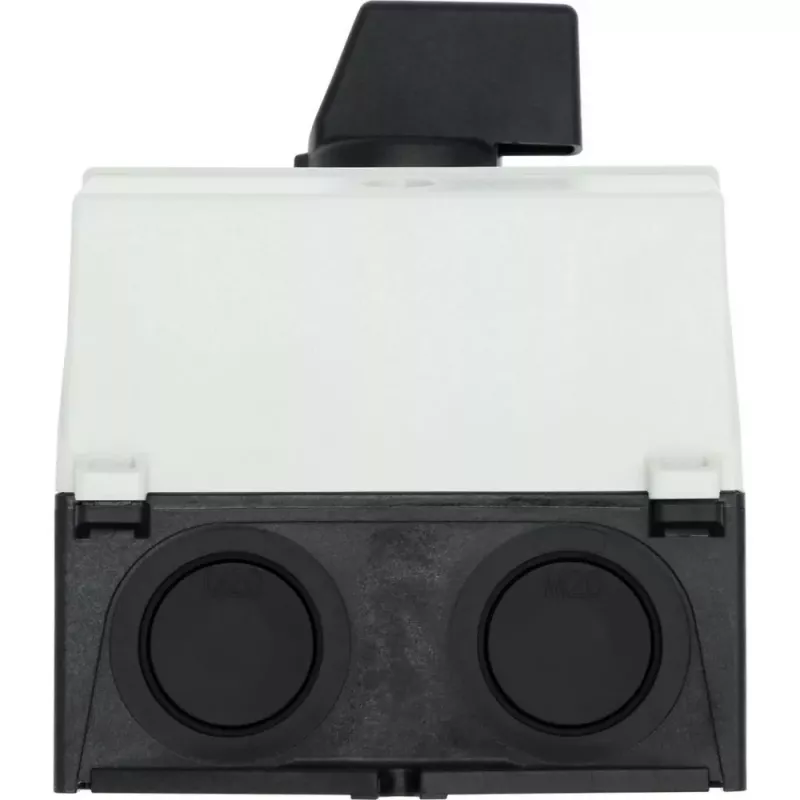

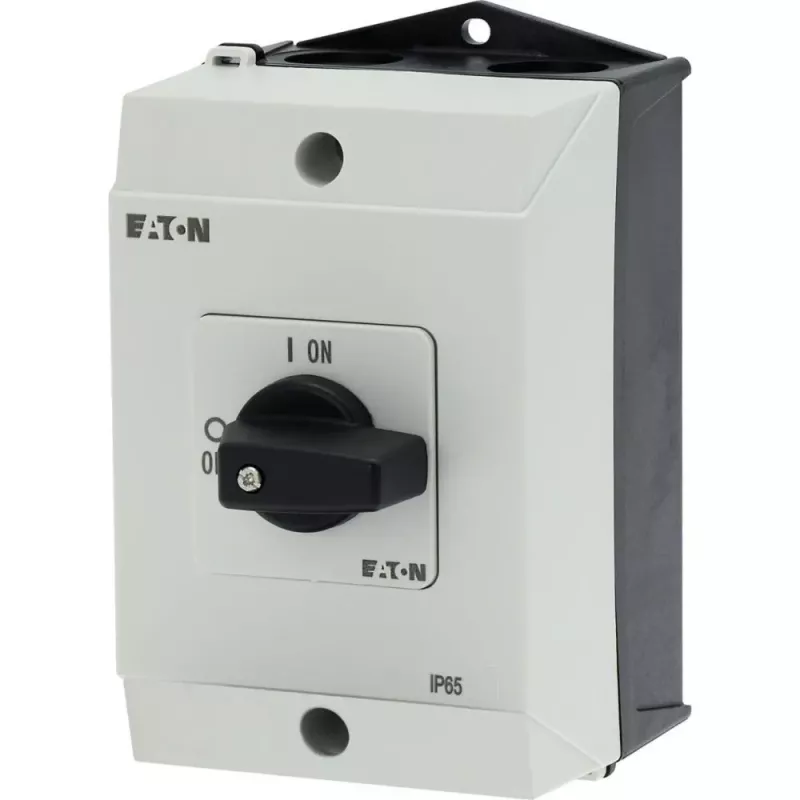

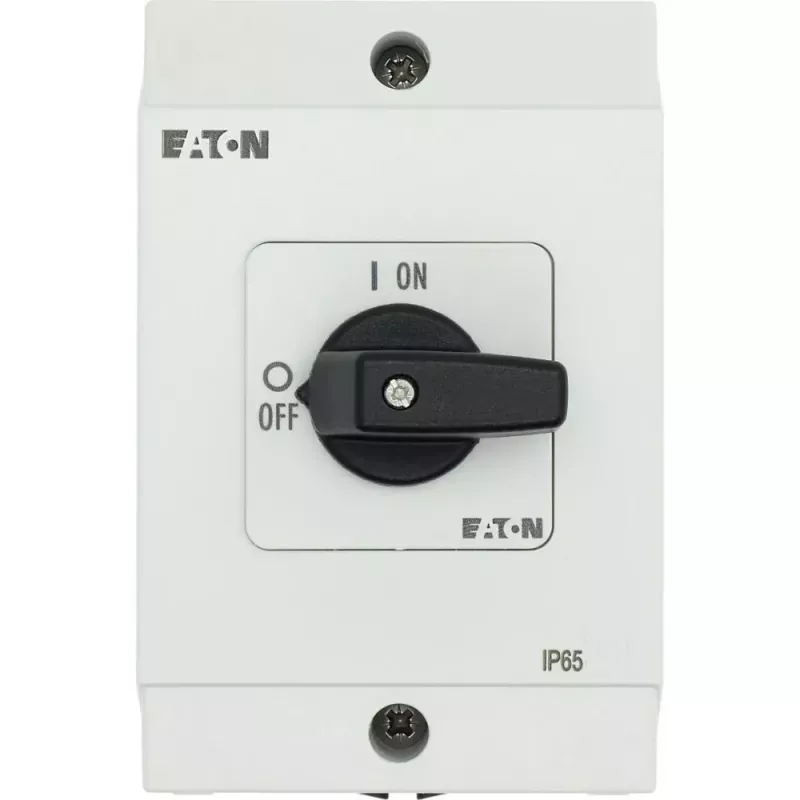

Eaton T0-2-1/I1 interruptor basculante 3 polos, 20A, IP65, cinzento/preto 207081

This 3-pole toggle switch from Eaton provides reliable ON-OFF control for industrial applications. With a rated operational current of 20 A at 500 V AC and a rated operational voltage of 690 V AC, it handles demanding electrical loads. The front-mounted design with a toggle lever actuator offers simple manual operation, while the IP65 front protection ensures resistance to dust and water jets. The grey front plate and black actuator provide clear visual distinction.

Advantages

The switch features a robust construction with a mechanical durability of over 0.5 million operations and an electrical durability of over 0.2 million operations, ensuring long service life. Screw terminals provide secure wiring, and the compact 48 x 48 mm front plate fits standard panel cutouts. It complies with IEC/EN 60947 and VDE 0660 standards for safety and performance.

Suitable for

• Industrial control panels
• Motor control circuits
• Power distribution systems
• Machine tools and equipment

Key specifications

• Number of poles: 3
• Switching function: ON-OFF
• Rated operational current: 20 A (500 V AC)
• Rated operational voltage: 690 V AC
• Protection degree (front): IP65
• Protection degree (terminals): IP20
• Mounting type: Front mounting
• Actuator type: Toggle lever
• Number of switching positions: 2
• Terminal type: Screw terminals
• Rated impulse withstand voltage: 6 kV
• Rated short-circuit current: 1 kA
• Ambient operating temperature: -25 to +50 °C
• Mechanical durability: > 0.5 x 10^6 operations
• Electrical durability: > 0.2 x 10^6 operations
• Front plate dimensions: 48 x 48 mm
• Actuator color: Black
• Front plate color: Grey

Recommendations

Ideal for industrial environments where reliable switching and protection against dust and water are required. Ensure proper panel cutout and wiring according to local regulations.
