Eaton ZSD-HKL/5X25/FS Terminal de derivação de linha principal 5x25 mm² 217217

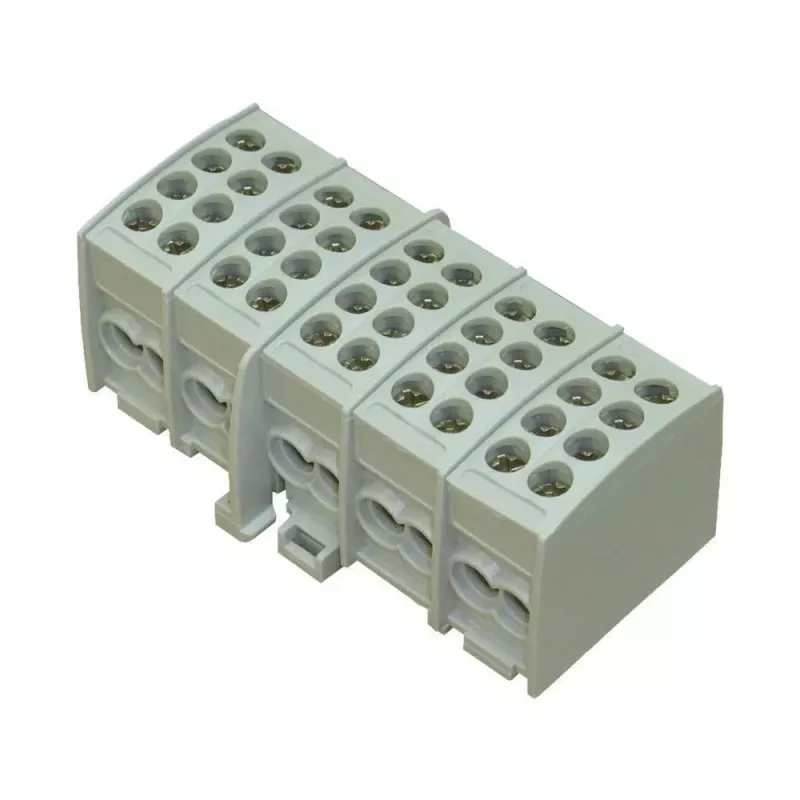

The Eaton ZSD-HKL/5X25/FS main line branch terminal block provides a compact, 5-pole connection point for branching from a main conductor to a branch conductor. Its screw terminals accept rigid and flexible conductors from 10 to 25 mm² on the main side and 1.5 to 25 mm² on the branch side, making it suitable for a wide range of wiring tasks. The grey thermoplastic housing mounts on a DIN rail or by screws, and the block is rated for 100 A and 400 V AC.

Highlights

• 5-pole main line branch terminal block
• Main conductor cross-section: 10–25 mm² (rigid/flexible)
• Branch conductor cross-section: 1.5–25 mm² (rigid/flexible)
• Rated current: 100 A, rated voltage: 400 V AC
• Screw terminal connection, DIN rail or screw mounting
• Housing material: thermoplastic, colour: grey

In daily use

Install the block on a DIN rail or screw it to a flat surface. Strip the main and branch conductors to the required length, insert them into the appropriate terminals, and tighten the screws. The clear terminal layout and generous wiring space simplify installation and maintenance in distribution boards and control panels.

Full specifications

• Number of poles: 5
• Main conductor cross-section (rigid): 10–25 mm²
• Main conductor cross-section (flexible): 10–25 mm²
• Branch conductor cross-section (rigid): 1.5–25 mm²
• Branch conductor cross-section (flexible): 1.5–25 mm²
• Rated current (In): 100 A
• Rated voltage (Un): 400 V AC
• Rated impulse withstand voltage (Uimp): 4 kV
• Mounting type: DIN rail / screw mounting
• Connection type: screw terminal
• Degree of protection: IP20
• Housing material: thermoplastic
• Colour: grey
• Pollution degree: 2
• Number of main connections per pole: 1
• Number of branch connections per pole: 1
• Standard: VDE 0603-2

Final note

The Eaton ZSD-HKL/5X25/FS offers a reliable and space-saving solution for main line branching in electrical installations.
