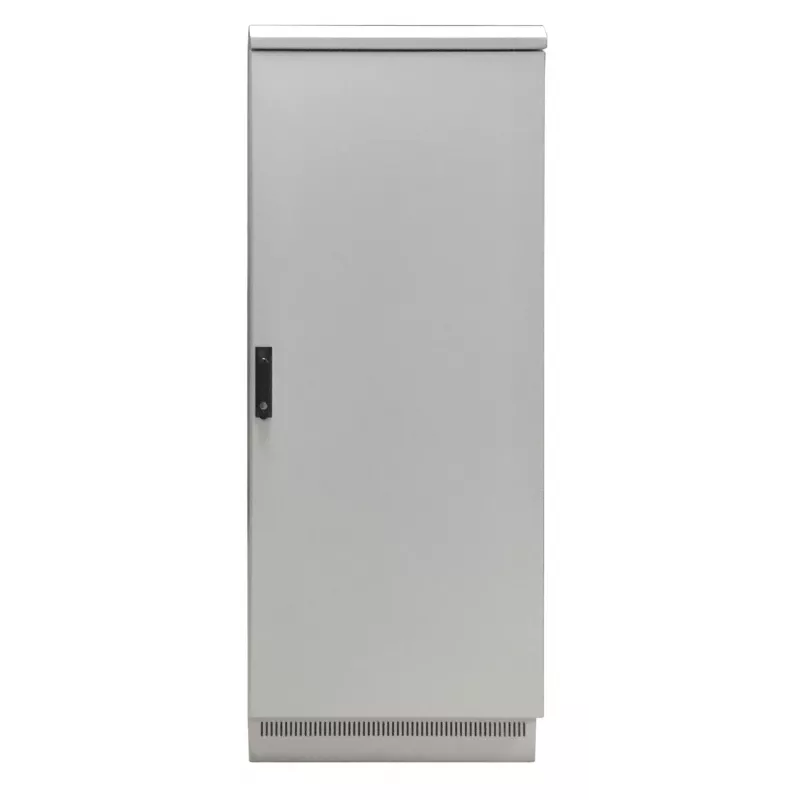

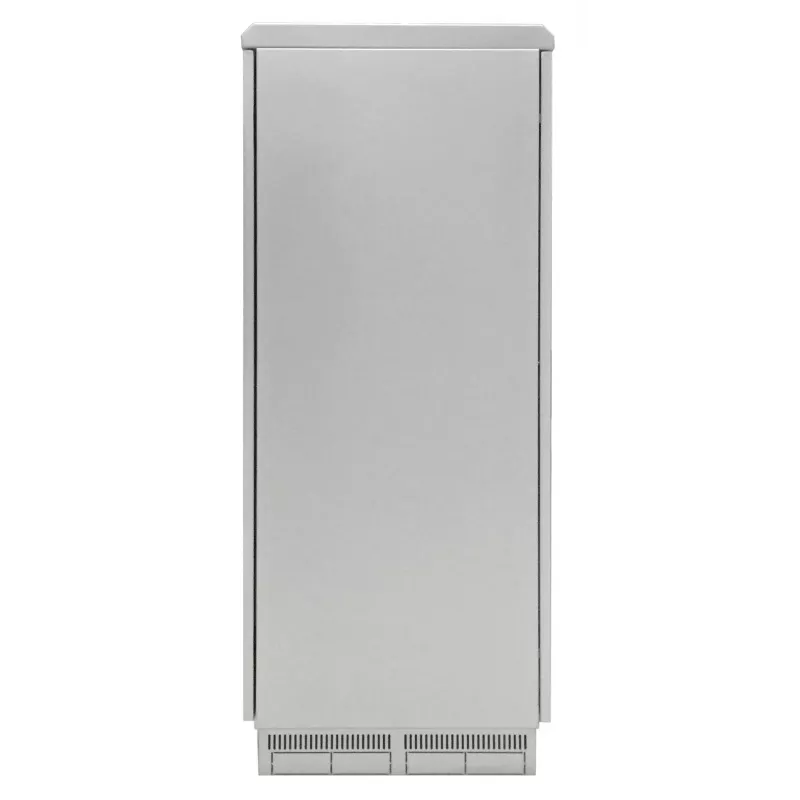

EFB ELEKTRONIK Armário de rede 19" 42U 800x1000 IP55 com base pré-montada RAL7035

Outdoor installations demand robust protection for sensitive networking equipment. The EFB ELEKTRONIK 19" Network Cabinet 42U 800x1000 IP55 with Pre-Assembled Plinth RAL7035 is built for such environments, offering a secure, weather-resistant enclosure for servers, switches, and patch panels. Its IP55 rating guards against dust and water jets, while the pre-assembled 100 mm plinth elevates the cabinet for added protection and easier cable management.

Key specifications

• 42U rack space for 19-inch equipment
• External dimensions: 800 mm width, 1000 mm depth, 2050 mm height including plinth
• IP55 ingress protection against dust and water jets
• Light grey powder-coated steel (RAL 7035)
• Static load capacity: 800 kg

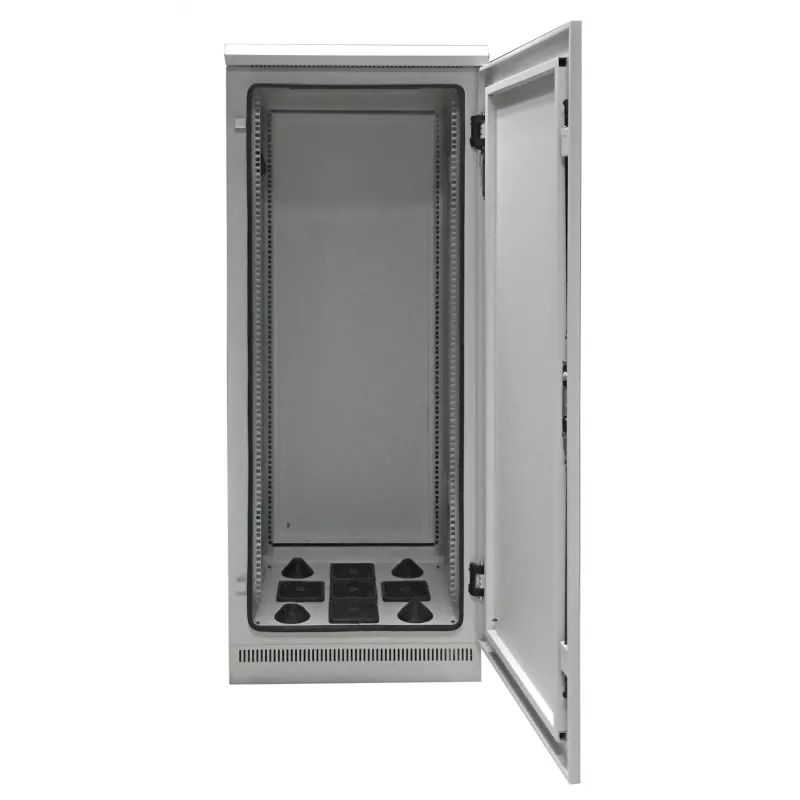

• Single front steel door with 3-point locking and profile half cylinder
• Door opening angle: 180°
• Fixed side panels

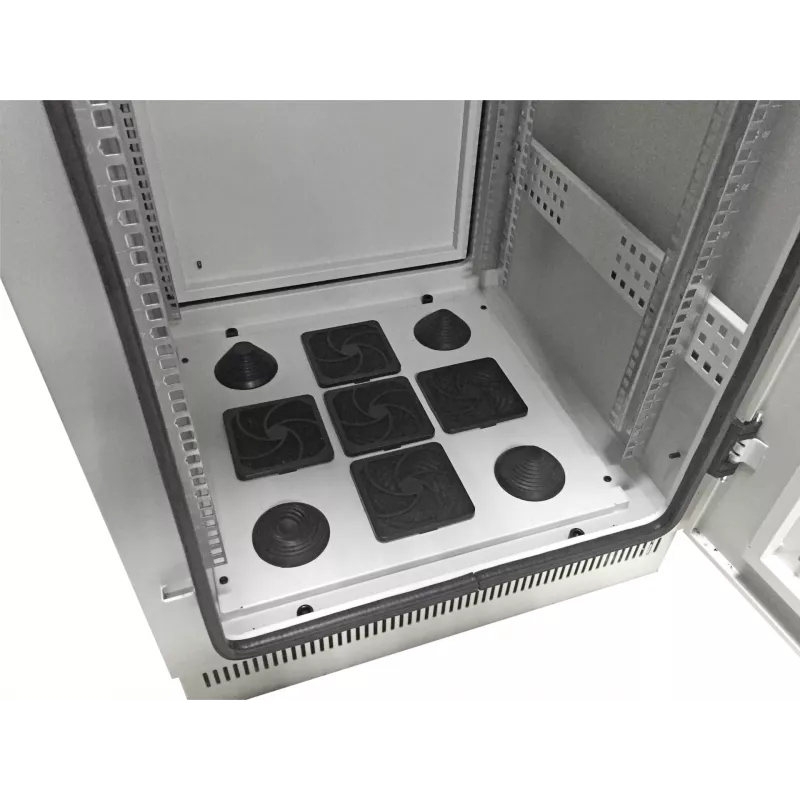

• Bottom cable entry with brush strip
• All parts earthed
• Compliant with RoHS and REACH

Why choose it

This cabinet is engineered for durability and security. The powder-coated steel construction withstands harsh conditions, and the 3-point locking system deters unauthorized access. The pre-assembled plinth simplifies installation and improves airflow. With an 800 kg load capacity, it supports heavy equipment without compromise.

Ideal use cases

• Outdoor telecom and network distribution points
• Industrial sites requiring dust and moisture protection
• Security camera and access control systems
• Remote installations needing reliable enclosures

Good to know

The cabinet's IP55 rating means it is protected against limited dust ingress and low-pressure water jets from any direction. The bottom brush strip allows clean cable entry while maintaining the seal. All metal parts are earthed for safety. The RAL 7035 light grey finish blends into most environments and resists corrosion.
