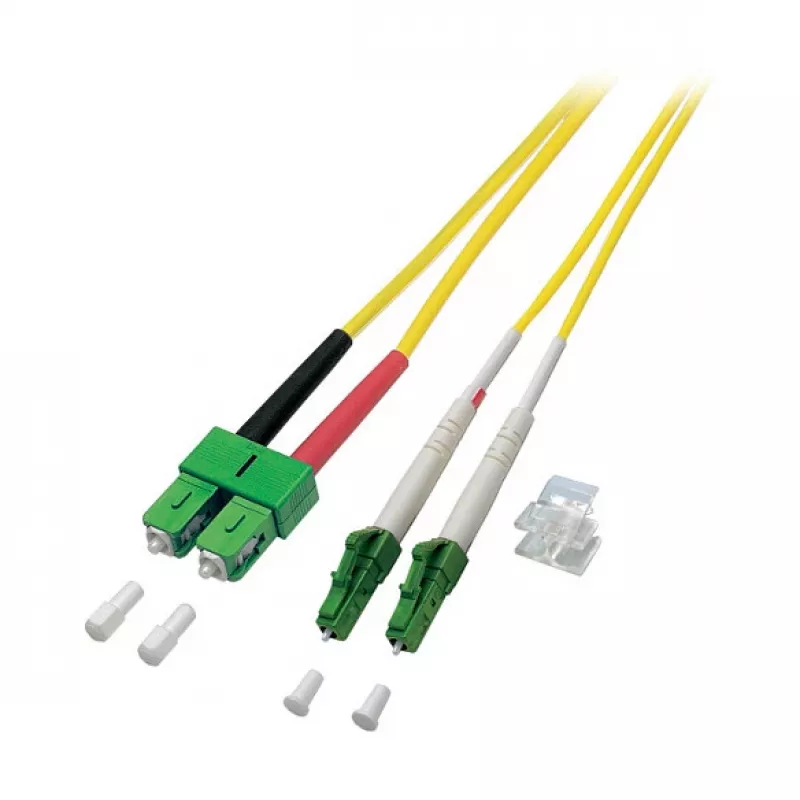

Cabo de patch duplex EFB LC/APC-SC/APC OS2 G652D 10m LSZH 2mm amarelo

The EFB Duplex Patch Cable LC/APC-SC/APC OS2 G652D 10m LSZH 2mm Yellow is a high-performance fiber optic patch cable designed for reliable single-mode data transmission. Engineered with premium components, this cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss below 0.3 dB and return loss greater than 60 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. The 2mm diameter cable is flexible yet durable, facilitating easy installation in tight spaces.

Suitable for

• Data center fiber optic patching
• Telecommunications networks
• FTTx (Fiber to the x) applications
• Local Area Networks (LAN) requiring single-mode connectivity

Key specifications

• Connector A: LC/APC
• Connector B: SC/APC
• Fiber Mode: Single-mode OS2 (ITU-T G.652.D)
• Core/Cladding: 9/125 µm
• Cable Length: 10 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 2 mm
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 60 dB (typical)
• Attenuation at 1310nm: < 0.35 dB/km
• Attenuation at 1550nm: < 0.25 dB/km
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate cable management to avoid bending beyond the minimum bend radius. This cable is compatible with standard LC/APC and SC/APC interfaces.
