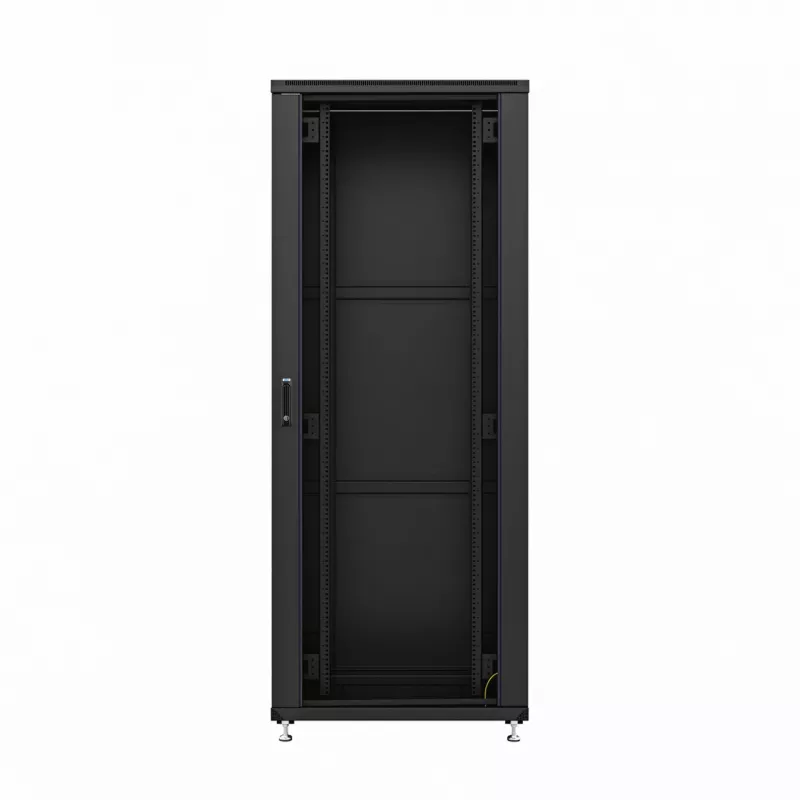

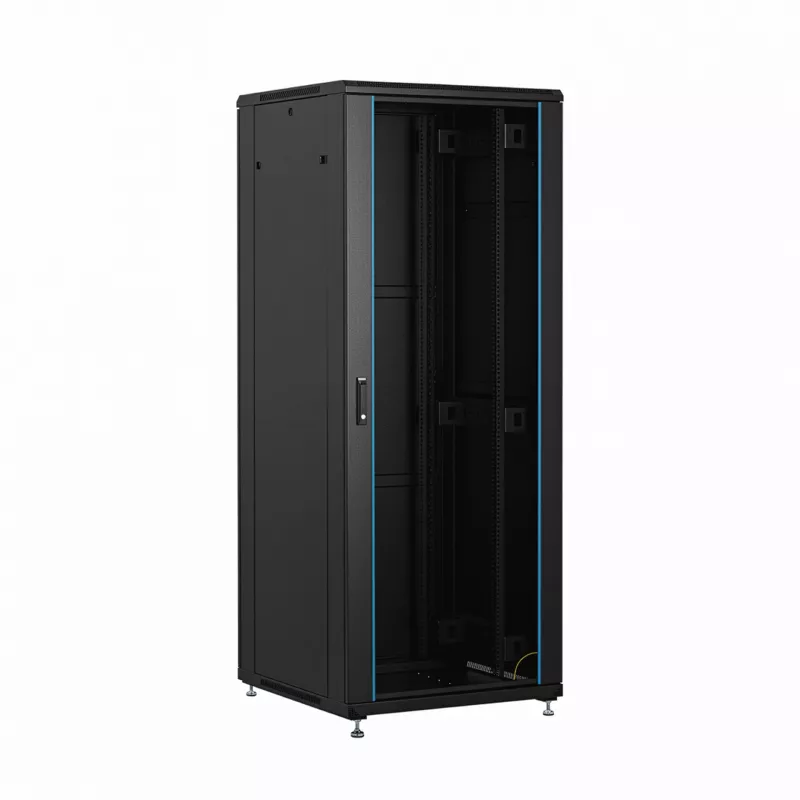

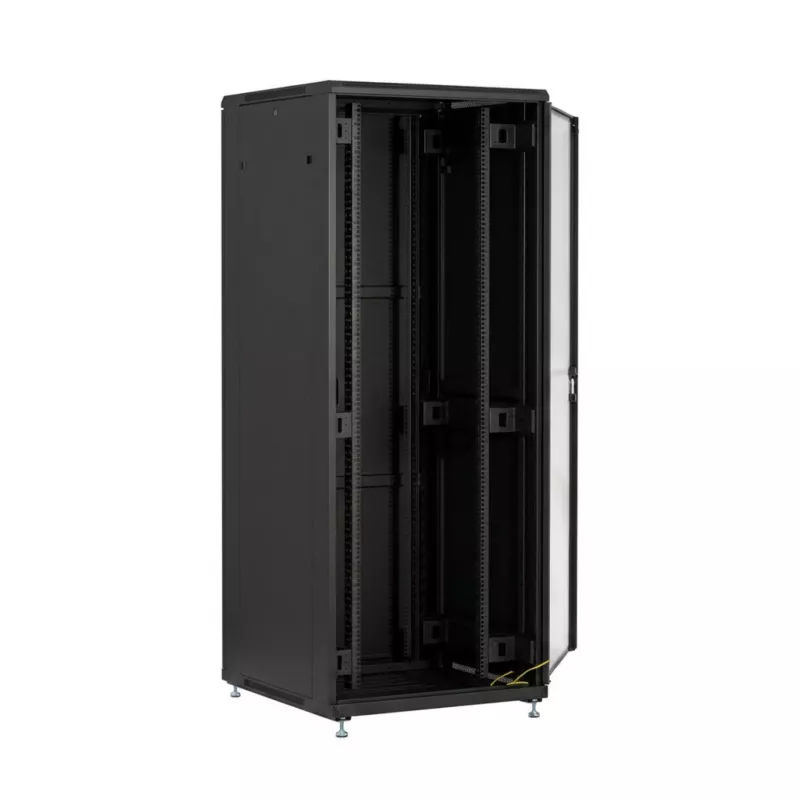

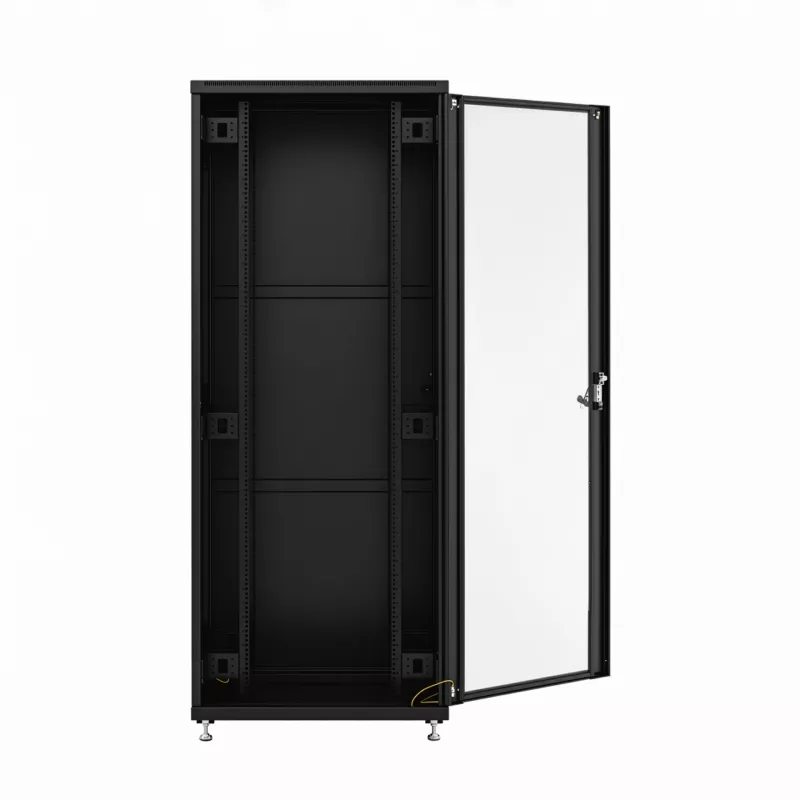

EFB armário de rede 19" PEL 42U 600x600mm RAL9005 (envio por transportadora)

The EFB 19" Network Cabinet PEL 42U 600x600mm RAL9005 is a high-quality, pre-assembled freestanding rack designed for professional network and server environments. With 42 rack units of space and a robust steel construction, this cabinet provides secure and organized housing for your 19-inch equipment. Its compact 600x600mm footprint makes it ideal for space-constrained locations while offering a static load capacity of up to 600 kg.

Advantages

This network cabinet combines durability, security, and ease of use. The lockable safety glass front door and lockable steel rear door ensure equipment protection, while removable side panels allow easy access for installation and maintenance. Adjustable depth mounting rails accommodate various equipment depths, and the integrated cable entry points with brush strips simplify cable management. The cabinet comes with adjustable leveling feet and heavy-duty castors for stability and mobility.

Suitable for

• Network switches, patch panels, and routers
• Server and storage devices in 19-inch format
• Data centers, server rooms, and IT closets
• Enterprise and SMB network infrastructure

Key specifications

• Rack Standard: 19-inch, 42U height
• External dimensions: 600mm width x 600mm depth x 2055mm height
• Color: RAL 9005 (Jet Black)
• Material: Steel
• Front door: Safety glass, lockable
• Rear door: Steel, lockable
• Side panels: Removable, lockable
• Mounting rails: 19-inch, adjustable depth
• Static load capacity: 600 kg
• Cable entry: Top and bottom with brush strips
• Protection class: IP20
• Construction: Pre-assembled
• Feet/Castors: Adjustable leveling feet and heavy-duty castors
• Ventilation: Passive, prepared for fan units
• Security: Multi-point locking system
• Compliance: RoHS, CE

Recommendations

For optimal cable management, pair this cabinet with EFB patch panels and cable management accessories. Ensure adequate ventilation by installing optional fan units if deploying high-density equipment.
