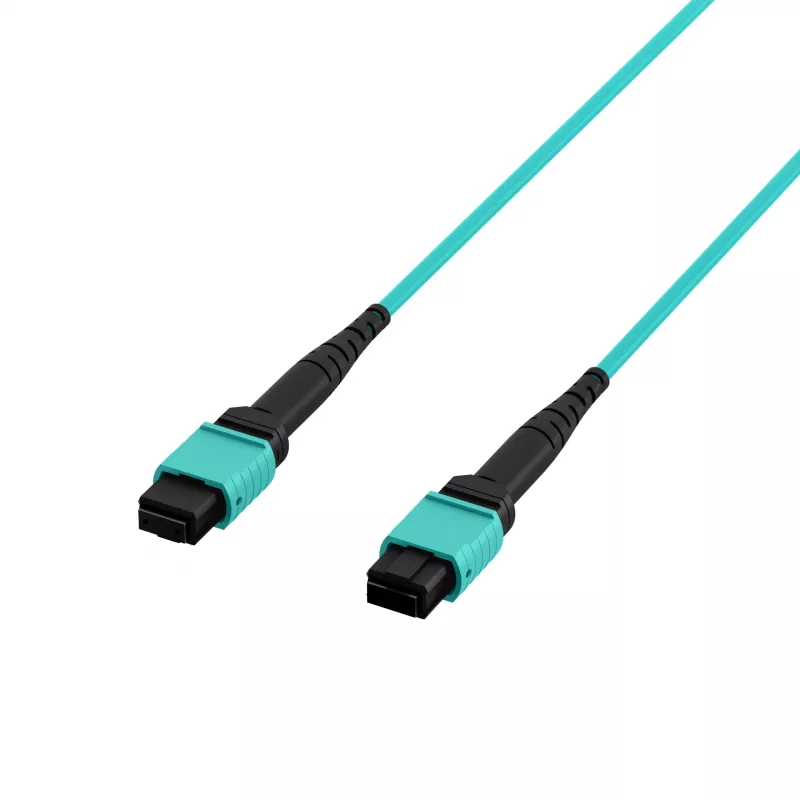

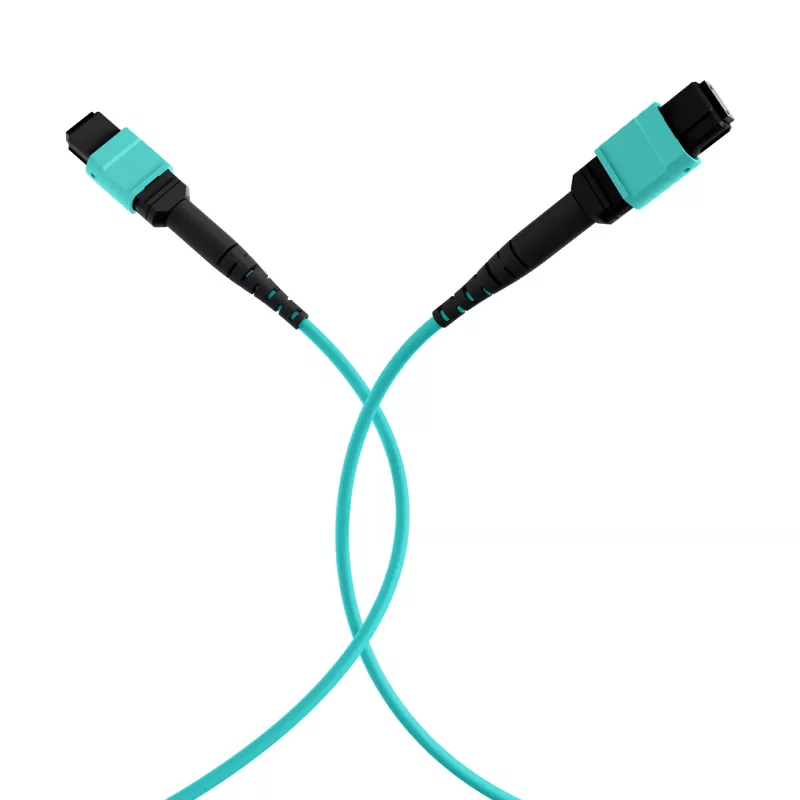

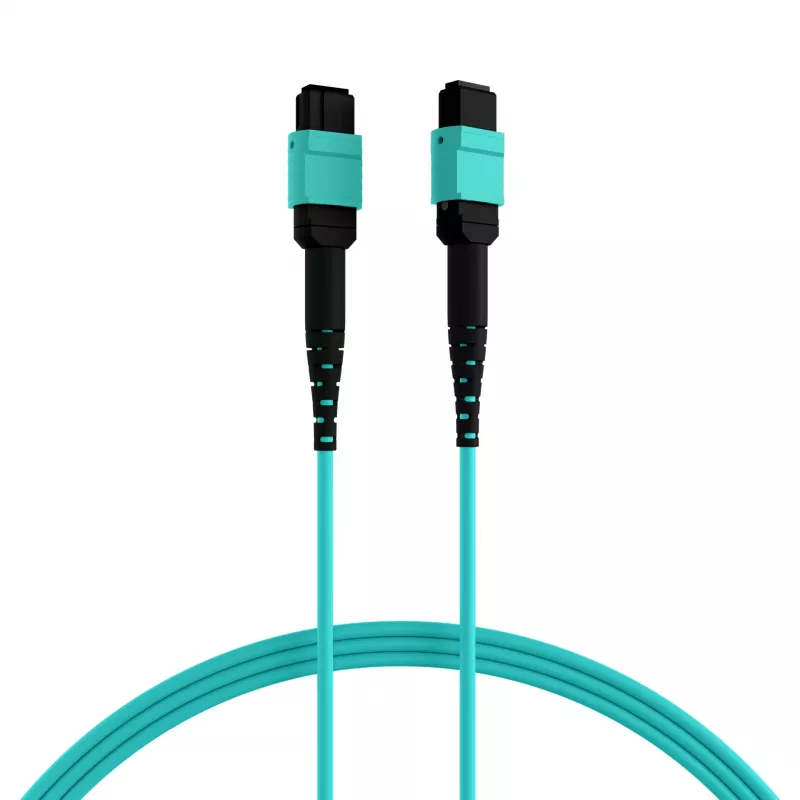

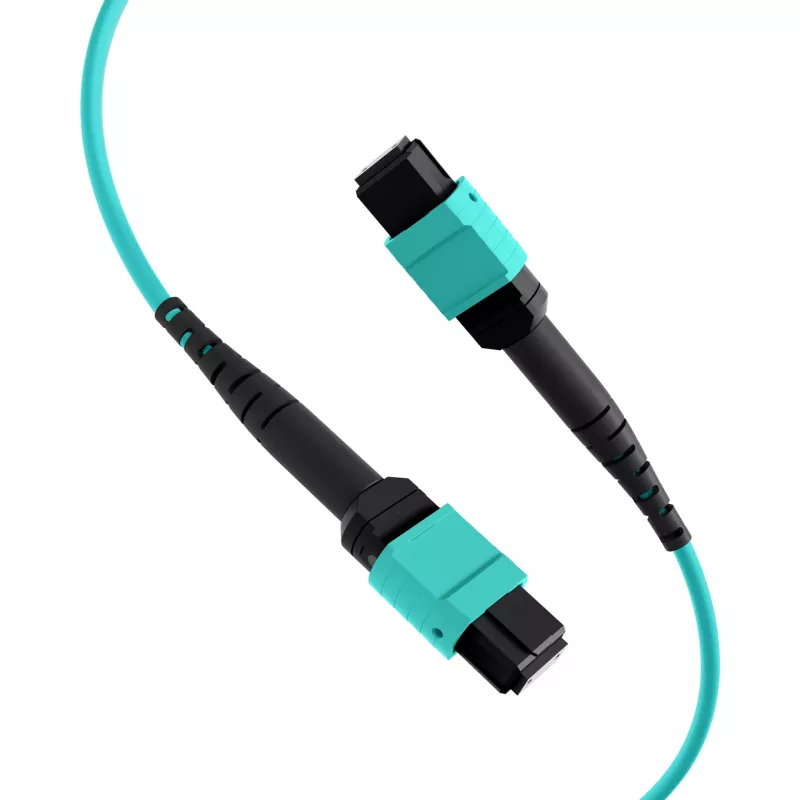

EFB cabo de patch MTP fêmea para MTP fêmea 12 fibras OM3, LSZH aqua, tipo A, 0,5 m MTPF12MTPFOM3-0,5-A

This 12-fiber MTP female to MTP female patch cable delivers high-density OM3 multimode connectivity in a compact 0.5 m length. Its aqua LSZH jacket and Type A polarity make it suitable for data center and SAN environments.

Advantages

The MTP connectors enable quick, high-density connections with 12 fibers in a single interface, reducing cabling bulk. The LSZH jacket emits low smoke and zero halogen, improving safety in enclosed spaces. OM3 fiber supports 10G Ethernet up to 300 meters, meeting modern network demands.

Suitable for

• Data centers with high-density fiber patching
• Storage area networks (SANs)
• 10G Ethernet backbone links
• Environments requiring low-smoke, halogen-free cabling

Key specifications

• Connector A: MTP Female (12-fiber)
• Connector B: MTP Female (12-fiber)
• Fiber type: Multimode OM3 (50/125 µm)
• Cable length: 0.5 m
• Jacket material: LSZH
• Jacket colour: Aqua
• Polarity: Type A (straight-through)
• Insertion loss: ≤ 0.35 dB
• Return loss: ≥ 20 dB
• Bandwidth: 1500 MHz·km (OFL) / 2000 MHz·km (EMB) at 850 nm
• Attenuation: ≤ 3.5 dB/km at 850 nm, ≤ 1.5 dB/km at 1300 nm
• Operating temperature: -20°C to +70°C

Recommendations

For best results, pair with OM3-compatible MTP cassettes or adapters. Ensure proper polarity alignment in your fiber infrastructure.
