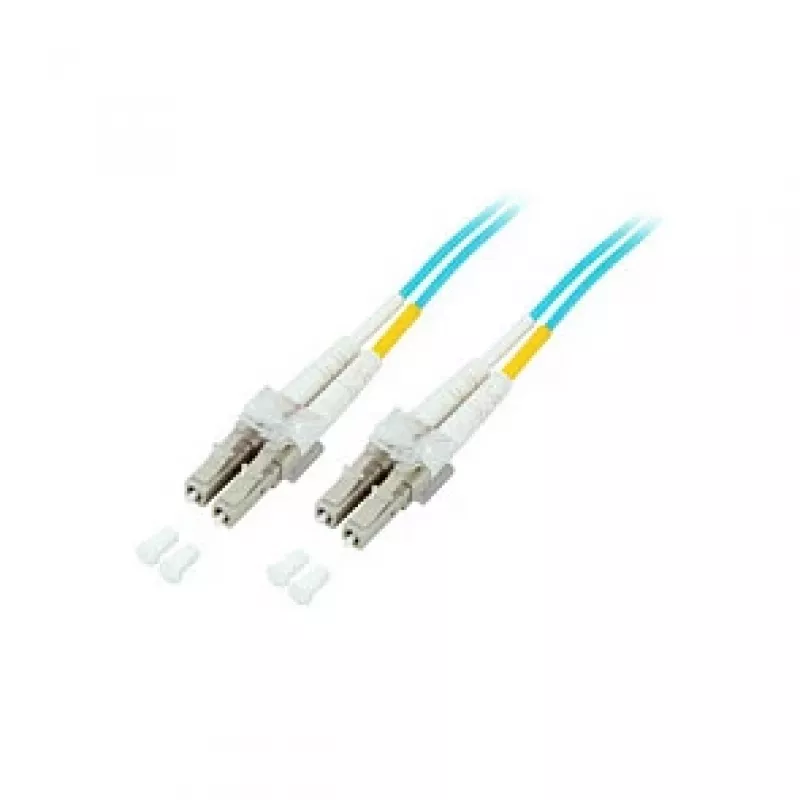

EFB-Elektronik Cabo de patch duplex ECOFIBER LC-LC OM3 20m LSZH 2mm aqua

The EFB-Elektronik ECOFIBER Duplex Patch Cable LC-LC OM3 20m LSZH 2mm Aqua is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. This duplex jumper features LC to LC connectors, multimode OM3 fiber grade, and a robust LSZH (Low Smoke Zero Halogen) jacket, ensuring safety and durability. With a length of 20 meters and a 2.0 mm diameter per simplex strand, it is ideal for structured cabling, data centers, and enterprise networks.

Advantages

This cable offers low insertion loss (<0.3 dB) and high return loss (>30 dB), ensuring minimal signal degradation and reliable performance. The OM3 fiber supports high-bandwidth applications up to 10 Gbps over distances, making it suitable for 10 Gigabit Ethernet and other high-speed protocols. The LSZH jacket reduces toxic smoke and fumes in case of fire, enhancing safety in confined spaces. The aqua color allows easy identification of OM3 cabling.

Suitable for

• Data center interconnects
• Enterprise network cabling
• Telecommunications infrastructure
• High-speed data transmission (10 Gbps and beyond)
• Fiber-to-the-desk applications

Key specifications

• Cable Type: Duplex Fiber Optic Patch Cable
• Connector Type A: LC
• Connector Type B: LC
• Fiber Mode: Multimode
• Fiber Grade: OM3
• Fiber Core Diameter: 50 µm
• Fiber Cladding Diameter: 125 µm
• Cable Length: 20 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Cable Diameter: 2.0 mm (per simplex strand)
• Polarity: A-B (Crossed)
• Insertion Loss (Max): <0.3 dB
• Return Loss (Min): >30 dB
• Attenuation at 850nm: 2.5 dB/km
• Attenuation at 1300nm: 0.8 dB/km
• Bandwidth at 850nm: 1500 MHz*km
• Bandwidth at 1300nm: 500 MHz*km
• Operating Temperature: -20°C to 70°C
• Standards Compliance: IEC 60793, TIA/EIA-568-C.3, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC fiber optic interfaces. Store in a clean, dry environment. For longer runs, consider OM4 or single-mode alternatives.
