EFB-Elektronik caixa de fusão LC 50/125µm OM3 extraível, 48 pigtails pré-terminados / 24 acopladores

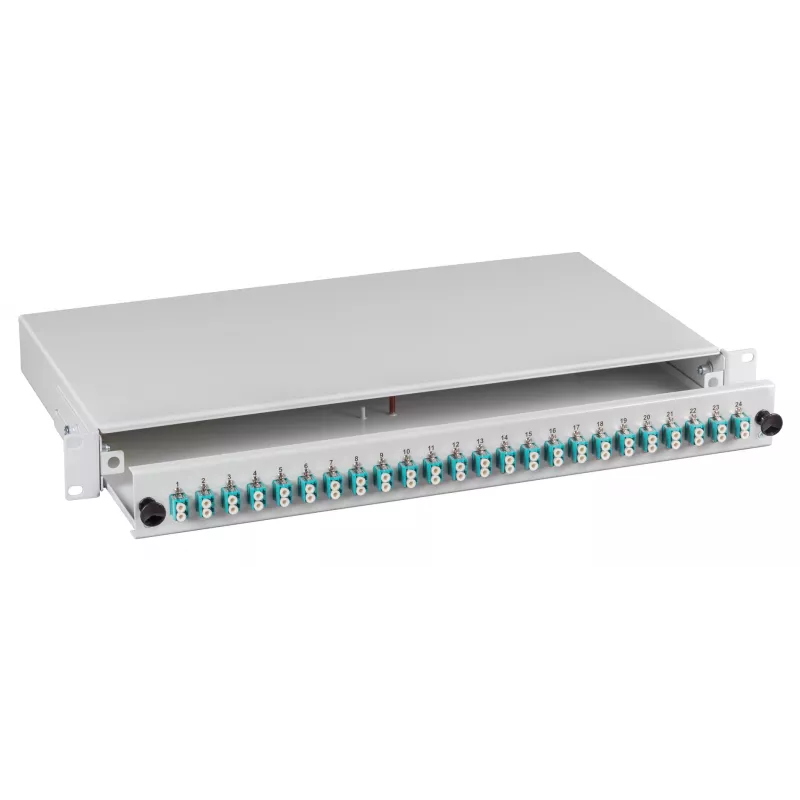

The EFB-Elektronik BA71901L48OM3 is a high-quality fiber optic splice box designed for professional network installations. This 1U 19-inch rack-mountable unit features an extractable sliding design for easy access and maintenance. It comes pre-terminated with 48 LC pigtails (50/125µm OM3 multimode) and 24 LC duplex adapters, providing a total fiber capacity of 48 fibers. The aqua-colored adapters indicate OM3 performance, ensuring optimal data transmission for high-speed networks.

Advantages

This splice box simplifies fiber management and termination, saving time and reducing installation errors. The extractable housing allows convenient access to pigtails and splices without disturbing other connections. Pre-terminated pigtails ensure consistent quality and low insertion loss (<0.3 dB). The compact 1U design maximizes rack space utilization.

Suitable for

• Data center fiber distribution
• Telecommunications networks
• LAN and SAN infrastructure
• FTTx applications

Key specifications

• Product Type: Fiber Optic Splice Box / Distribution Box
• Fiber Type: Multimode OM3
• Core/Cladding: 50/125 µm
• Connector Type: LC (pigtails), LC Duplex (adapters)
• Number of Pigtails: 48
• Number of Adapters: 24
• Total Fiber Capacity: 48
• Housing Design: Sliding / Extractable
• Mounting: 19-inch, 1U
• Pigtail Termination: Pre-assembled
• Adapter Color: Aqua (OM3)
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB

Recommendations

For optimal performance, use with OM3 patch cables and ensure proper cleaning of connectors before installation. This splice box is ideal for structured cabling systems requiring high-density fiber termination.
