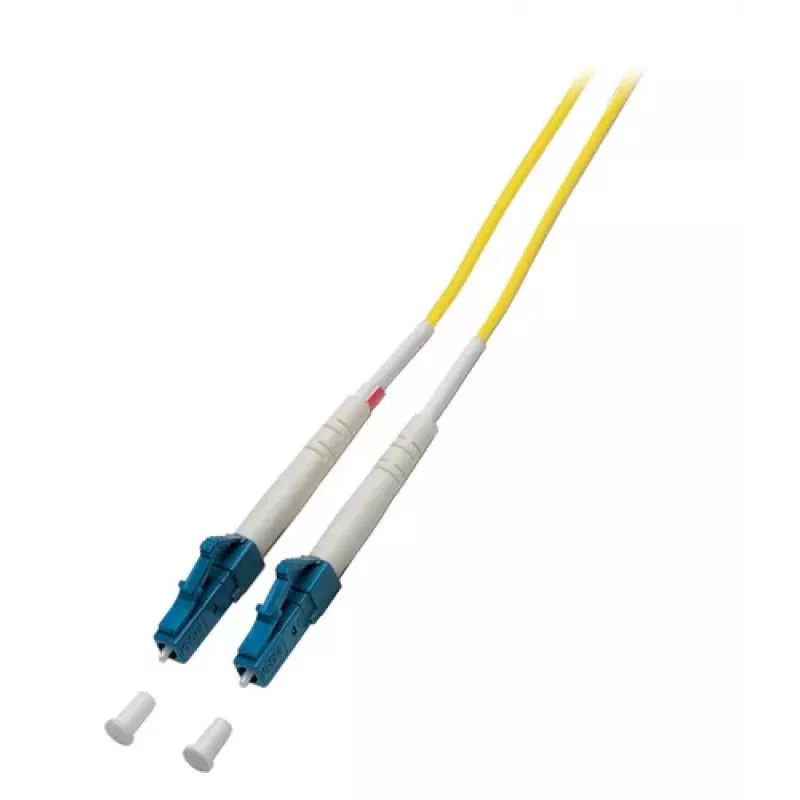

EFB-Elektronik ECOFIBER Cabo de Patch de Fibra Ótica Simplex LC-LC Monomodo, G.657.A2, 0,5 m, 2,0 mm, Amarelo, 9/125 µm

The EFB-Elektronik ECOFIBER Simplex LC-LC Fiber Optic Patch Cable is a high-quality, bend-insensitive single-mode cable designed for reliable data transmission in data centers, LAN networks, FTTx, and telecommunication applications. With a length of 0.5 meters and a compact 2.0 mm diameter, this cable offers excellent flexibility and space-saving installation. The yellow jacket ensures easy identification, while the LSZH (Low Smoke Zero Halogen) material provides enhanced safety in case of fire.

Advantages

This patch cable features ITU-T G.657.A2 fiber standard, which allows for tighter bends without signal loss, making it ideal for installations in confined spaces. The LC to LC connectors with UPC polish ensure low insertion loss (≤0.3 dB) and high return loss (≥50 dB), guaranteeing optimal performance. The cable is RoHS and CE compliant, meeting strict environmental and safety standards.

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Fiber to the x (FTTx) deployments
• Telecommunication networks
• High-speed single-mode fiber connections

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Single-mode
• Fiber Mode: Simplex
• Connector Type A: LC
• Connector Type B: LC
• Fiber Standard: ITU-T G.657.A2 (Bend-insensitive)
• Fiber Core/Cladding Diameter: 9/125 µm
• Cable Length: 0.5 m
• Cable Diameter: 2.0 mm
• Jacket Color: Yellow
• Connector Polish: UPC (Ultra Physical Contact)
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 50 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius: 7.5 mm
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC interfaces and is suitable for both indoor and protected outdoor environments.
