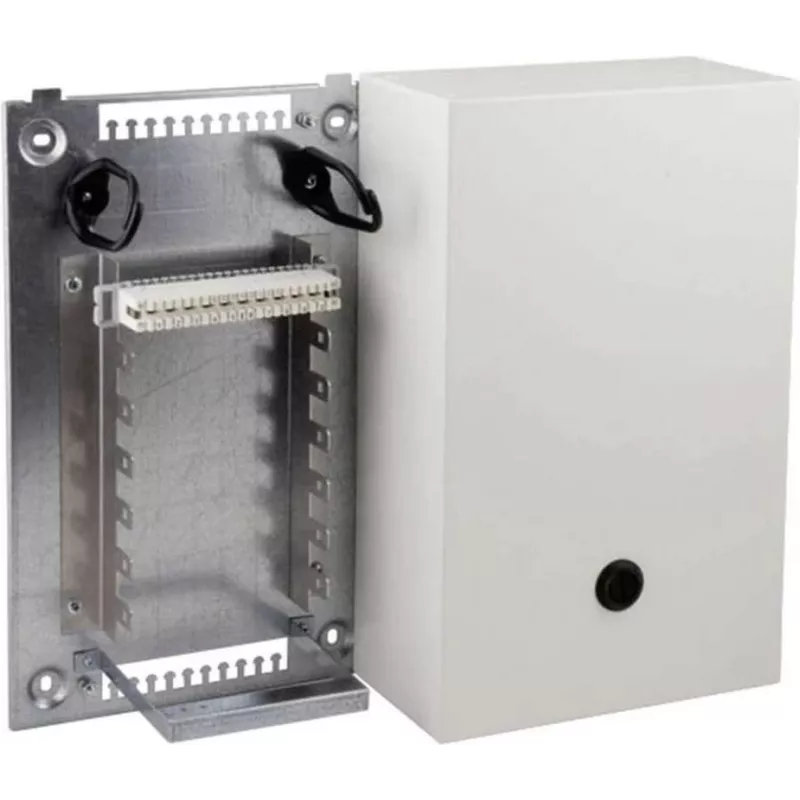

EFB-Elektronik VKA2 caixa de distribuição de fibra ótica com placa de base e kit de montagem VKA para 10 portas DA, montagem na parede, cinzento-claro 46017.1V10

Managing fiber optic connections in FTTH and FTTB networks requires a reliable, compact enclosure that protects splices and adapters while allowing easy access. The EFB-Elektronik VKA2 housing provides a robust solution for floor distributors and building entry points, accommodating up to 10 distribution access ports and 20 splices in a wall-mountable unit.

Who is it for

This housing is intended for network installers and technicians deploying fiber to the home or building. It suits indoor and protected outdoor environments where a secure, space-saving distribution point is needed.

Main features

• Capacity for 10 distribution access ports and up to 20 splices
• Wall-mount design with integrated cable management and strain relief
• PC/ABS blend construction, UV-resistant, light grey (RAL 7035)
• IP54 ingress protection for dust and water splash resistance
• Includes housing, base plate, VKA mounting kit, splice cassette, and pigtail holder
• Multiple cable entries with grommets for feeder and drop cables
• Screw lock for secure closure
• Operating temperature range: -20°C to +60°C
• Flammability rating UL94-V0

Specifications

• Product Type: Fiber Optic Distribution Housing / Enclosure
• Application: FTTH, FTTB, Floor Distributor, Building Entry Point
• Capacity: 10 Distribution Access (DA) Ports
• Splice Capacity: Up to 20 splices
• Mounting Type: Wall Mount
• Material: PC/ABS blend, UV-resistant
• Ingress Protection (IP) Rating: IP54
• Colour: Light Grey (RAL 7035)
• Locking Mechanism: Screw lock
• Operating Temperature: -20°C to +60°C
• Flammability Rating: UL94-V0

Tips

Ensure the mounting surface is flat and stable. Use appropriate cable glands or grommets to maintain the IP54 rating. For outdoor use, install in a protected location away from direct sunlight and heavy rain.
