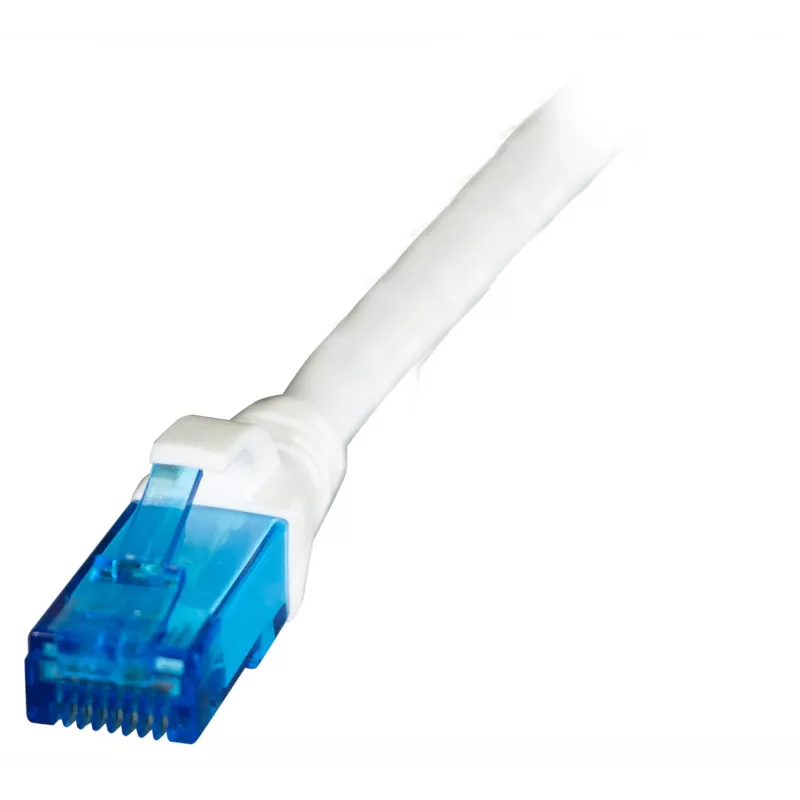

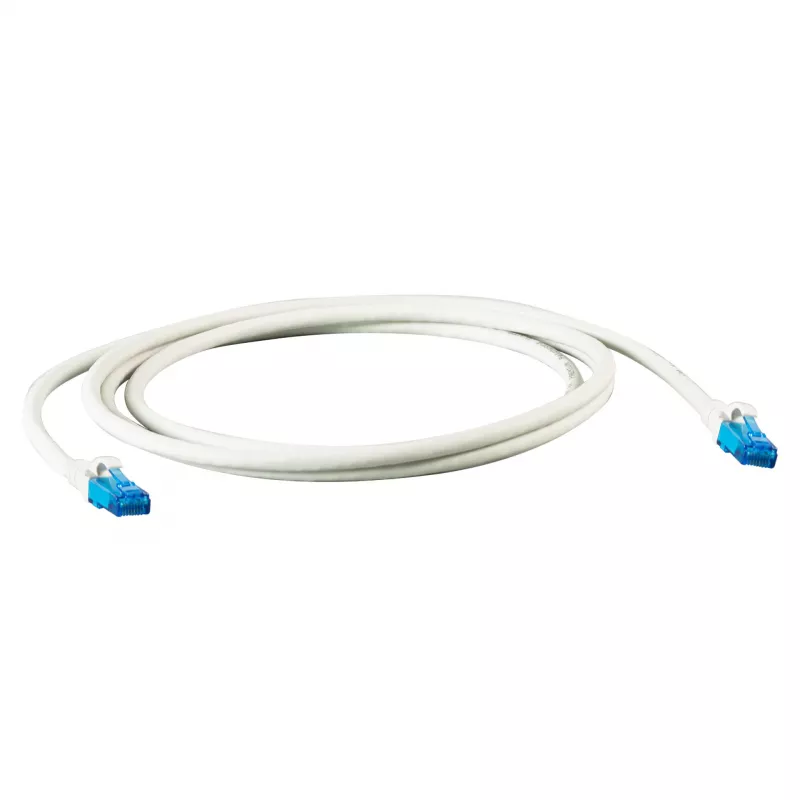

EFB Elektronik IPK-6A-U-HFR-WS-1000 Cabo de rede Cat6a U/UTP 10 m branco

The EFB Elektronik IPK-6A-U-HFR-WS-1000 is a high-performance Cat6a U/UTP patch cable designed for reliable 10 Gigabit Ethernet connections. With a length of 10 meters and a sleek white LSZH jacket, this cable is ideal for structured cabling in data centers, offices, and home networks where low smoke and zero halogen properties are required.

Advantages

This patch cable offers exceptional bandwidth of 500 MHz, supporting 10GBASE-T networks. The stranded copper conductors (AWG 26/7) provide flexibility and durability, while the gold-plated RJ-45 connectors (50µm) ensure optimal signal transfer and corrosion resistance. The molded snagless boot protects the locking tab during installation and removal.

Suitable for

• 10 Gigabit Ethernet (10GBASE-T) networks
• Data center patching
• High-speed office LAN connections
• Home network upgrades
• Applications requiring LSZH (Low Smoke Zero Halogen) cables

Key specifications

• Cable Type: Patch Cable
• Category: Cat6a (Class EA)
• Shielding: U/UTP (Unshielded Twisted Pair)
• Length: 10 m
• Connectors: RJ-45 Male to RJ-45 Male
• Connector Plating: Gold-plated (50µm)
• Conductor: Copper, AWG 26/7 Stranded
• Jacket Material: LSZH
• Colour: White
• Bandwidth: 500 MHz
• Data Transfer Rate: 10 Gbps
• Wiring Standard: TIA/EIA 568B
• Boot Type: Molded, Snagless
• Number of Pairs: 4 Twisted Pairs
• Outer Diameter: 6.2 mm
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Fire Performance: IEC 60332-1-2
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance in high-speed networks, pair this cable with compatible Cat6a switches and patch panels. Ensure proper cable management to maintain signal integrity.
