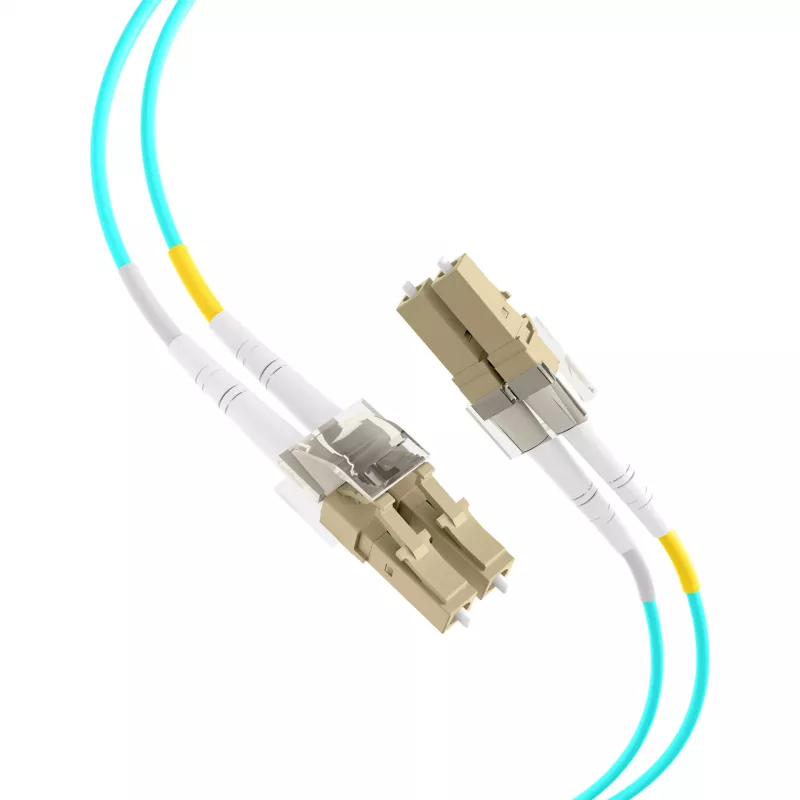

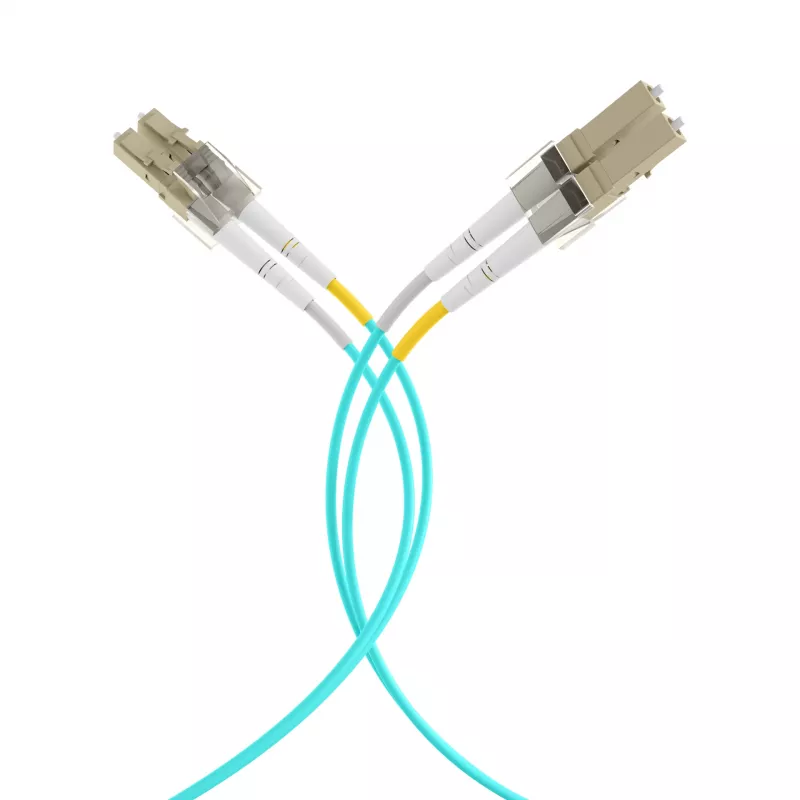

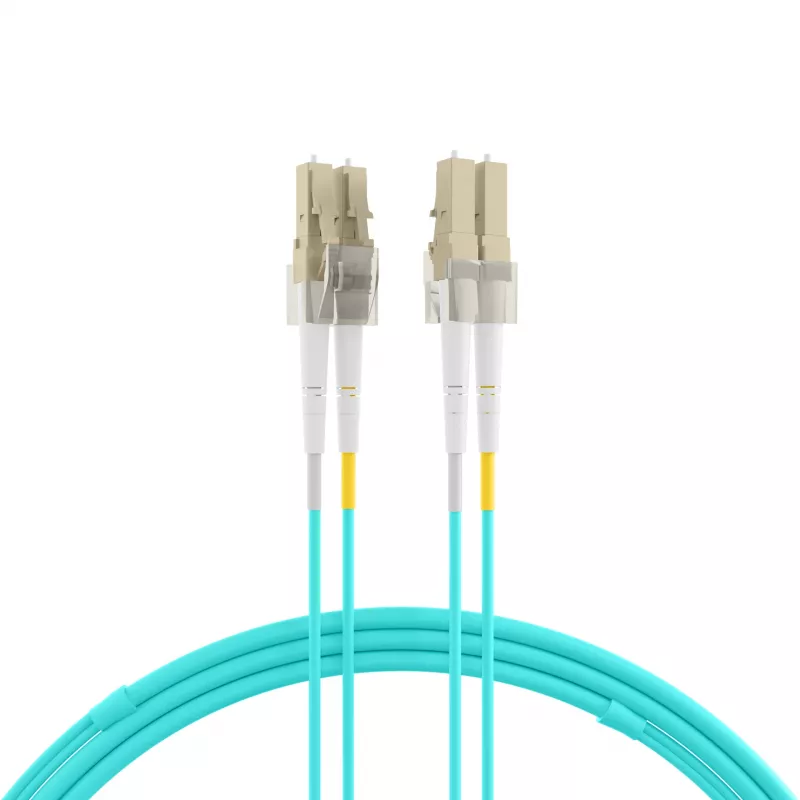

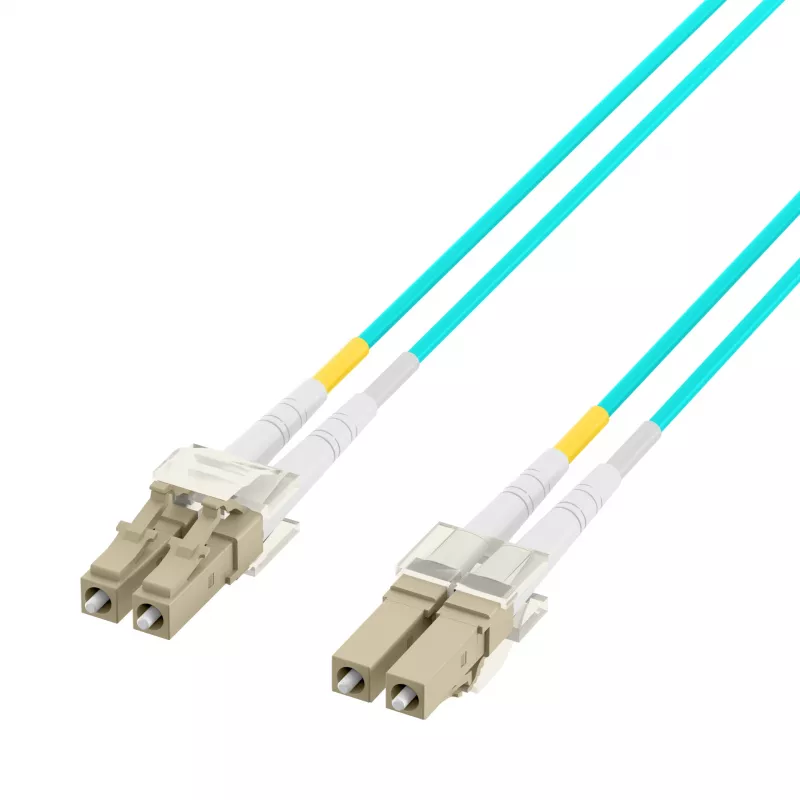

EFB Elektronik IPL-DF-LCULCU-3-0100 - 1 m - OM3 - LC duplex - água

The EFB Elektronik IPL-DF-LCULCU-3-0100 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With OM3 multimode fiber and LC duplex connectors, this 1-meter cable supports 10 Gigabit Ethernet and beyond, making it ideal for data centers, enterprise networks, and high-speed applications.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring minimal signal degradation and reliable connectivity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. The aqua-colored jacket allows for easy identification of OM3 fiber infrastructure.

Suitable for

• Data center patching and cross-connects
• 10GbE, 40GbE, and 100GbE network links
• Fiber-to-the-desk applications
• High-speed storage area networks (SAN)

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Connectors: LC Duplex to LC Duplex
• Length: 1 meter (3.28 feet)
• Core/Cladding: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Aqua
• Number of Fibers: 2 (Duplex)
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 30 dB (typical)
• Attenuation at 850nm: 3.5 dB/km
• Attenuation at 1300nm: 1.5 dB/km
• Bandwidth at 850nm: 1500 MHz*km
• Bandwidth at 1300nm: 500 MHz*km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OM3-compatible transceivers and ensure clean fiber end-faces before connection. This cable is suitable for indoor installations where low smoke and halogen-free materials are required.
