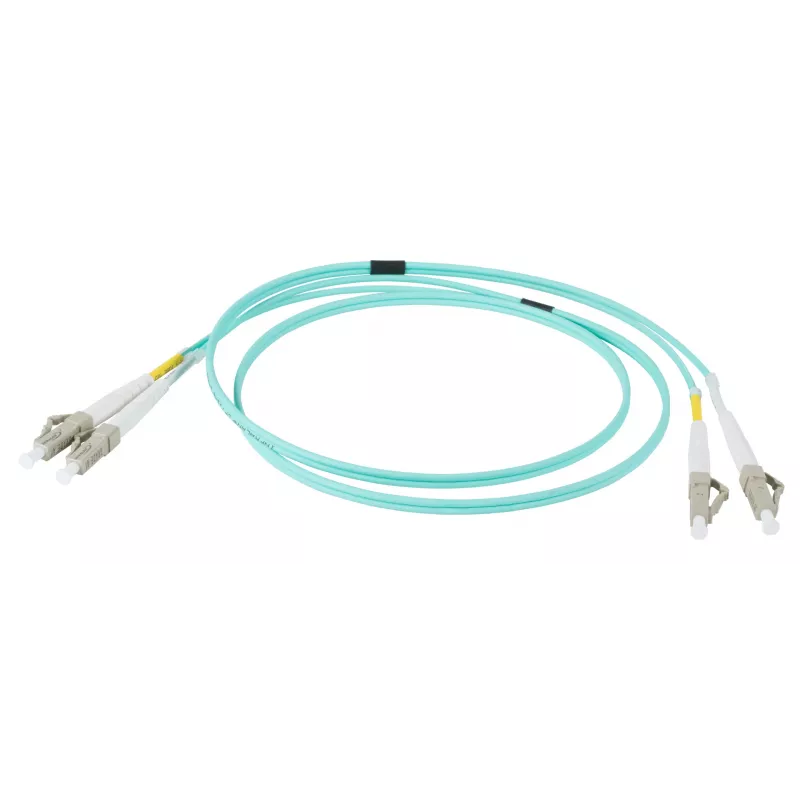

EFB Elektronik IPL-DR-LCULCU-3-0300 Cabo de fibra ótica, 3 m, OM3, LC/UPC para LC/UPC, duplex, LSZH, água

The EFB Elektronik IPL-DR-LCULCU-3-0300 is a high-performance fiber optic patch cable designed for reliable 10 Gigabit Ethernet connections in indoor environments. This 3-meter duplex cable features OM3 multimode fiber with LC/UPC connectors on both ends, ensuring low insertion loss and high return loss for optimal signal integrity. The LSZH (Low Smoke Zero Halogen) jacket in aqua provides safety and easy identification, making it ideal for data centers, server rooms, and network installations.

Advantages

This patch cable offers exceptional bandwidth and low attenuation, supporting high-speed data transmission up to 10 Gbps. The duplex construction allows for simultaneous bidirectional communication, while the LC/UPC connectors provide secure and precise connections. The LSZH jacket minimizes toxic smoke and corrosive gases in case of fire, enhancing safety in confined spaces.

Suitable for

• Data centers and server rooms requiring high-density cabling
• 10 Gigabit Ethernet networks (10GBASE-SR)
• Fiber-to-the-desk (FTTD) applications
• Storage area networks (SAN) and high-performance computing

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Length: 3 m
• Fiber Mode: Multimode
• Fiber Class: OM3
• Connector Type A: LC/UPC
• Connector Type B: LC/UPC
• Cable Construction: Duplex
• Number of Fibers: 2
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Maximum Data Rate Support: 10 Gigabit Ethernet (10GbE)
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 30 dB
• Attenuation at 850nm: 3.5 dB/km
• Attenuation at 1300nm: 1.5 dB/km
• Bandwidth at 850nm: 1500 MHz·km
• Bandwidth at 1300nm: 500 MHz·km
• Operating Temperature: -20°C to 70°C
• Application: Indoor

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC interfaces and is suitable for use with OM3-rated transceivers. Avoid sharp bends to maintain signal quality.
