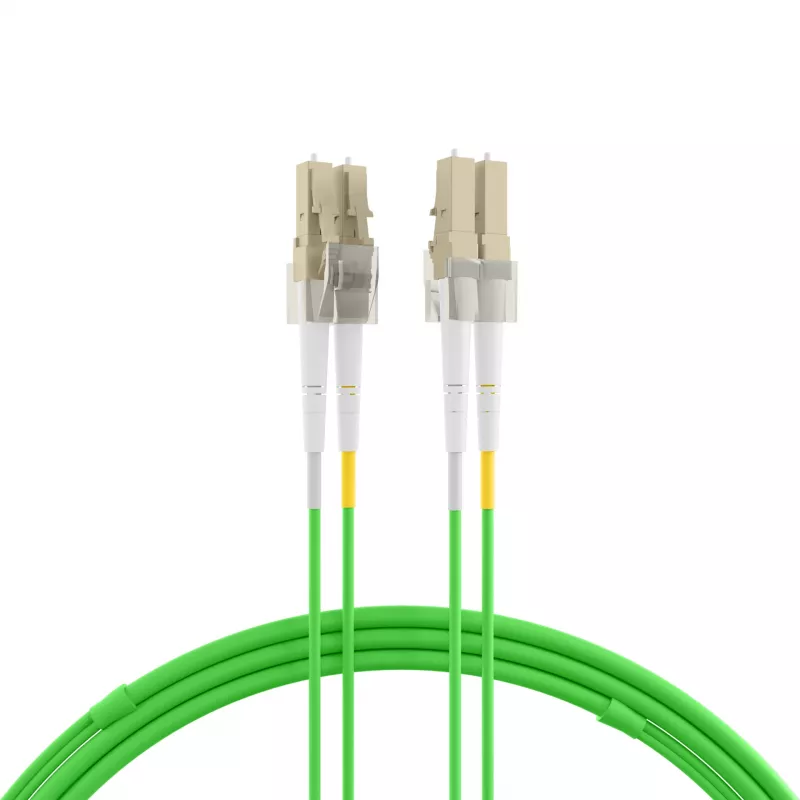

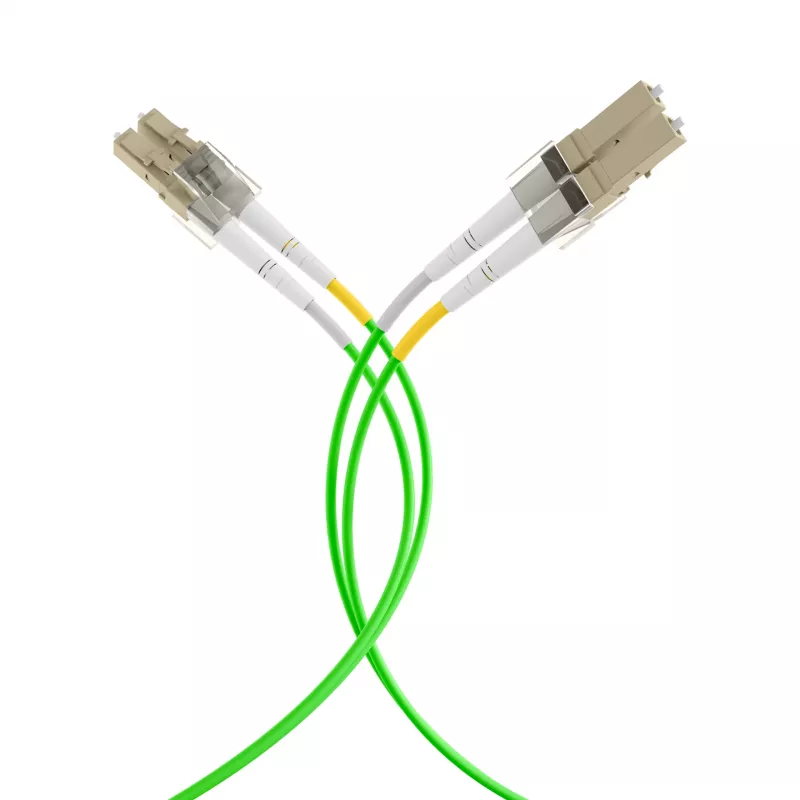

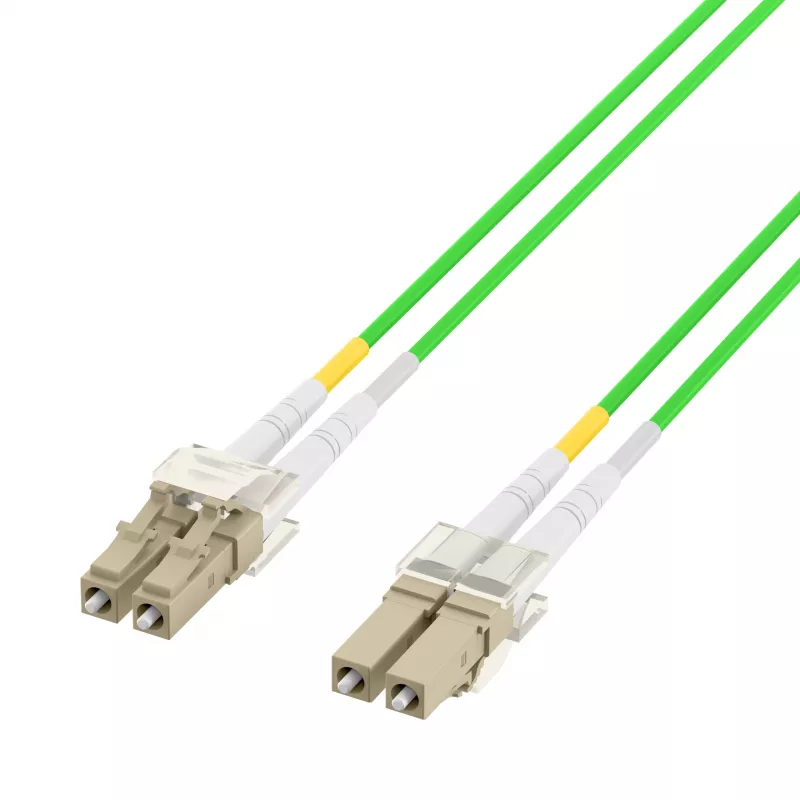

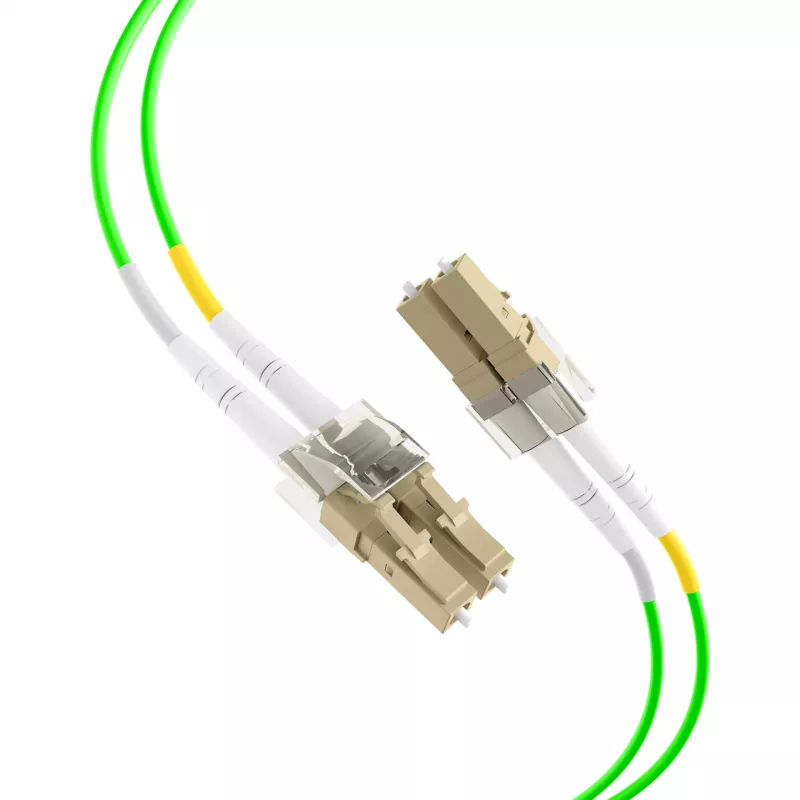

EFB Elektronik IPL-DR-LCULCU-5-0300 - 3 m - I-V(ZN) H - OM5 - LC duplex - LC duplex Cabo de fibra ótica, verde-limão

The EFB Elektronik IPL-DR-LCULCU-5-0300 is a high-performance 3-meter OM5 multimode fiber optic patch cable designed for demanding data center and enterprise network applications. Featuring LC duplex connectors on both ends and a robust I-V(ZN)H construction, this cable delivers reliable, high-speed connectivity for 10G/25G/40G/100G Ethernet and SWDM4 systems.

Advantages

OM5 fiber supports multiple wavelengths over a single fiber pair, enabling future-proof network upgrades without replacing cabling infrastructure. The laser-optimized design ensures low attenuation and high bandwidth, while the LSZH jacket provides safety in plenum and confined spaces.

Suitable for

• Data center interconnects
• High-speed enterprise networks
• SWDM4 and parallel optic applications
• 10G/25G/40G/100G Ethernet links

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Grade: OM5 (Laser-Optimized Multimode Fiber)
• Core/Cladding Diameter: 50/125 µm
• Connector Type A: LC Duplex
• Connector Type B: LC Duplex
• Cable Length: 3 m
• Number of Fibers: 2
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Lime Green
• Cable Construction: I-V(ZN)H (Indoor/Outdoor, Non-metallic, Halogen-free)
• Attenuation @ 850nm: ≤ 2.3 dB/km
• Attenuation @ 953nm: ≤ 2.3 dB/km
• Attenuation @ 1300nm: ≤ 0.6 dB/km
• Effective Modal Bandwidth @ 850nm: 4700 MHz·km
• Effective Modal Bandwidth @ 953nm: 2470 MHz·km
• Effective Modal Bandwidth @ 1300nm: 500 MHz·km
• Maximum Insertion Loss per Connector: ≤ 0.3 dB
• Standards Compliance: IEC 60793-2-10 Type A1a.4, TIA-492AAAE, ISO/IEC 11801

Recommendations

For optimal performance, pair with OM5-compatible transceivers and ensure clean, dust-free connections. This cable is ideal for high-bandwidth, short-reach applications where future scalability is required.
