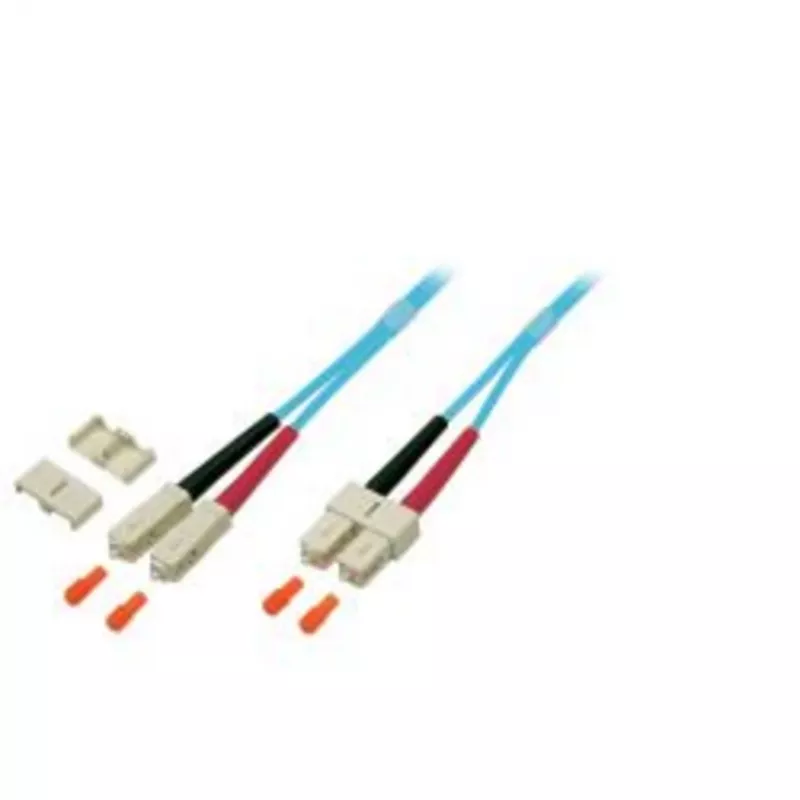

EFB Elektronik O7413.10 Jumper Duplex SC-SC 50/125 µm, 10 m, OM3, Turquesa

The EFB Elektronik O7413.10 is a high-performance duplex fiber optic patch cable designed for reliable data transmission in 10 Gigabit Ethernet and Fibre Channel networks. With SC connectors on both ends, a 50/125 µm core/cladding, and OM3 multimode fiber, this 10-meter cable ensures low insertion loss and high bandwidth. The turquoise LSZH jacket provides durability and safety in environments where smoke and halogen emissions are a concern.

Advantages

Optimized for 10 GbE applications with an effective modal bandwidth of 1500 MHz·km at 850 nm. Low insertion loss (≤0.3 dB per connector) and high return loss (≥30 dB) ensure signal integrity. LSZH jacket reduces toxic fumes in case of fire.

Suitable for

• 10 Gigabit Ethernet (10GbE) networks
• Fibre Channel storage area networks
• Data center and enterprise cabling
• High-speed backbone connections

Key specifications

• Cable type: Duplex Fiber Optic Patch Cable
• Fiber type: Multimode OM3
• Core/Cladding: 50/125 µm
• Connectors: SC to SC
• Length: 10 m
• Jacket material: LSZH
• Jacket color: Turquoise
• Insertion loss: ≤0.3 dB per connector
• Return loss: ≥30 dB
• Attenuation (850 nm): ≤3.5 dB/km
• Attenuation (1300 nm): ≤1.5 dB/km
• Effective modal bandwidth (850 nm): 1500 MHz·km
• Effective modal bandwidth (1300 nm): 500 MHz·km
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, REACH
• Polarity: A-B (Crossed)

Recommendations

For optimal performance, use with OM3-compatible transceivers and ensure clean connector end-faces. Suitable for indoor installations where low smoke and halogen-free materials are required.
