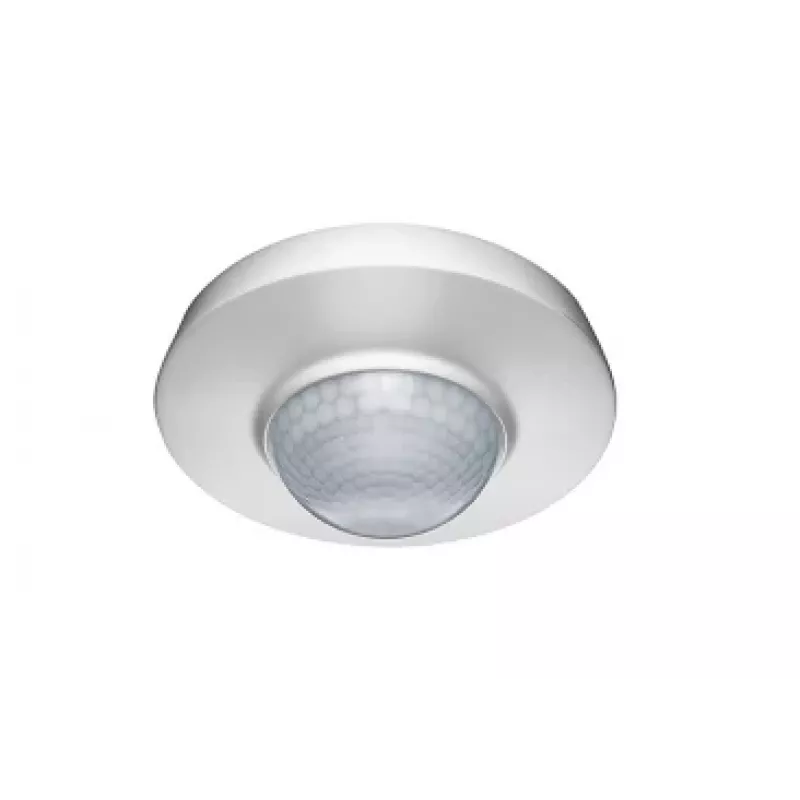

ESYLUX MD 360i/24 Sensor infravermelho passivo (PIR), montagem no teto, 24 m alcance, Branco

The ESYLUX MD 360i/24 is a high-quality passive infrared (PIR) sensor designed for ceiling-mounted indoor use. With a 360° detection angle and a detection range of up to 24 meters in diameter (at 3 m mounting height), it provides reliable presence and motion detection for lighting control in commercial and residential spaces. The sensor is wired and operates at 230 V AC, offering a switching capacity of 2300 W (resistive) or 1150 VA (inductive). Its adjustable time setting (10 s to 60 min) and light value setting (5 to 2000 lux) allow flexible customization. The UV-stabilised polycarbonate housing ensures durability, and the IP20 protection rating makes it suitable for indoor environments.

Advantages

Energy-efficient lighting control with automatic on/off switching based on occupancy and ambient light. Easy installation on ceilings with a recommended mounting height of 2.5 to 3 m. The 360° detection angle covers large areas, reducing the number of sensors needed. Adjustable settings for time delay and light threshold provide tailored comfort and energy savings.

Suitable for

• Office spaces
• Conference rooms
• Corridors and hallways
• Open-plan areas
• Storage rooms
• Any indoor area requiring automatic lighting control

Key specifications

• Sensor type: Passive Infrared (PIR)
• Mounting type: Ceiling-mounted
• Detection angle: 360°
• Detection range (diameter): 24 m (at 3 m mounting height)
• Recommended mounting height: 2.5 - 3 m
• Installation type: Wired
• Application area: Indoor
• Colour: White
• Protection class (IP rating): IP20
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity (resistive load): 2300 W (cos φ = 1)
• Switching capacity (inductive load): 1150 VA (cos φ = 0.5)
• Time setting range: 10 s - 60 min
• Light value setting range: 5 - 2000 lux
• Operating temperature: -20 °C to +50 °C
• Power consumption: Approx. 0.5 W
• Output type: Switching contact (relay)
• Number of switching channels: 1 (Light)
• Housing material: UV-stabilised polycarbonate
• Detection zones: 1120 switching segments with 17 detection levels

Recommendations

For optimal performance, mount the sensor at the recommended height of 2.5 to 3 m and ensure the detection area is free of obstructions. Pair with compatible lighting loads for best results.
