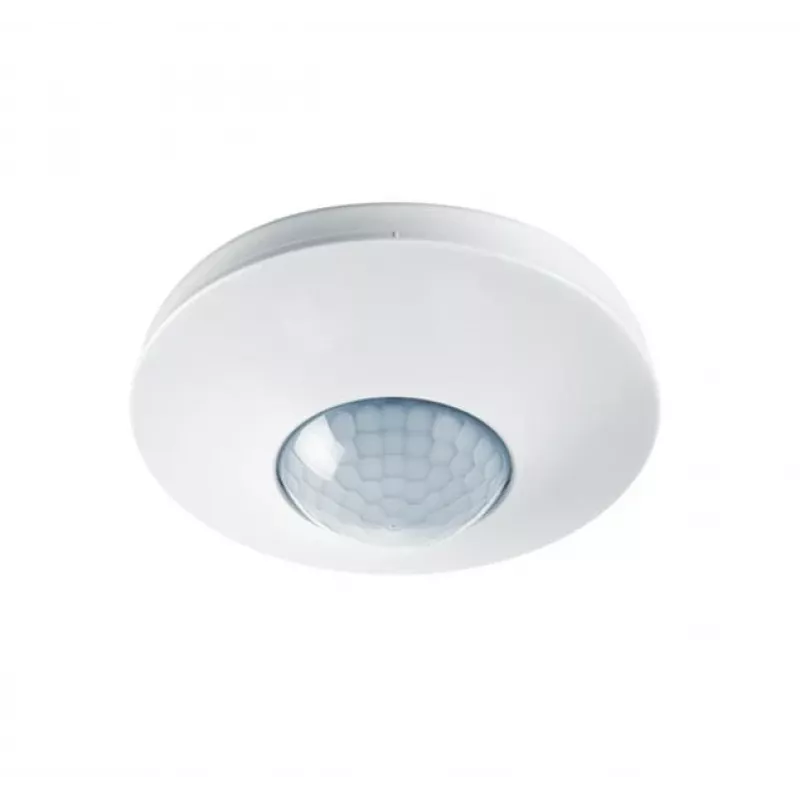

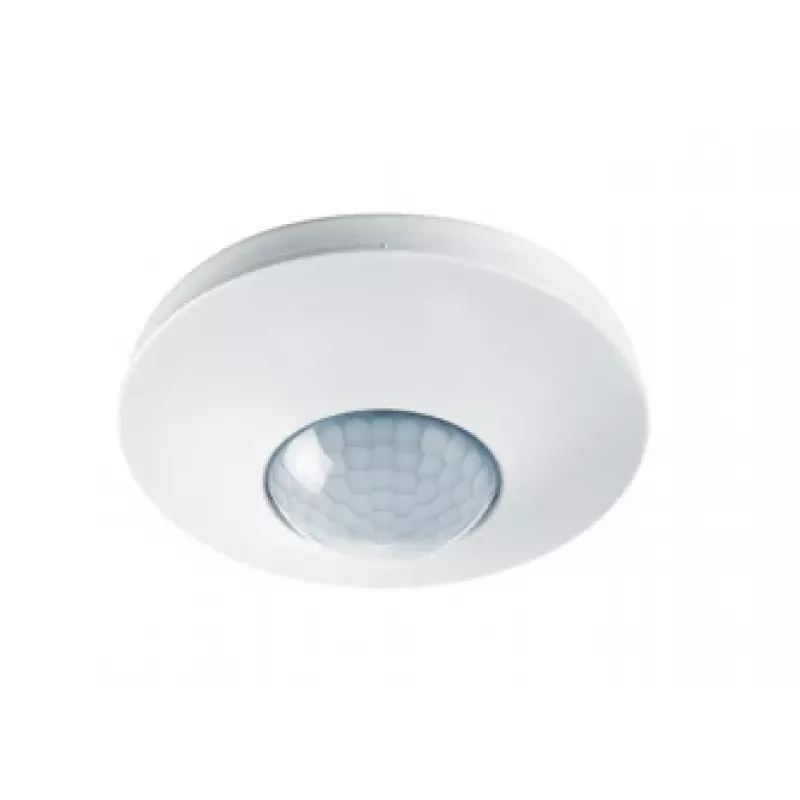

ESYLUX MD-C 360i/8 MIC Sensor infravermelho passivo (PIR) - Com fio - 8 m - Teto - Interior - Branco

The ESYLUX MD-C 360i/8 MIC is a high-quality passive infrared (PIR) sensor designed for ceiling mounting in indoor environments. It offers a 360° detection angle and an 8-meter detection diameter at a mounting height of 3 meters, making it ideal for automatic lighting control in offices, corridors, and other commercial spaces. The sensor is wired and operates at 230 V AC, with a switching capacity of up to 2300 W for resistive loads. It features adjustable time settings from 10 seconds to 60 minutes and light level settings from 5 to 2000 lux, providing flexible control. The compact design includes a sensor head of Ø 33 mm x 36 mm and a separate power supply unit, ensuring easy installation. With IP20 protection and UV-stabilised polycarbonate material, it is durable and reliable for long-term use.

Advantages

Energy-efficient automatic lighting control reduces electricity costs. The 360° detection angle and 8 m range ensure comprehensive coverage. Adjustable time delay and light level settings allow customisation to suit different environments. Low standby power consumption of less than 0.5 W contributes to energy savings. The sensor is easy to install and integrates seamlessly into existing wired systems.

Suitable for

• Office buildings
• Conference rooms
• Corridors and hallways
• Storage rooms
• Commercial indoor spaces

Key specifications

• Sensor Type: Passive Infrared (PIR)
• Detection Angle: 360°
• Detection Range (Diameter): 8 m (at 3 m mounting height)
• Mounting Type: Ceiling flush mount
• Installation Location: Indoor
• Connectivity: Wired
• Operating Voltage: 230 V AC, 50 Hz
• Switching Capacity (Resistive Load): 2300 W
• Switching Capacity (Inductive Load): 1150 VA (cos φ = 0.5)
• Time Setting Range: 10 seconds - 60 minutes
• Light Level Setting Range: 5 - 2000 lux
• Protection Class: IP20
• Color: White
• Power Consumption (Standby): < 0.5 W
• Ambient Temperature: -25 °C to +50 °C
• Sensor Head Dimensions: Ø 33 mm x 36 mm (installation depth)
• Power Supply Unit Dimensions: 16.5 x 28 x 59 mm (L x W x H)
• Switching Output: 1x Relay, Normally Open (NO) contact
• Recommended Mounting Height: 2 - 3 m
• Material: UV-stabilised polycarbonate

Recommendations

For optimal performance, mount the sensor at a height of 2-3 meters and ensure the detection area is free from obstructions. Use in combination with compatible lighting fixtures for automated control. The sensor is suitable for both new installations and retrofitting in existing systems.
