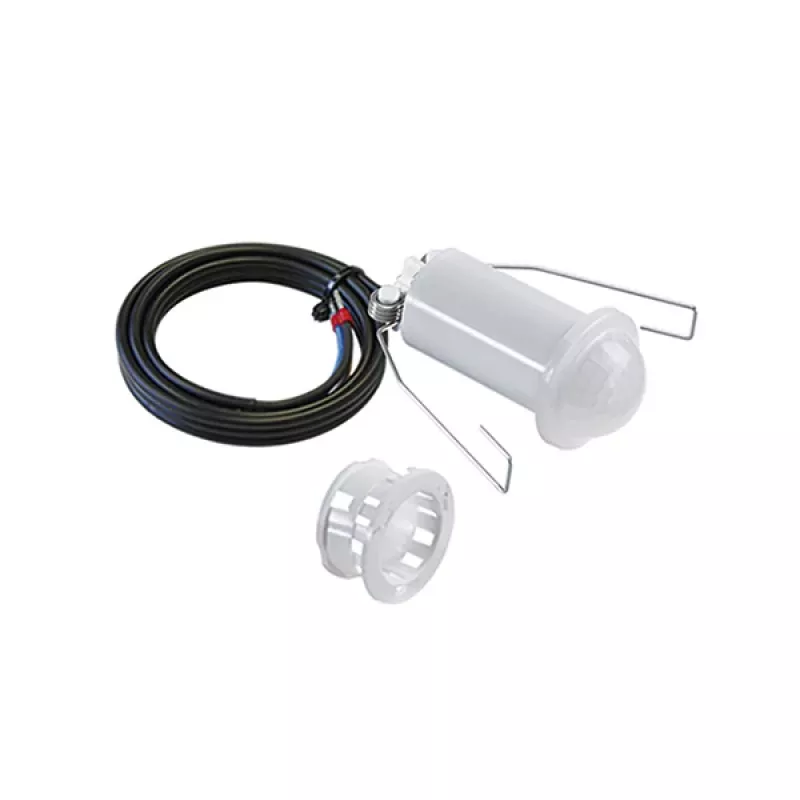

ESYLUX MD-C360i/8 mini Detetor de movimento de teto com fio 8m Branco IP55 2000 Lux

The ESYLUX MD-C360i/8 mini is a compact, wired passive infrared (PIR) ceiling motion detector designed for reliable presence and movement detection in indoor and outdoor areas. With a 360° detection angle and an 8-meter diameter range, it is ideal for automatic lighting control in corridors, stairwells, offices, and covered outdoor spaces. The detector features a light sensor adjustable from 10 to 2000 lux, allowing it to activate lighting only when ambient light falls below a set threshold. Its robust IP55 rating makes it suitable for damp environments, while the sleek white design blends seamlessly into ceilings.

Advantages

• 360° detection angle with 8 m diameter range for comprehensive coverage
• Adjustable light sensor (10–2000 lux) for energy-efficient operation
• IP55 protection against dust and water jets, suitable for challenging environments
• Compact flush-mount design with low profile (visible diameter 33 mm)
• Relay output (NO contact) for switching incandescent loads up to 2300 W or LED loads up to 300 W
• Adjustable time delay from 10 seconds to 60 minutes

Suitable for

• Corridors and hallways
• Stairwells and landings
• Office spaces and meeting rooms
• Covered outdoor areas (e.g., terraces, canopies)
• Bathrooms and utility rooms (IP55 rated)

Key specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 8 m
• Mounting type: Ceiling, flush-mounted
• Protection class: IP55
• Colour: White
• Light sensor range: 10 – 2000 lux
• Operating voltage: 230 V AC, 50 Hz
• Max. switching power (incandescent): 2300 W
• Max. switching power (LED): 300 W
• Time delay setting: 10 s – 60 min
• Operating temperature: -25 °C to +50 °C
• Connection type: Wired (3-wire)
• Stand-by power consumption: < 0.5 W
• Output type: Relay (NO contact)
• Visible diameter: 33 mm
• Installation depth: 36 mm
• Installation opening diameter: 25 mm
• Control mode: Fully automatic / Semi-automatic

Recommendations

For optimal performance, install the detector at a height of 2–3 m. Ensure the detection area is free from obstructions. The device is designed for indoor use or sheltered outdoor areas with IP55 protection. Pair with compatible ESYLUX accessories for extended functionality.
