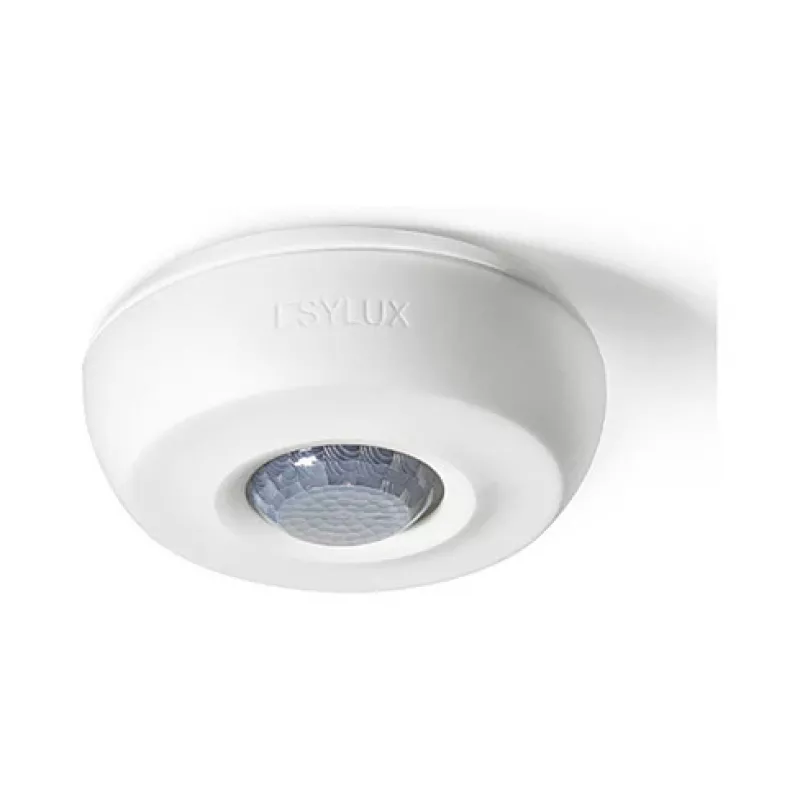

ESYLUX PD 360/8 Basic sensor infravermelho passivo (PIR) - com fios - 8 m - teto - interior - branco

The ESYLUX PD 360/8 Basic is a high-quality passive infrared (PIR) sensor designed for automatic lighting control in indoor environments. With a 360° detection angle and an 8-meter diameter range (at 2.5 m mounting height), it provides reliable presence detection for energy-efficient lighting management. This wired ceiling-mounted sensor is ideal for offices, corridors, stairwells, and other commercial or residential spaces.

Advantages

Energy-saving automatic lighting control with adjustable time delay (30 s to 30 min) and twilight threshold (5-2000 Lux). Easy flush-mount installation on ceilings with a recommended height of 2.0-3.0 m. Compact design with a low standby power consumption of approx. 0.5 W.

Suitable for

• Indoor ceiling mounting in offices, meeting rooms, corridors, stairwells, and storage areas
• Automatic lighting control in commercial and residential buildings
• Replacing conventional light switches for energy efficiency

Key specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 8 m at 2.5 m mounting height
• Mounting type: Ceiling, flush-mounted
• Recommended mounting height: 2.0 - 3.0 m
• Operating voltage: 230 V AC / 50 Hz
• Switching capacity (resistive): 2300 W
• Switching capacity (inductive): 1150 VA (cos φ = 0.5)
• Max. inrush current: 10 A / 100 ms
• Standby power consumption: approx. 0.5 W
• Time setting range: 30 s - 30 min, Pulse
• Twilight switch setting: 5 - 2000 Lux
• Protection type: IP20
• Protection class: II
• Colour: White (RAL 9010)
• Operating temperature: -25 °C to +50 °C
• Control output: 1x Light (Relay)
• Installation depth: 35 mm

Recommendations

For optimal performance, mount the sensor at the recommended height and avoid obstructions in the detection area. Pair with compatible lighting loads for reliable switching.
