ESYLUX PD-C 360i/24plus Sensor infravermelho passivo (PIR) - Com fio - 24 m - Teto - Interior - Branco

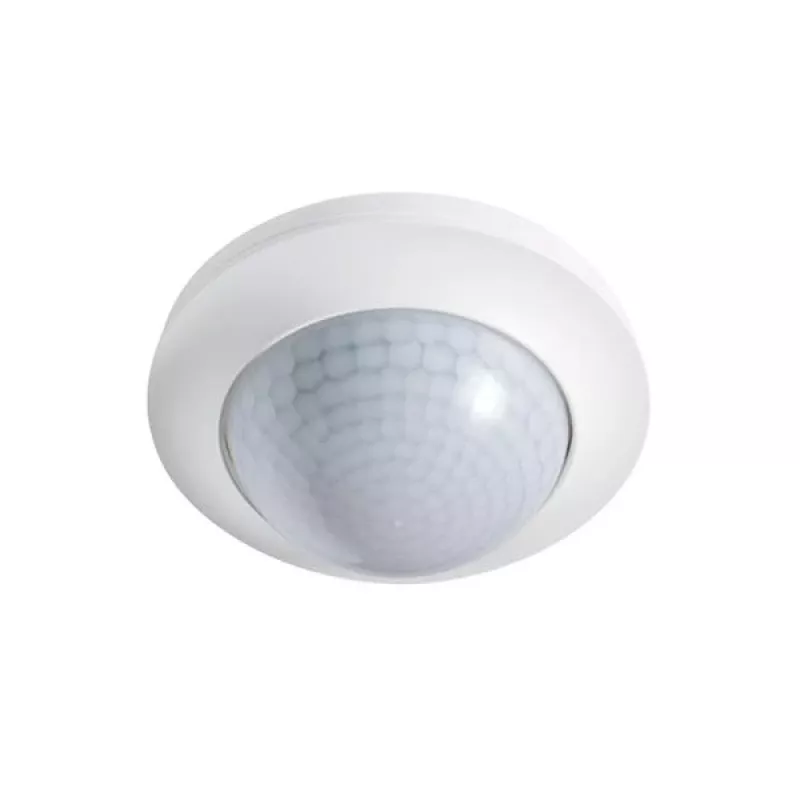

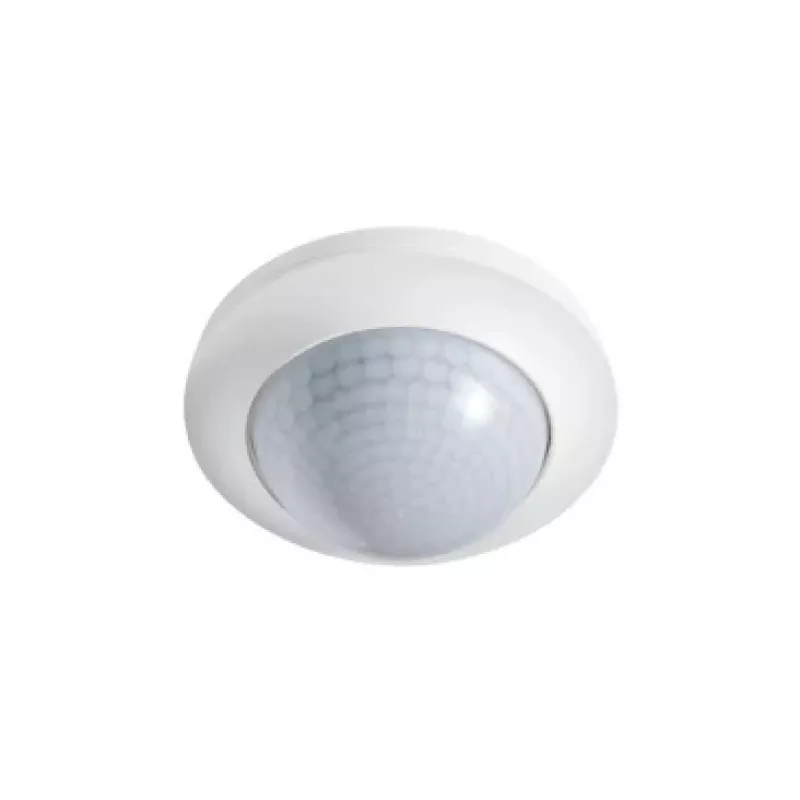

The ESYLUX PD-C 360i/24plus is a high-quality passive infrared (PIR) sensor designed for ceiling mounting in indoor environments. With a 360° detection angle and a diameter of up to 24 meters (at 3 m mounting height), it provides reliable presence and motion detection for lighting control in commercial and residential spaces.

Advantages

Energy-efficient automatic lighting control with adjustable time delay and light threshold. The sensor features a compact, flush-mounted design in white (RAL 9010) that blends seamlessly with modern ceilings. Easy wired installation with 230 V AC supply.

Suitable for

• Office rooms
• Meeting rooms
• Corridors
• Stairwells
• Storage rooms
• Open-plan areas

Key specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 24 m (at 3 m mounting height)
• Mounting type: Ceiling (flush-mounted)
• Recommended mounting height: 2.5 - 3.5 m
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (resistive): 2300 W
• Max. switching capacity (LED): 600 W
• Time setting range: 60 sec - 16 min
• Light value setting range: 5 - 2000 Lux
• IP rating: IP20
• Protection class: II
• Operating temperature: -25 °C to +50 °C
• Colour: White (RAL 9010)
• Power consumption: approx. 0.5 W
• Number of switching channels: 1 (Light)
• Connectivity: Wired

Recommendations

For optimal performance, mount the sensor at a height of 2.5 to 3.5 meters. Ensure the detection area is free from obstructions. This sensor is ideal for energy-saving lighting automation in indoor spaces.
