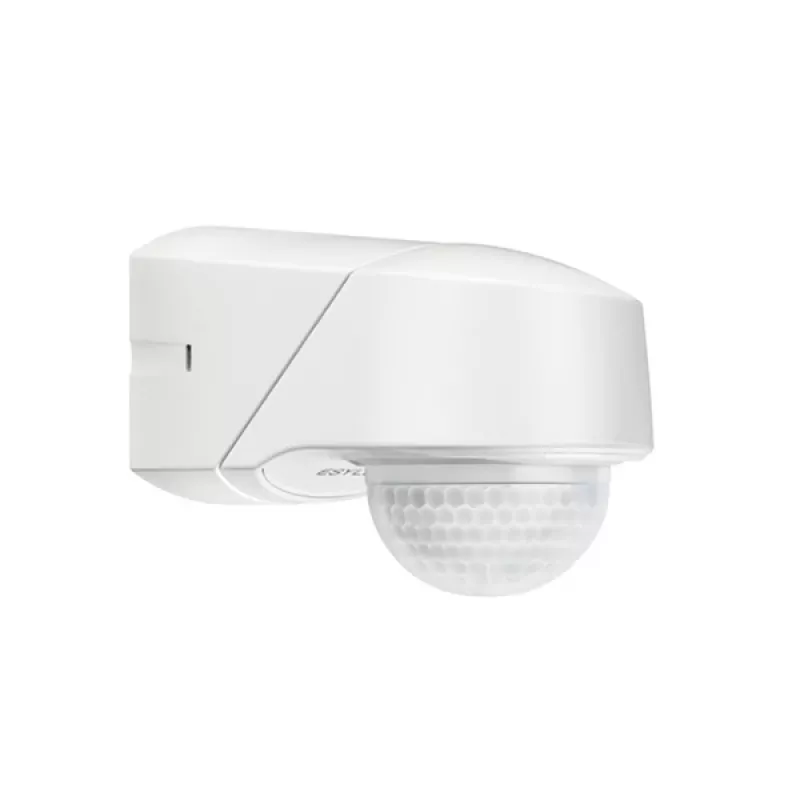

ESYLUX RC 130i detetor de movimento PIR 20m teto/parede branco IP54 2500 Lux 2,5m

The ESYLUX RC 130i is a high-quality passive infrared (PIR) motion detector designed for reliable presence and movement detection in both indoor and outdoor areas. With a 130° detection angle and a 20 m diameter range at 2.5 m mounting height, it is ideal for large rooms, corridors, and building entrances. The device features adjustable brightness switching (10–2500 lux) and time settings (10 s–30 min), offering flexible control of connected lighting. Its robust IP54-rated housing and UV-stabilised polycarbonate material ensure durability and weather resistance.

Advantages

Energy-efficient automatic lighting control reduces electricity costs. Simple installation on ceiling or wall with standard 230 V AC supply. High switching capacity (2300 W resistive, 1150 VA inductive) suitable for various loads. Low standby power consumption (approx. 0.5 W). Protection class II for safe operation without earth connection.

Suitable for

• Office buildings and conference rooms
• Warehouses and industrial halls
• Corridors, stairwells, and entrance areas
• Outdoor covered areas (e.g., canopies, garages)
• Retail stores and showrooms

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 130°
• Detection range (diameter): 20 m at 2.5 m mounting height
• Recommended mounting height: 2.5 m
• Mounting type: Ceiling, Wall
• Ingress protection: IP54
• Colour: White
• Brightness switching value: 10–2500 lux (adjustable)
• Time setting: 10 s–30 min (adjustable)
• Power supply: 230 V AC, 50 Hz
• Switching capacity (resistive): 2300 W
• Switching capacity (inductive): 1150 VA (cos φ = 0.5)
• Standby power consumption: approx. 0.5 W
• Protection class: II
• Ambient temperature: -25 °C to +50 °C
• Housing material: UV-stabilised polycarbonate
• Application area: Indoor and outdoor
• Control type: Automatic
• Number of channels: 1 (Light)
• Max. current: 10 A

Recommendations

For optimal performance, mount the detector at the recommended height of 2.5 m and avoid obstructions in the detection field. Use in combination with ESYLUX lighting controls for enhanced energy savings.
