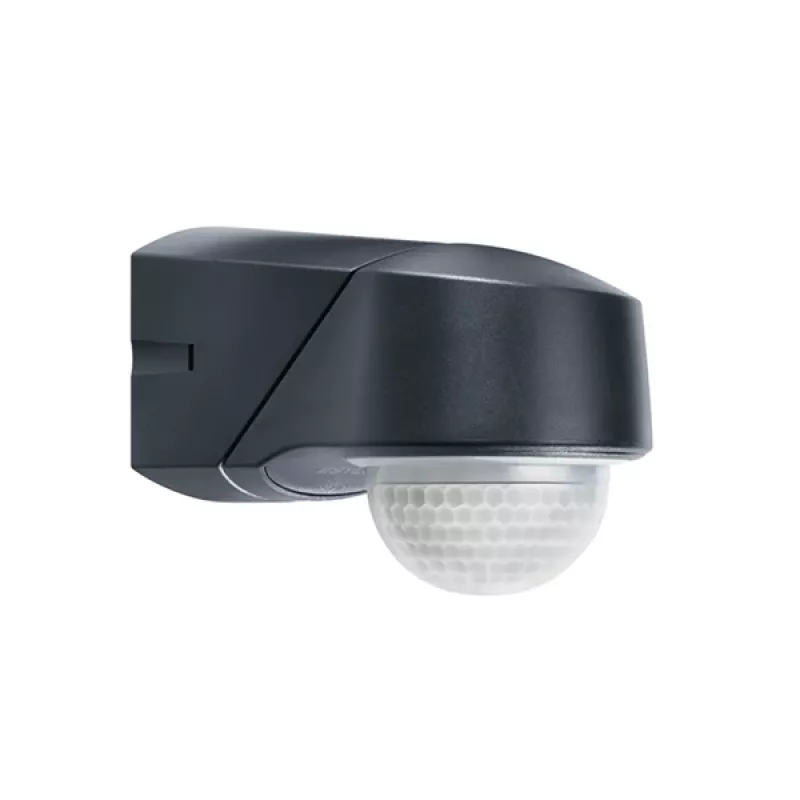

ESYLUX RC 130i detetor de movimento PIR teto/parede 20m 360° preto IP54 2500 Lux 2,5m

The ESYLUX RC 130i is a high-performance passive infrared (PIR) motion detector designed for surface mounting on ceilings or walls. With a 360° detection angle and a tangential range of 20 meters, it is ideal for monitoring large indoor and protected outdoor areas. The detector features an adjustable ambient light threshold from 5 to 2500 lux and a time delay setting from 10 seconds to 30 minutes, making it suitable for energy-efficient lighting control in commercial and industrial environments.

Advantages

Reliable 360° detection with a 20 m diameter coverage area; adjustable light threshold and time delay for flexible automation; robust IP54 protection for use in demanding conditions; low power consumption of only 0.5 W; UV-stabilised polycarbonate housing ensures long-lasting durability.

Suitable for

• Office buildings and conference rooms
• Warehouses and storage facilities
• Corridors and stairwells
• Covered outdoor areas and canopies
• Industrial halls and workshops

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (tangential): 20 m diameter
• Detection range (radial): 6 m diameter
• Mounting type: Surface-mounted (ceiling/wall)
• Recommended mounting height: 2.5 m
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity (resistive): 2300 W
• Switching capacity (inductive): 1150 VA (cos φ = 0.5)
• Ambient light threshold: 5 - 2500 Lux / ∞
• Time delay setting: 10 s - 30 min
• Protection rating: IP54
• Protection class: II
• Colour: Black
• Operating temperature: -25 °C to +50 °C
• Power consumption: ~0.5 W
• Material: UV-stabilised polycarbonate
• Application area: Indoor and protected outdoor areas

Recommendations

For optimal performance, mount the detector at the recommended height of 2.5 m and ensure the detection zone is free from obstructions. Use in combination with ESYLUX lighting controls for advanced energy management.
