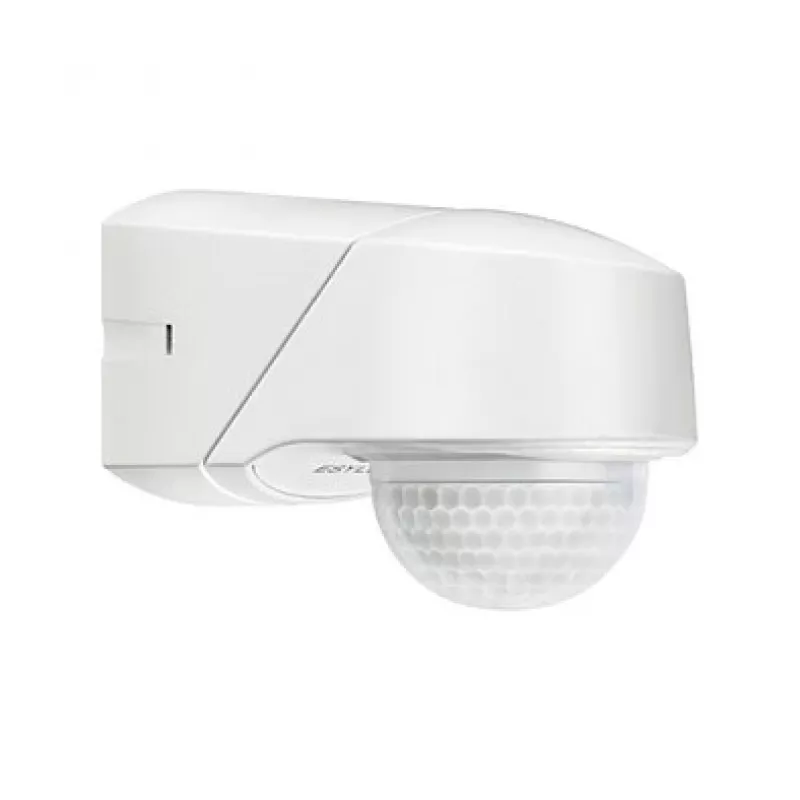

ESYLUX RC 230i detetor de movimento PIR 20m teto/parede branco IP54 2500 Lux 2,5m

The ESYLUX RC 230i is a high-performance passive infrared (PIR) motion detector designed for reliable presence and movement detection in indoor and outdoor areas. With a 230° detection angle and a maximum range of 20 meters, it is ideal for large rooms, corridors, and covered outdoor spaces. The detector can be mounted on ceilings or walls and features a sleek white housing (RAL 9010) with IP54 protection against dust and water splashes.

Advantages

• Wide 230° detection angle and 20 m range cover large areas with a single device.
• Flexible mounting on ceiling or wall allows adaptation to various room layouts.
• IP54 rating ensures reliable operation in damp or dusty environments.
• Adjustable light sensitivity from 5 to 2500 lux enables use in both dark and bright conditions.
• Time setting from 10 seconds to 60 minutes provides customisable control.
• Low power consumption of only 0.5 W reduces energy costs.
• Optional remote control for convenient parameter adjustment.

Suitable for

• Office buildings and meeting rooms
• Corridors and stairwells
• Warehouses and storage areas
• Covered outdoor areas such as canopies and entrances
• Industrial facilities

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 230°
• Detection range (max.): 20 m (radial)
• Mounting type: Ceiling, Wall
• Recommended mounting height: 2.0 - 2.5 m
• IP rating: IP54
• Colour: White (RAL 9010)
• Light sensitivity range: 5 - 2500 Lux
• Time setting range: 10 s - 60 min
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity (resistive load): 2300 W
• Switching capacity (inductive load): 1150 VA
• Max. switching current: 10 A
• Power consumption: approx. 0.5 W
• Operating temperature range: -25 °C to +50 °C
• Protection class: II
• Housing material: UV-stabilised polycarbonate
• Control options: Remote control (optional)

Recommendations

For optimal performance, mount the detector at the recommended height of 2.0 to 2.5 m and avoid obstructions in the detection field. Use the optional remote control for easy adjustment of settings without climbing.
