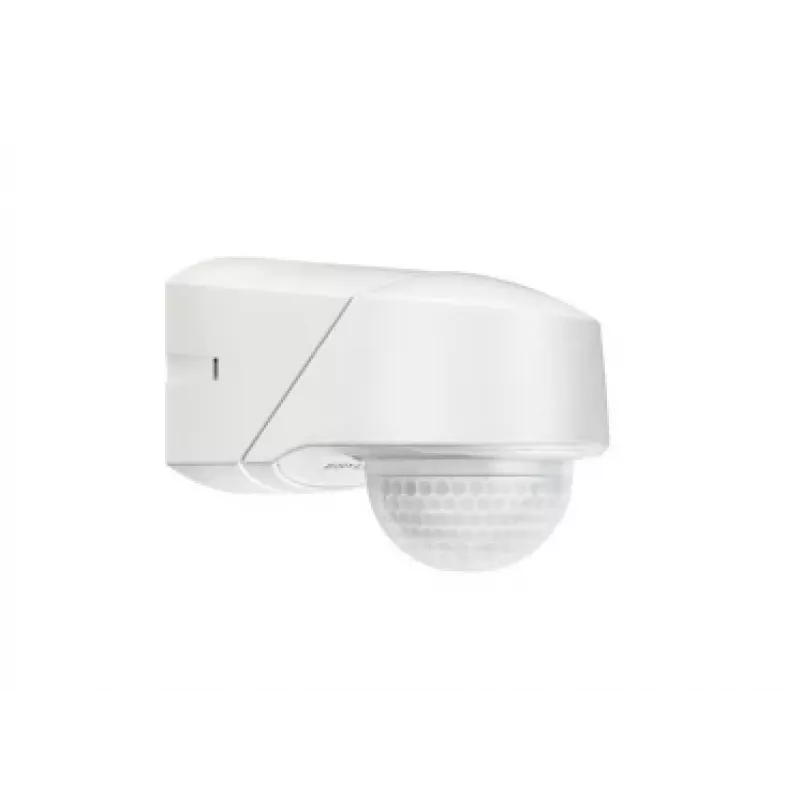

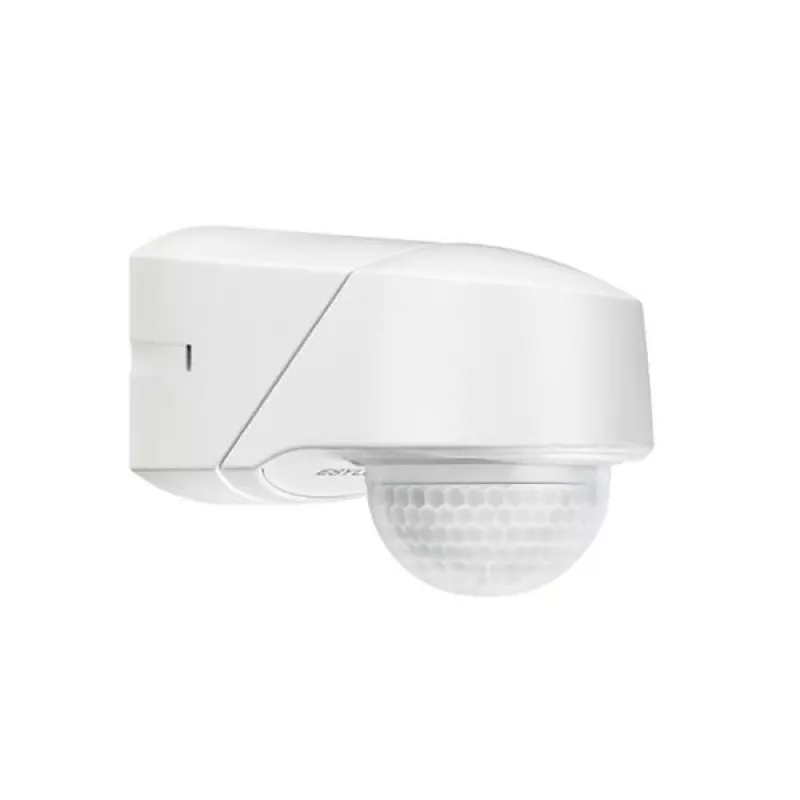

ESYLUX RC 280i Sensor infravermelho passivo (PIR) - Com fio - 40 m - Teto/Parede - Exterior - Branco

The ESYLUX RC 280i is a high-performance passive infrared (PIR) sensor designed for reliable motion detection in both indoor and outdoor applications. With a wide detection angle of 280° and a radial range of up to 40 m, it is ideal for large areas such as warehouses, parking lots, and building entrances. The sensor features a wired installation and can be mounted on ceilings or walls, offering flexibility for various project requirements.

Advantages

Exceptional detection coverage with 1416 switching segments across 10 detection levels ensures minimal blind spots. The IP54 protection class makes it suitable for outdoor use, while the integrated light sensor (5-2000 Lux) and adjustable time setting (10 s - 60 min) provide energy-efficient automation. The UV-stabilised polycarbonate housing guarantees long-lasting durability even in harsh environments.

Suitable for

• Outdoor areas: building entrances, parking lots, pathways
• Indoor spaces: warehouses, corridors, large halls
• Security lighting and automatic light control

Key specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 280°
• Detection range radial: up to 40 m
• Detection range tangential: up to 20 m
• Mounting height: 2.5 - 4 m
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity resistive: 2300 W (cos φ = 1)
• Switching capacity inductive: 1150 VA (cos φ = 0.5)
• Protection class: IP54
• Operating temperature: -25 °C to +50 °C
• Light sensor range: 5 - 2000 Lux
• Time setting: 10 s - 60 min
• Colour: White
• Material: UV-stabilised polycarbonate
• Number of switching channels: 1 (Light)

Recommendations

For optimal performance, mount the sensor at a height of 2.5 to 4 m and ensure the detection area is free from obstructions. Use in combination with ESYLUX lighting controls for advanced automation.
