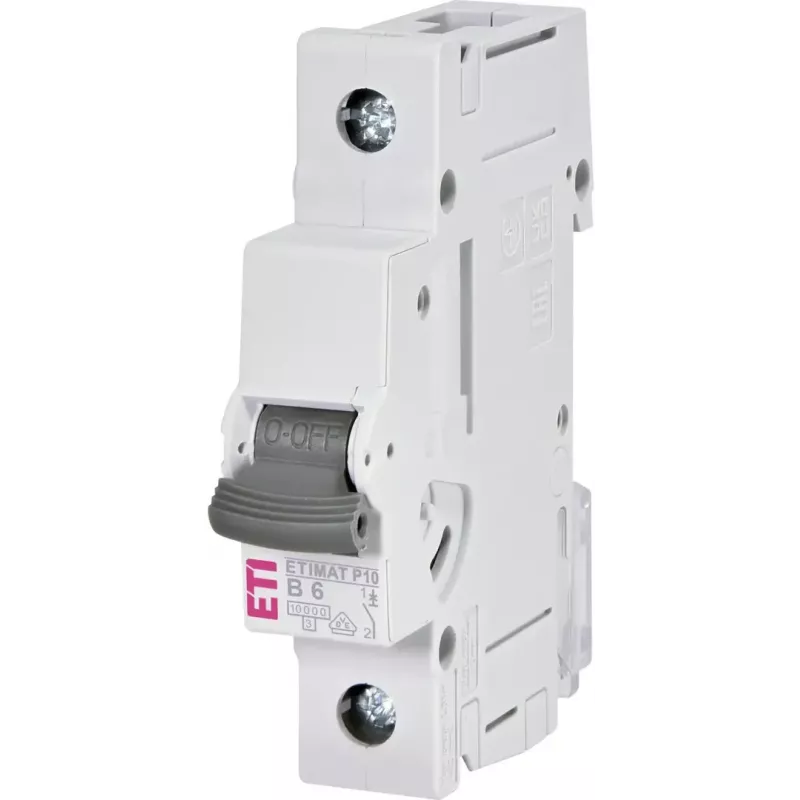

ETI ETIMAT P10 1P B6 Disjuntor 6A, característica B, 230/400V, 10kA

The ETI ETIMAT P10 1P B6 is a single-pole miniature circuit breaker engineered for reliable protection of electrical circuits against overload and short-circuit. With a rated current of 6 A and B tripping characteristic, it is particularly suited for residential and commercial installations where moderate inrush currents are expected. Its compact design and DIN rail mounting make it a practical choice for distribution boards.

Highlights

• Rated current: 6 A
• Tripping characteristic: B
• Breaking capacity: 10 kA
• Single-pole (1P)
• DIN rail mounting

In daily use

This MCB provides dependable protection for lighting and socket circuits, ensuring quick disconnection in fault conditions. The screw terminals accommodate a wide range of conductor sizes, simplifying installation. Its IP20 rating indicates protection against solid objects, suitable for use in enclosed distribution boards.

Full specifications

• Rated voltage: 230/400 V AC
• Rated frequency: 50/60 Hz
• Mounting type: DIN rail (EN 60715)
• Terminal type: Screw terminals
• Connection capacity (rigid): 1 - 25 mm²
• Connection capacity (flexible): 1 - 16 mm²
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Protection degree: IP20 (terminals)
• Standard: IEC/EN 60898-1
• Energy limiting class: 3
• Ambient operating temperature: -25 to +55 °C

Final note

A robust and compliant MCB for everyday circuit protection, backed by ETI's proven ETIMAT P10 series.
