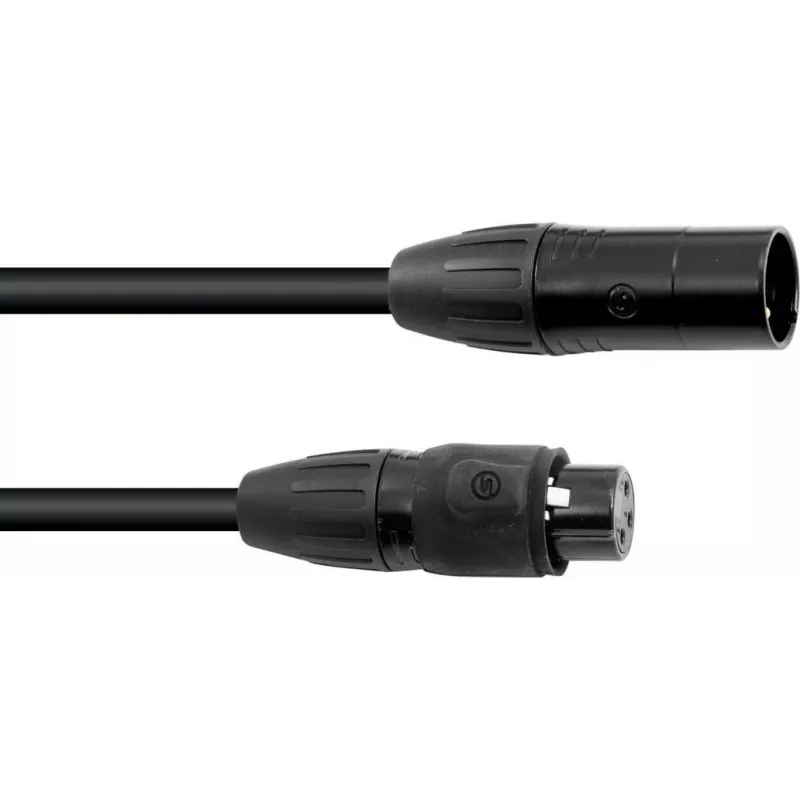

EUROLITE Cabo DMX SEC-1 IP65 3 pinos 20m preto para exterior

Outdoor events and installations demand reliable DMX signal transmission even in challenging weather. The EUROLITE DMX Cable SEC-1 IP65 is built for exactly that: a 20-meter, 3-pin XLR cable with IP65-rated connectors that keep out dust and water, ensuring your lighting control remains stable in rain, humidity, or dusty environments. Its oxygen-free copper conductors and spiral shielding preserve signal integrity over long runs, while the robust PVC jacket withstands the rigors of outdoor use.

Who is it for

This cable is ideal for lighting technicians, event production companies, and venue operators who need dependable DMX connections for outdoor stages, architectural lighting, or temporary installations. Whether you're setting up a festival stage, illuminating a building facade, or running DMX through wet or dusty areas, the SEC-1 IP65 delivers consistent performance and protection.

Main features

• IP65-rated 3-pin XLR connectors for water and dust resistance
• 20-meter length for extended signal runs without repeaters
• Oxygen-free copper (OFC) conductors for superior signal clarity
• Spiral shielding minimizes electromagnetic interference
• Durable PVC jacket designed for outdoor conditions
• 110 Ohm impedance matches DMX512 standard
• Wide operating temperature range from -20°C to +70°C

Specifications

• Cable type: DMX cable
• Connector type: XLR 3-pin (male to female)
• IP rating: IP65
• Cable length: 20 m
• Color: Black
• Impedance: 110 Ohm
• Conductor cross-section: 2x 0.22 mm² (AWG 24)
• Conductor material: Oxygen-free copper (OFC)
• Shielding: Spiral shielding
• Cable diameter: 6.5 mm
• Jacket material: PVC
• Connector material: Metal
• Number of conductors: 2 (plus shield)
• Compatibility: DMX512 standard
• Operating temperature: -20°C to +70°C

Tips

To maximize the lifespan of your SEC-1 IP65 cable, always ensure the connectors are fully seated and the locking mechanism is engaged. After use in wet conditions, wipe down the connectors and allow them to dry before storage. For permanent outdoor installations, consider using cable ramps or conduits to protect the jacket from physical damage. Pair with other IP65-rated fixtures and cables for a fully weatherproof DMX network.
