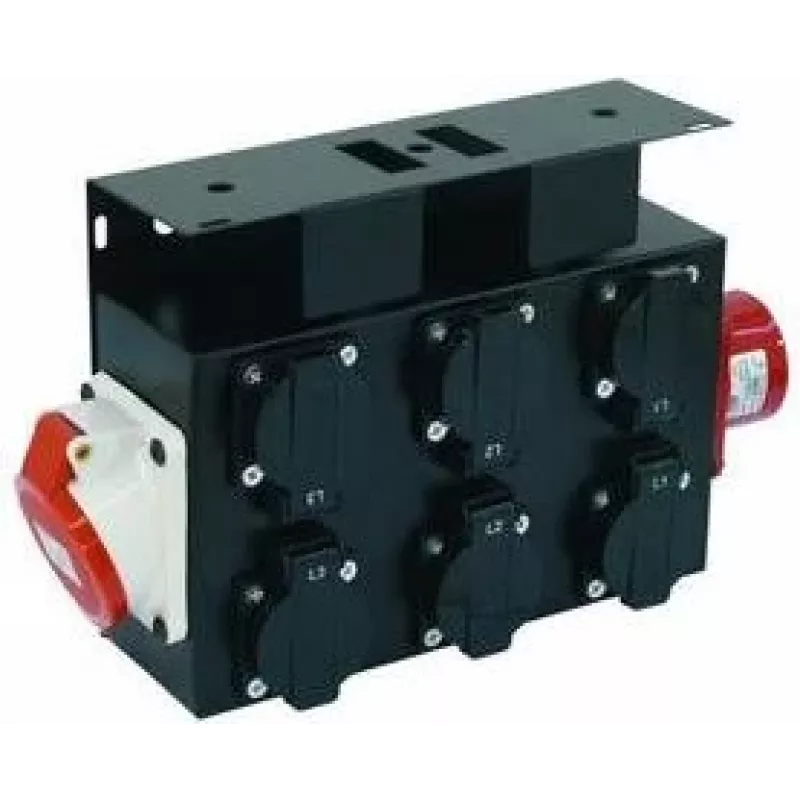

Eurolite SB-652X Distribuidor de corrente CEE 32A 5 polos 6x Schuko 2x CEE16 IP44 30248340

Managing power distribution at events, on construction sites, or in workshops often means juggling multiple extension cords and risking overloaded circuits. The Eurolite SB-652X CEE Power Distributor solves this by providing a safe, centralized hub that converts a single 32 A three-phase input into six protected Schuko outlets and two CEE 16 A outputs, all guarded by residual current protection.

Who is it for

This distributor is built for event technicians, mobile DJs, rental companies, and trade professionals who need reliable, splash-proof power distribution in demanding environments. Its robust housing and IP44 rating make it suitable for both indoor and temporary outdoor use.

Main features

• 32 A CEE 5-pin input with 1.5 m H07RN-F cable for flexible connection
• Six 230 V Schuko safety sockets, each protected by a 16 A circuit breaker
• Two 16 A CEE 5-pin outputs with 3-pole C16 circuit breakers
• 40 A, 4-pole RCD with 30 mA trip current (Type A) for personal protection
• One 32 A CEE 5-pin through-socket for daisy-chaining additional distributors
• Splash-proof IP44 plastic housing, portable and rugged
• Total max load 22 kW across three phases

Specifications

• Input: 400 V AC, 50 Hz, 32 A, 5-pin CEE
• Input cable: H07RN-F 5G4, length 1.5 m
• Outputs: 1 x 32 A CEE 5-pin (through), 2 x 16 A CEE 5-pin, 6 x Schuko 16 A
• Circuit breakers: 2 x C16 A 3-pole (CEE), 6 x C16 A 1-pole (Schuko)
• RCD: FI 40 A, 4-pole, 30 mA, Type A
• Protection class: IP44
• Operating temperature: -20 °C to +40 °C
• Housing material: robust plastic
• Mounting: portable

Tips

Always check the total connected load does not exceed 22 kW and distribute loads evenly across phases to avoid tripping the RCD. For outdoor use, place the distributor on a dry, elevated surface and protect the sockets with rubber covers when not in use.
