EXSYS EX-6226POE switch industrial Gigabit PoE+ de 8 portas, 12-36VDC, calha DIN

In a factory floor or outdoor cabinet, the EXSYS EX-6226POE connects and powers eight IP cameras, sensors, or access points over a single Ethernet cable. Its rugged metal housing and wide operating temperature range keep the network running where commercial switches would fail.

Key specifications

• 8 x 10/100/1000Base-T(X) RJ45 ports, all with PoE+ (IEEE 802.3af/at)
• Up to 30W per port, total PoE budget 90W

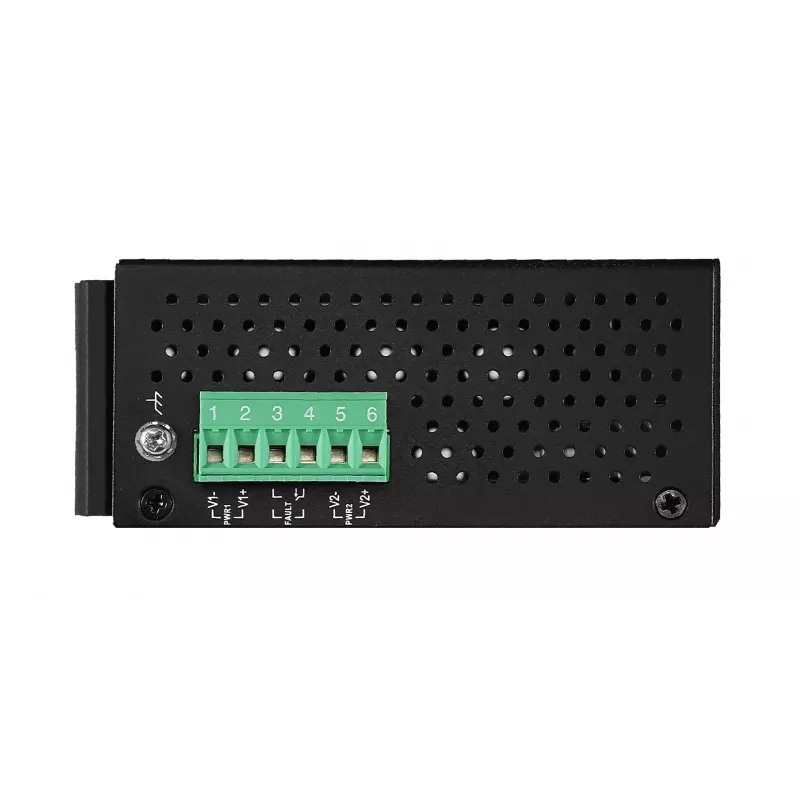

• Redundant 12-36 VDC power input
• Switching capacity 16 Gbps, forwarding rate 11.9 Mpps
• MAC address table: 8K entries, packet buffer 1 Mbit
• Jumbo frame support up to 9KB
• Unmanaged, plug-and-play

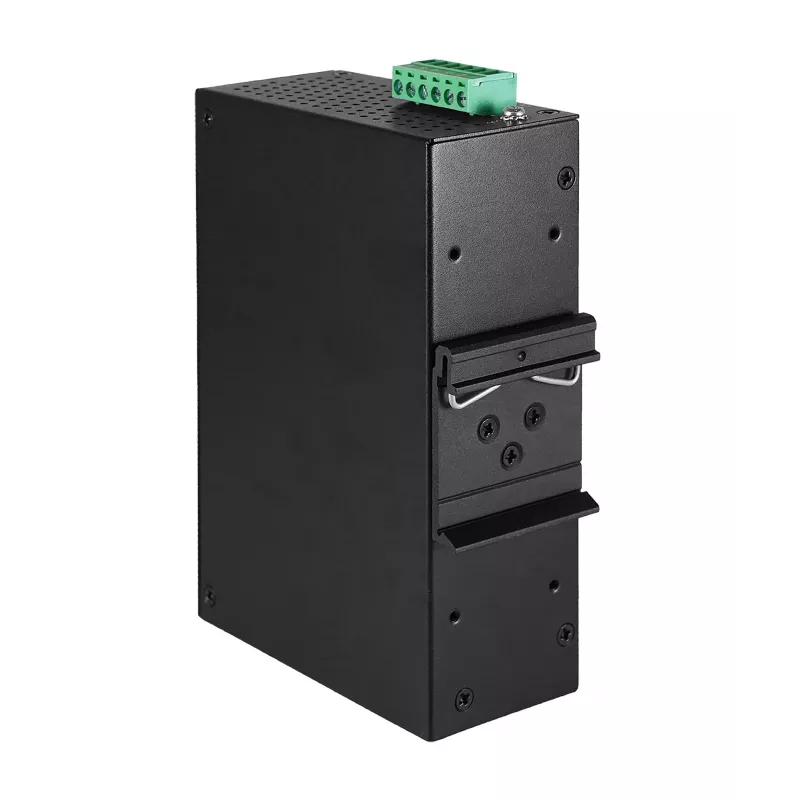

• DIN-rail and wall-mount options
• Operating temperature -40°C to 75°C
• IP30 rated metal housing
• ESD and surge protection 6KV DC
• Power consumption: max 10W (without PoE load), max 100W (with PoE load)

Why choose it

This switch delivers reliable Gigabit connectivity and PoE+ power in harsh industrial environments. Redundant power inputs and robust protection against electrical surges ensure continuous operation.

Ideal use cases

• Industrial automation and machine vision
• IP surveillance systems in outdoor or factory settings
• Connecting PoE-powered devices in remote cabinets
• Building management and access control

Good to know

The switch is unmanaged, so no configuration is needed. It supports IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, and 802.3at standards.
