Fonte de alimentação comutada fechada MEAN WELL RS-15-5 15W 5V 3A

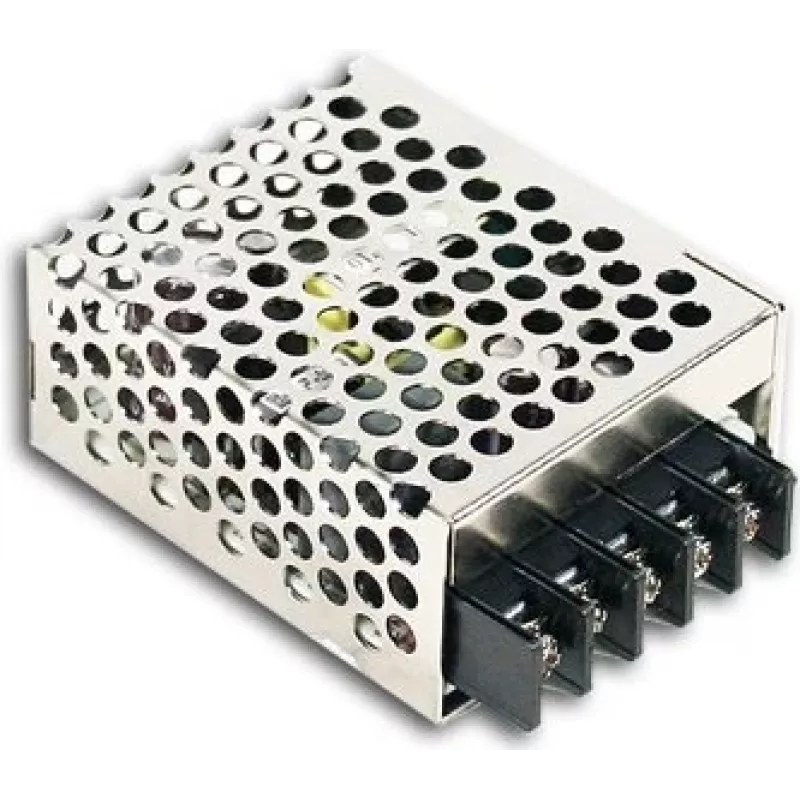

The MEAN WELL RS-15-5 is a compact 15-watt enclosed switching power supply delivering a stable 5V DC output at up to 3A, ideal for powering sensitive electronics, LED lighting, and industrial control systems. Its universal AC input range of 85–264VAC and 47–63Hz frequency support makes it suitable for worldwide use without any switches or adjustments.

Advantages

Built into a rugged metallic case, the RS-15-5 offers excellent protection against short circuits, overload, and overvoltage, ensuring long-term reliability. With a typical efficiency of 78% and free air convection cooling, it operates silently and requires no forced airflow. The compact chassis-mount design saves space in control panels and equipment enclosures.

Suitable for

• Industrial automation and control systems
• LED lighting and signage
• Telecommunication devices
• Test and measurement instruments
• Security and access control systems

Key specifications

• Output: 5V DC, 3A, 15W
• Input: 85–264VAC, 47–63Hz, 0.35A/115VAC, 0.25A/230VAC
• Protections: Short circuit, overload, overvoltage
• Operating temperature: -20°C to +70°C
• Ripple & noise: 80mVp-p max
• Line regulation: ±0.5%, Load regulation: ±1.0%
• Safety: UL60950-1, TUV EN60950-1; EMC: EN55022 Class B
• Cooling: Free air convection
• Enclosure: Metallic case, chassis mount

Recommendations

For reliable DC power in demanding environments, the MEAN WELL RS-15-5 offers proven performance and global compliance. Its robust metal housing and comprehensive protections make it a trusted choice for OEMs and system integrators.
