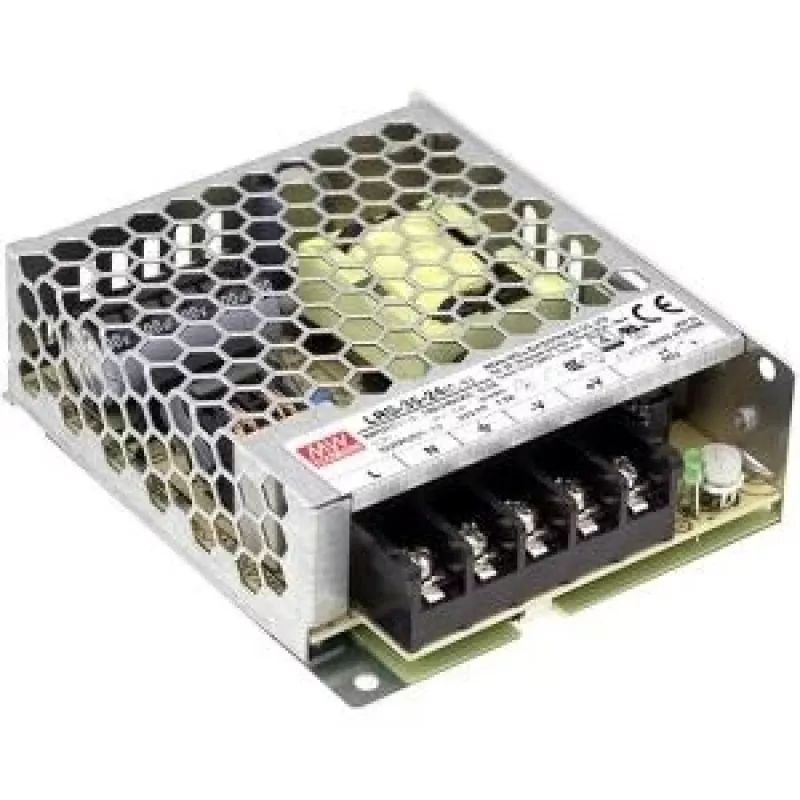

Fonte de alimentação fechada MEAN WELL LRS-35-5 35W 5V 7A

The MEAN WELL LRS-35-5 stands out in the 35-watt power supply class by combining a compact, perforated metal enclosure with a remarkably wide input voltage range of 85–264 VAC. Unlike many budget units that sacrifice efficiency or thermal headroom, this model delivers a stable 5 VDC output at up to 7 A while maintaining 83% efficiency and full operation from -20°C to 70°C under free air convection. Its low no-load power consumption and compliance with multiple international safety and EMC standards make it a future-proof choice for industrial, automation, and LED applications.

Highlights

• 35 W continuous output power with 5 VDC / 7 A single output
• Universal AC input (85–264 VAC) and DC input (120–370 VDC)
• High efficiency up to 83%, low ripple & noise <80 mVp-p
• Wide operating temperature range: -20°C to +70°C
• Protections: short circuit, overload, over voltage
• Compact enclosed design with perforated metal case for natural convection cooling
• Certified to UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16, CCC GB4943
• EMC compliant: EN55022 Class B, GB9254 Class B, EN55014

In daily use

Thanks to its chassis-mount form factor and screw terminal connections, the LRS-35-5 integrates quickly into control cabinets, machinery, or LED lighting systems. The free air convection cooling means no fan noise or maintenance, and the wide temperature tolerance ensures reliable starts even in cold environments. The built-in protections safeguard both the power supply and connected loads, reducing downtime in demanding industrial settings.

Full specifications

• Brand: MEAN WELL
• Model: LRS-35-5
• MPN: LRS-35-5
• EAN: 4021087027748
• Output power: 35 W
• Output voltage: 5 VDC
• Output current: 7 A
• Input voltage (AC): 85–264 VAC
• Input voltage (DC): 120–370 VDC
• Efficiency: 83%
• Ripple & noise: <80 mVp-p
• Setup, rise time: 500 ms, 20 ms / 230 VAC at full load
• Hold up time: 16 ms / 230 VAC at full load
• Operating temperature: -20°C to +70°C
• Cooling: Free air convection
• Enclosure: Perforated metal case
• Mounting: Chassis mount
• Number of outputs: 1
• Protections: Short circuit, overload, over voltage
• Safety standards: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16, CCC GB4943
• EMC standards: EN55022 Class B, GB9254 Class B, EN55014
• Dimensions (WxDxH): 99 x 82 x 30 mm (approx.)
• Weight: 0.22 kg (approx.)

Final note

For engineers and integrators seeking a reliable, standards-compliant 5V power source in a space-saving metal housing, the LRS-35-5 delivers consistent performance across a broad range of environmental conditions.
