Fonte de alimentação ininterrupta ONLINE USV-Systeme YUNTO 800 0,8 kVA

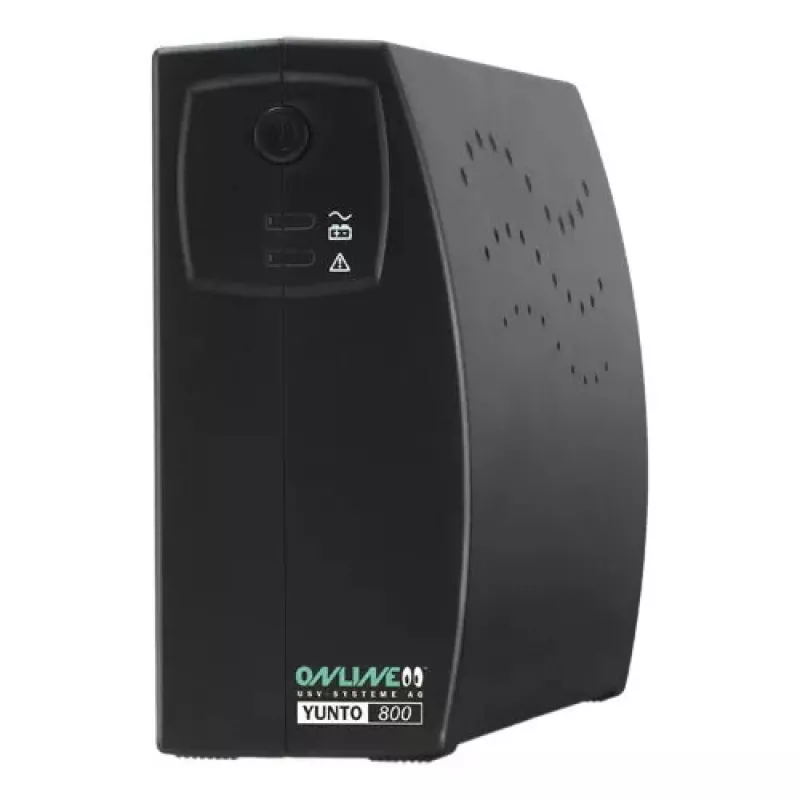

The ONLINE USV-Systeme YUNTO 800 0.8 kVA is a Line-Interactive uninterruptible power supply designed to protect small networks, workstations and electronic devices from power interruptions and voltage fluctuations. With a rated output of 0.8 kVA (480 W), three AC outlets with C13 couplers and an internal 9 Ah battery, the unit provides brief backup power to allow safe shutdown or ride-through during short outages. The compact black housing and IP20 rating make it suitable for indoor rack- or desk-mounted installations where space is limited.

Advantages

The UPS provides stable output and automatic voltage regulation to compensate for undervoltage and overvoltage without switching to battery when possible. A typical backup time at full load is approximately 2.5 minutes, enabling controlled shutdown of connected equipment. With an efficiency of 95% and a lightweight 3.5 kg enclosure, the device balances energy performance with portability. Conformity to EN62040-2:2006 and CE ensures compliance with relevant safety and electromagnetic compatibility standards.

Suitable for

• Home or small office desktop computers and peripherals
• Network devices such as routers, small switches and modems
• Point-of-sale terminals and small embedded systems
• Controlled shutdown of single workstations and external storage during short outages

Key specifications

• Topology: Line-Interactive
• Rated capacity: 0.8 kVA / 480 W
• Battery capacity: 9 Ah (internal)
• Typical backup time at full load: ~2.5 minutes

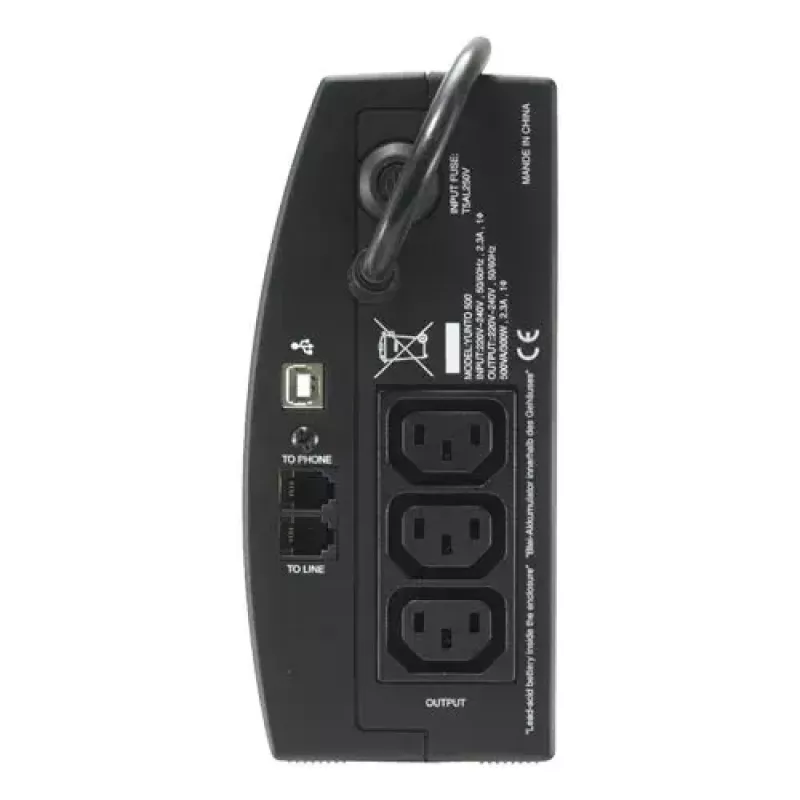

• Output connectors: 3 × AC C13 couplers
• Product colour: Black
• Efficiency: 95 %
• Ingress protection: IP20
• Weight: 3.5 kg
• Standards: EN62040-2:2006, CE

How to use

Place the UPS on a stable, ventilated surface in an indoor environment compliant with IP20 protection. Connect critical equipment to the three AC outlets provided and plug the UPS into a grounded mains socket. When powered, the unit will supply regulated output and switch to battery automatically if mains supply fails. Use the provided power management software or operating system shutdown features where available to configure safe shutdown procedures. Replace the internal battery following manufacturer guidelines and dispose of used batteries according to local regulations.

Recommendations

For reliable short-term backup and voltage regulation, connect only essential devices within the 480 W limit and verify total power draw before deployment. Keep the unit in a temperature-controlled, dust-free environment and schedule periodic battery checks to maintain expected backup performance.
