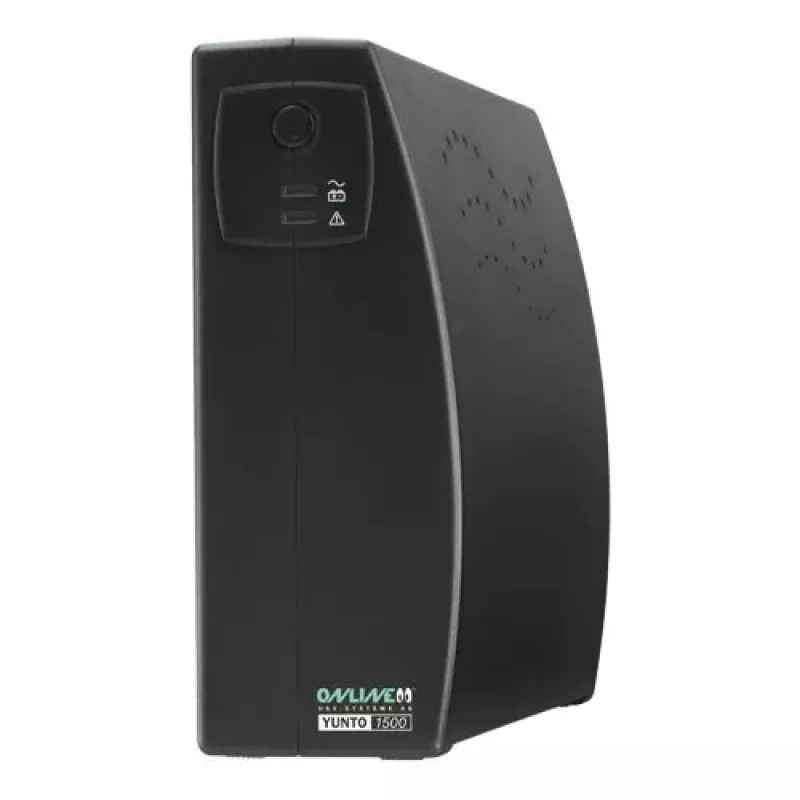

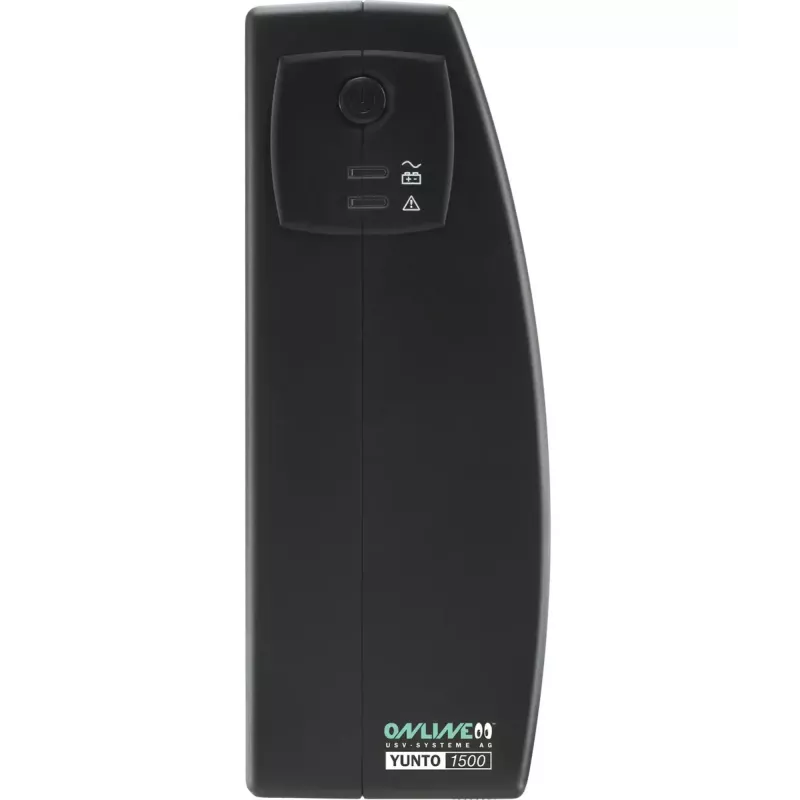

Fonte de alimentação ininterrupta UPS ONLINE USV-Systeme YUNTO 1500

The ONLINE USV-Systeme YUNTO 1500 is a Line-Interactive uninterruptible power supply designed to protect small servers, network devices and workstations from mains disturbances. With a rated output capacity of 1.5 kVA (900 W) it supplies power through five AC outlets (C13 couplers) and offers a compact, black housing with an IP20 rating. The internal battery (9 Ah) provides a brief backup time of approximately 2.5 minutes at full load, allowing orderly shutdowns or short-term continued operation during outages. Certified to EN62040-2:2006 and CE marked, the unit integrates a USB 2.0 port for basic communication and monitoring.

Advantages

The UPS combines line-interactive voltage regulation with battery backup to stabilise supply voltage and bridge short interruptions. Five AC outlets allow connection of multiple devices without additional power distribution hardware. The compact and relatively lightweight design (6.3 kg) simplifies installation in office or server-room environments where space is limited. Certification to EN62040-2:2006 and CE indicates that the device meets applicable safety and electromagnetic compatibility standards.

Suitable for

• Small office servers and network switches
• Workstations and desktop PCs
• Point-of-sale systems and routers/modems
• Equipment requiring short-term backup for safe shutdown

Key specifications

• Output power capacity: 1.5 kVA
• Output power: 900 W

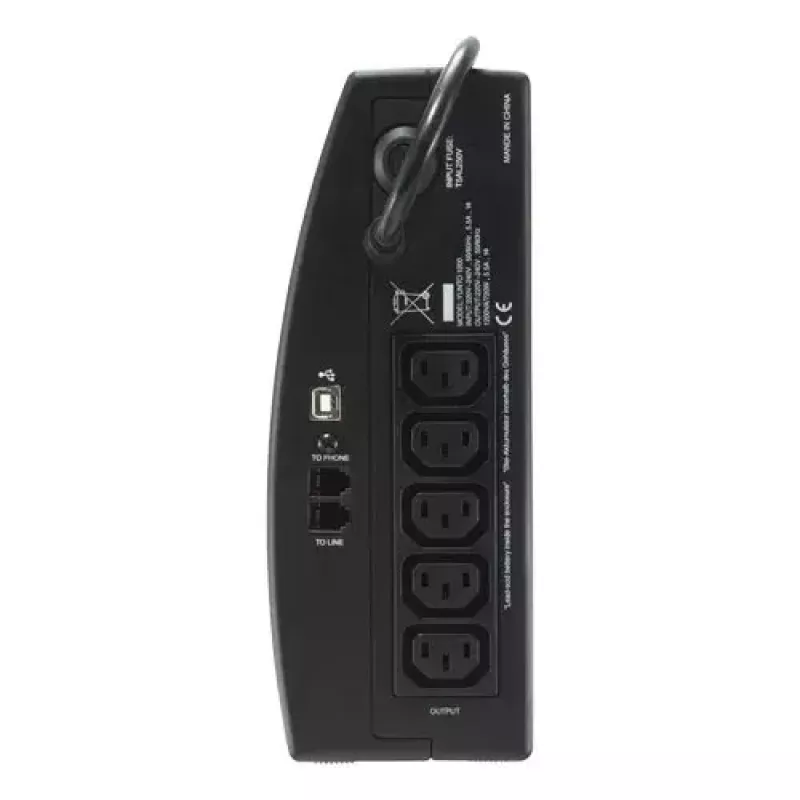

• AC outlets: 5 × C13 couplers
• Battery capacity: 9 Ah (internal)
• Approximate backup time: ~2.5 minutes at full load
• Communication: 1 × USB 2.0 port
• Colour: Black
• Weight: 6.3 kg
• Ingress protection: IP20
• Standards: EN62040-2:2006, CE

How to use

Place the UPS on a stable, level surface in a dry, ventilated location that complies with the IP20 protection rating. Connect the UPS to the mains supply and switch it on according to the user manual. Plug protected equipment into the AC outlets and, if required, connect a monitoring computer via the USB 2.0 port to enable basic status reporting. During mains interruptions the unit will switch to battery power automatically; observe load limitations to avoid exceeding the 900 W output capability. For intended short-term backup, initiate an orderly shutdown of connected systems when battery runtime is low.

Recommendations

For reliable operation, ensure the connected load does not exceed 900 W and allow adequate ventilation around the unit. Periodically test the UPS and replace the internal battery according to the manufacturer’s maintenance schedule or when capacity noticeably decreases. Do not expose the unit to water or dust beyond its IP20 rating and consult the product manual for safe disposal and battery handling instructions.
