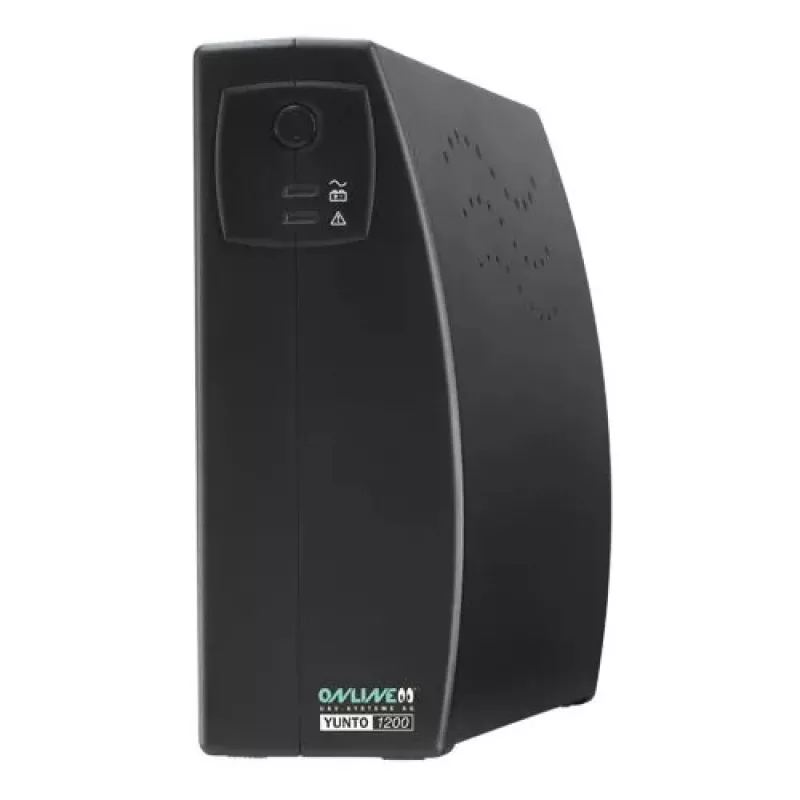

Sistema de alimentação ininterrupta ONLINE USV-Systeme YUNTO 1200 1,2 kVA

The ONLINE USV-Systeme YUNTO 1200 1.2 kVA is a compact Line-Interactive uninterruptible power supply designed to deliver short-term backup power and basic voltage regulation for small IT equipment and network devices. With a rated apparent power of 1.2 kVA and an output power of 720 W, the unit provides power through five AC outlets (C13 coupler) and uses a 24 V battery bank with 7 Ah capacity. Typical runtime at full load is approximately 3 minutes, making this UPS suitable for orderly shutdowns or bridging brief outages. The device is finished in black, weighs 5.4 kg and complies with EN62040-2:2006 and CE requirements; it has an IP20 enclosure rating.

Advantages

The YUNTO 1200 combines compact dimensions and moderate capacity to support small server racks, network switches, routers, workstations or point-of-sale systems while occupying limited space. Its Line-Interactive topology provides automatic voltage regulation and quick switchover to battery on mains disturbances. With 95% efficiency under typical conditions, the UPS minimizes energy losses during normal operation. Certification to EN62040-2:2006 and CE indicates conformity with relevant safety and electromagnetic compatibility standards.

Suitable for

• Small office servers and network cabinets
• Workstations and desktop PCs requiring short-term backup
• Network equipment: switches, routers and modems
• Point-of-sale terminals and receipt printers
• Controlled shutdown of equipment during power interruptions

Key specifications

• Topology: Line-Interactive UPS
• Apparent power: 1.2 kVA
• Output power: 720 W
• Battery voltage: 24 V
• Battery capacity: 7 Ah
• Typical runtime at full load: ~3 minutes

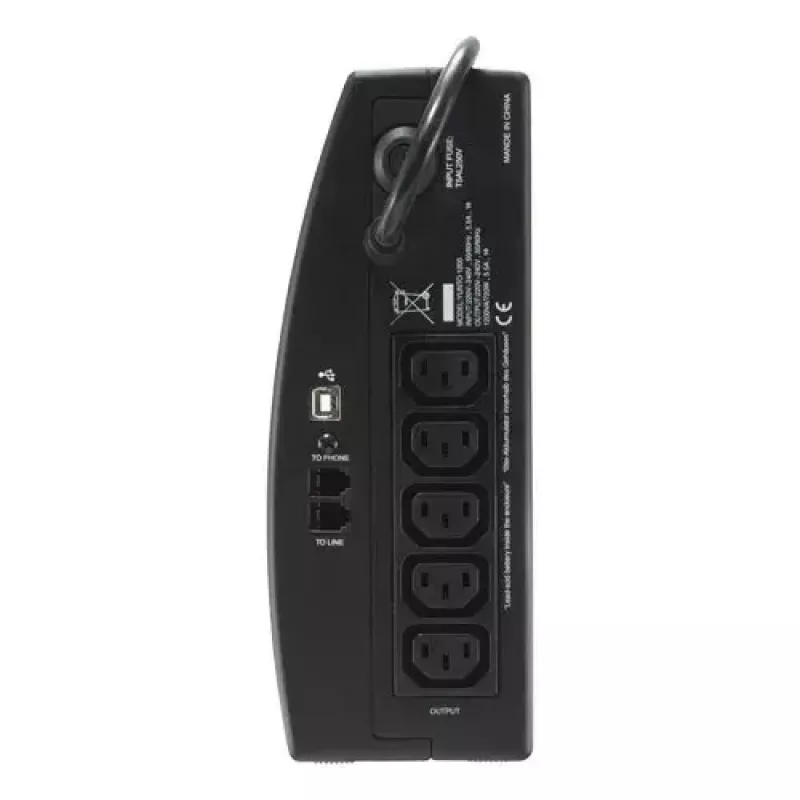

• Output connectors: 5 × C13 (AC outlets)
• Efficiency: 95%
• Enclosure rating: IP20
• Product colour: Black
• Weight: 5.4 kg
• Standards: EN62040-2:2006, CE

How to use

Position the UPS on a stable, level surface in a ventilated indoor location protected from moisture and excessive dust. Connect essential equipment to the C13 AC outlets, ensuring the total connected load does not exceed 720 W. Before use, verify the battery is charged according to the manufacturer’s initial charging procedure and follow local safety rules when connecting mains power. During mains presence the unit provides voltage regulation; if mains power fails, the UPS will switch to battery and supply connected devices for the available runtime, allowing for controlled shutdown or continuity until mains are restored.

Recommendations

For reliable performance, perform periodic battery checks and replace the battery when its capacity declines. Allow adequate cooling clearance around the unit, avoid overloading beyond the rated output power, and connect only critical devices to the UPS to maximize available runtime. Follow applicable maintenance and disposal regulations for batteries and electronic equipment.
