Fonte de alimentação ininterrupta (UPS) APC SRV6KRIRK dupla conversão (Online) 6 kVA 6000 W

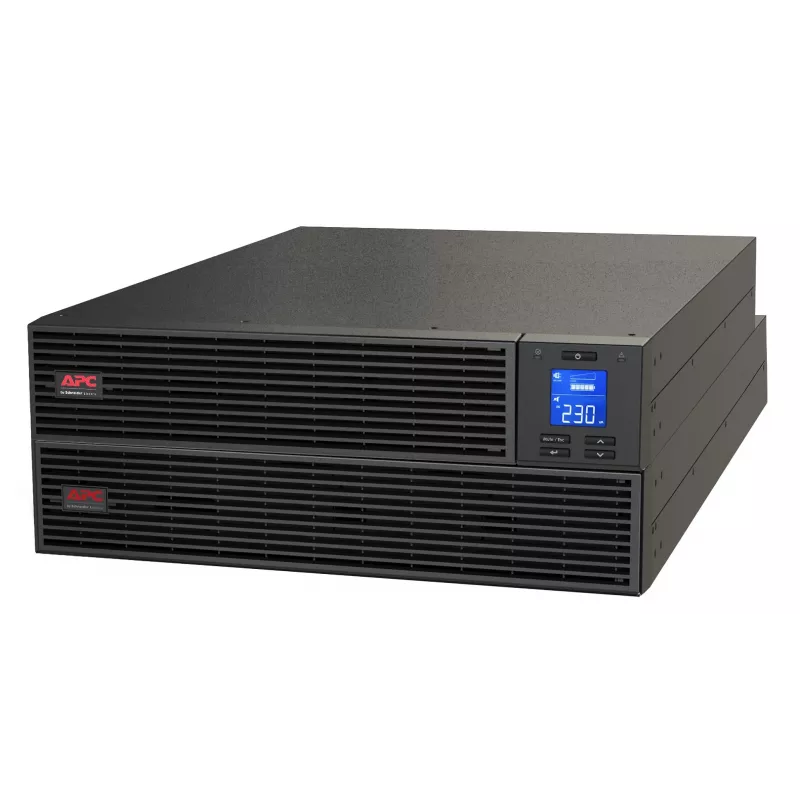

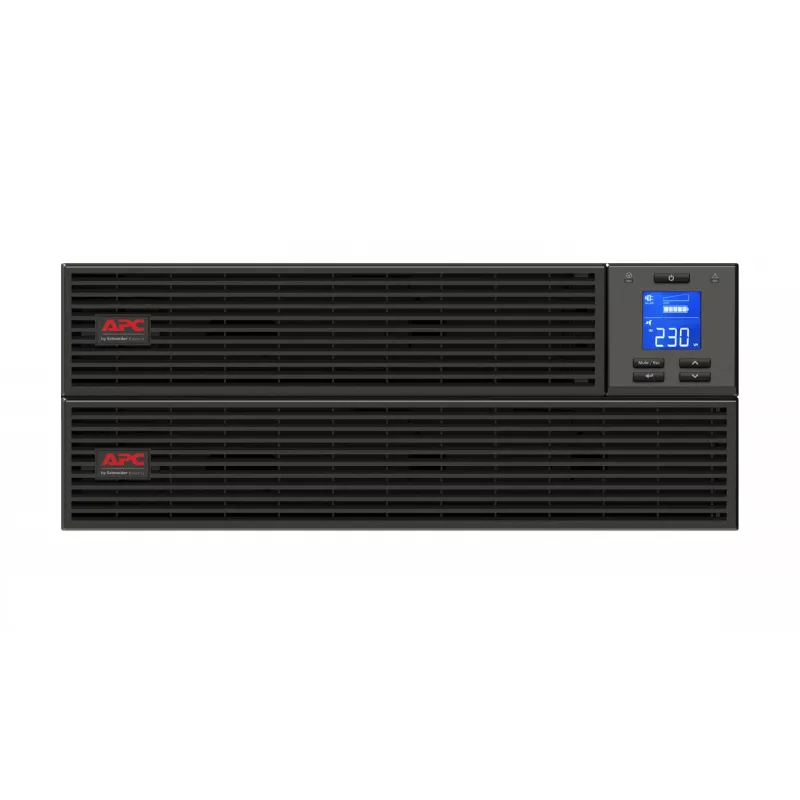

The APC Easy UPS On-Line SRV RM 6000 VA (model SRV6KRIRK) is a 6 kVA double-conversion online UPS engineered to provide reliable, continuous power for critical equipment. It delivers a 6000 W output at a nominal 230 V and is supplied in a rackmount form factor with included rail kit and an LCD for status monitoring. The unit complies with RoHS and REACH standards and ships with a CD containing management software and a printed user manual.

Advantages

Double-conversion online topology ensures stable, regulated output regardless of input voltage disturbances. Rackmount design and included mounting rails simplify integration into server cabinets. The unit’s hardwire 3-wire input and single USB 2.0 port allow for basic connectivity and monitoring, while compliance with RoHS and REACH reflects adherence to environmental and safety standards.

Suitable for

• Server racks and data centers with rackspace for 19-inch equipment
• Network and telecommunication equipment requiring continuous power
• Critical IT infrastructure where voltage regulation and low transfer time are required

Key specifications

• Output power capacity: 6 kVA (6000 W)
• Nominal output voltage: 230 V
• Topology: Double-conversion (online)

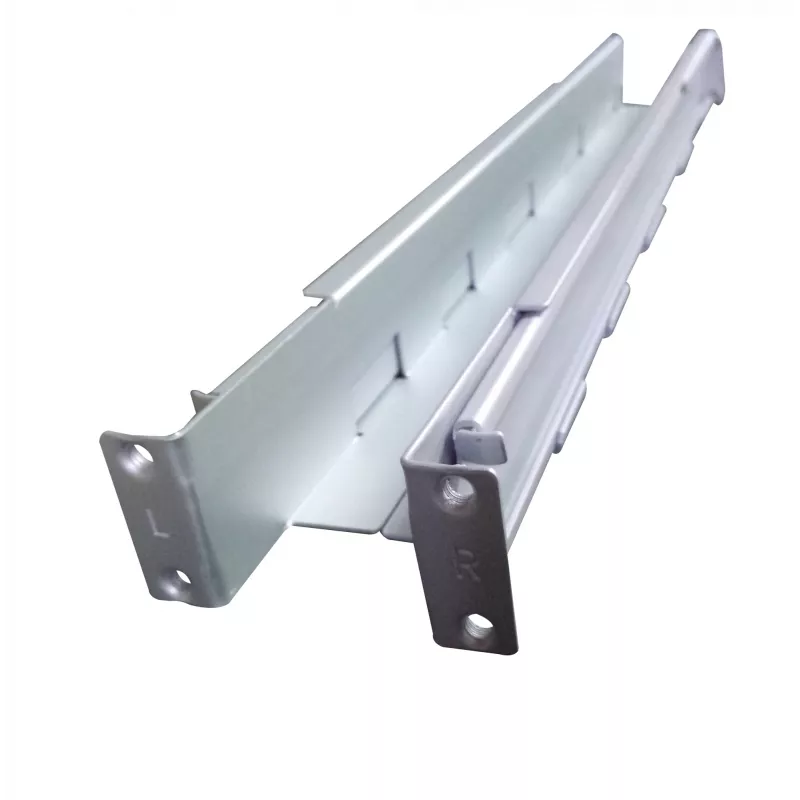

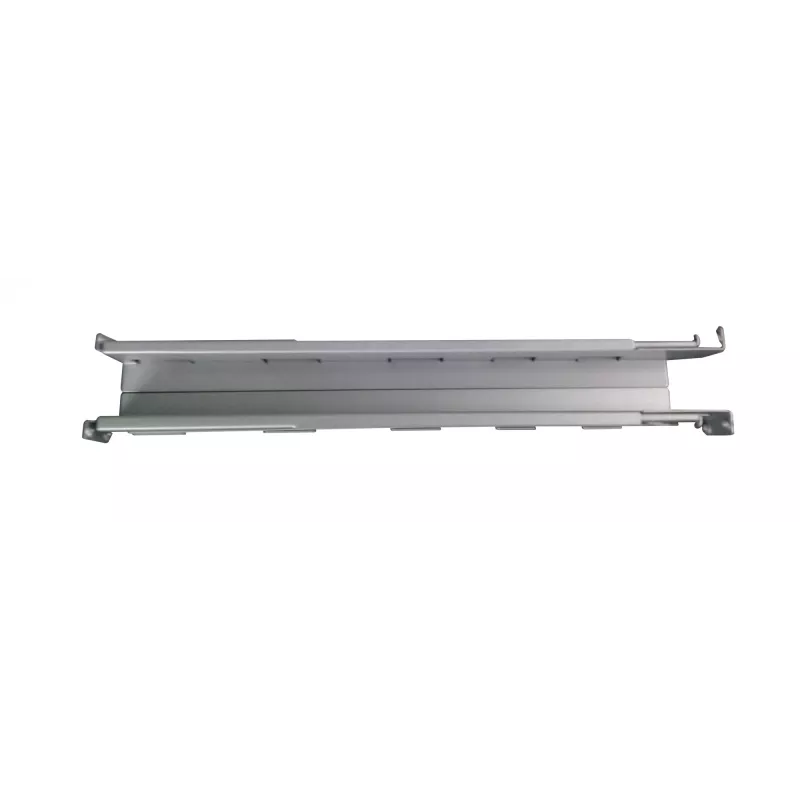

• Form factor: Rackmount with included rail kit
• Dimensions (W x D x H): 438 mm x 710 mm x 173 mm
• Weight: 61 kg

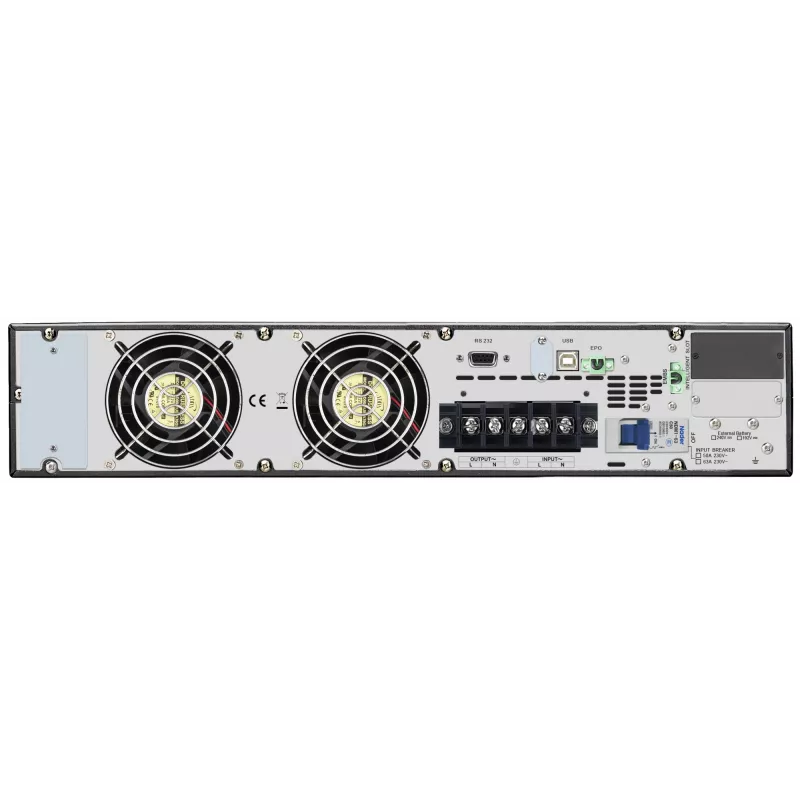

• Connectivity: 1 × USB 2.0 port; hardwire 3-wire input
• Color: Black

How to use

Install the UPS in a compatible 19-inch rack using the supplied rail kit, following the user manual for secure mounting and ventilation clearance. Connect the mains supply to the UPS using the hardwire 3-wire input per local electrical regulations. Attach critical equipment to the UPS output circuits. Use the LCD to monitor status and the included CD/software or USB connection for configuration and graceful shutdown settings. Ensure batteries (internal) are charged and the unit is tested after installation.

Recommendations

Place the UPS in a well-ventilated, climate-controlled environment, avoid exposure to moisture and excessive dust, and schedule periodic battery and functionality checks. For installation and wiring, follow national electrical codes and, if necessary, consult qualified personnel.
