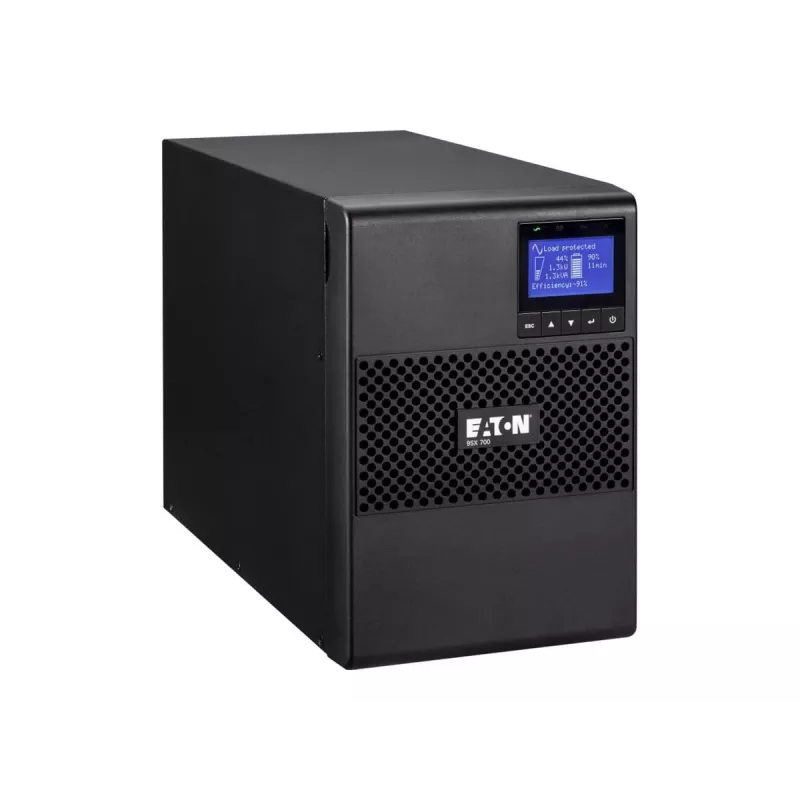

Fonte de alimentação ininterrupta UPS Eaton 9SX700I

The Eaton 9SX700I is an online double-conversion UPS in a mini-tower form factor that provides 0.7 kVA (630 W) of output power. Equipped with an LCD display and sealed lead-acid (VRLA) battery technology, it supplies reliable power backup for infrastructure, IT, networking, storage, telecom, industrial and medical equipment. The unit includes six C13 AC outlets and one USB 2.0 port, and is certified to IEC/EN 62040-1 and UL 1778 standards.

Advantages

The Eaton 9SX700I delivers continuous voltage regulation and frequency stabilization through double-conversion topology, ensuring clean power to connected devices. Its compact mini-tower design with an LCD makes monitoring and installation straightforward, while VRLA batteries provide maintenance-free backup. Multiple certifications attest to compliance with industry safety and performance requirements.

Suitable for

• Small servers and network equipment
• Storage devices and NAS systems
• Telecom and networking racks in small offices
• Medical and industrial devices requiring stable power

Key specifications

• Output power capacity: 0.7 kVA (630 W)
• AC outlets: 6 × C13
• USB ports: 1 × USB 2.0
• Battery type: Sealed lead-acid (VRLA)
• Form factor: Mini tower with LCD
• Weight: 11.5 kg
• Certifications: IEC/EN 62040-1, UL 1778
• Colour: Black

How to use

Place the Eaton 9SX700I on a stable, flat surface in a well-ventilated location. Connect critical equipment to the C13 AC outlets, and optionally connect a management device via the USB 2.0 port for monitoring. Ensure the UPS batteries are charged before relying on backup operation. Follow the manufacturer's user manual for initial setup, battery replacement procedures and any configuration of the LCD menu.

Recommendations

For optimal runtime, calculate expected load and avoid overloading the UPS; at approximately half load the typical backup time is around 14 minutes. Regularly verify battery health and perform firmware or management software updates as provided by Eaton.
