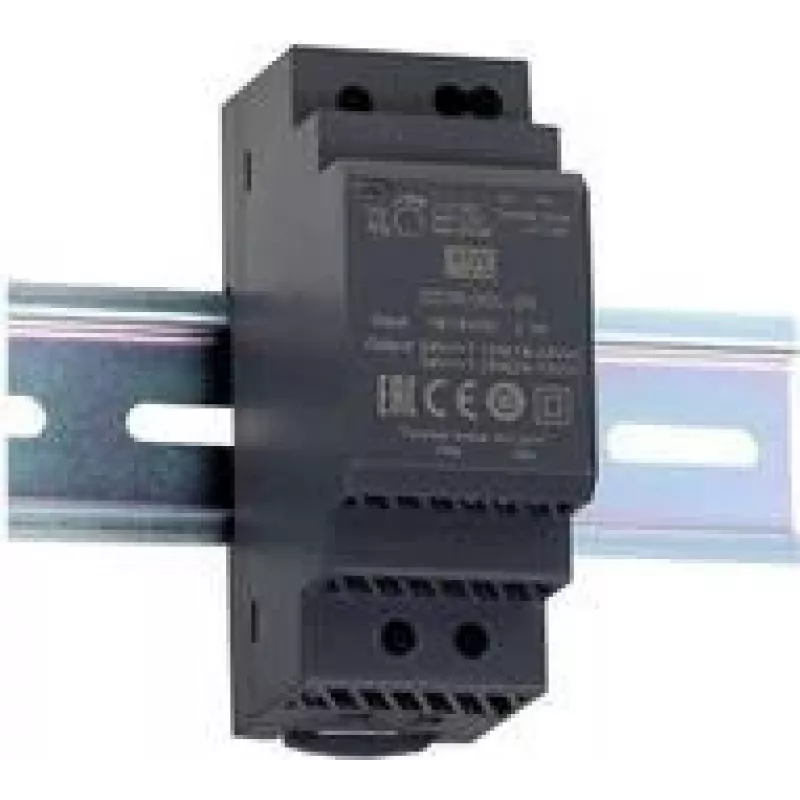

Fonte de alimentação MEAN WELL DDR-30G-15 30 W 15 V 2 A

The MEAN WELL DDR-30G-15 is an ultra-slim industrial DC-DC DIN-rail converter that accepts a wide input range of 9–36 VDC and provides a single regulated 15 VDC output up to 2 A (30 W). With a compact housing (35 mm width × 54.5 mm depth × 90 mm height) and RoHS compliance, this module is intended for space‑constrained control cabinets and industrial automation applications where a reliable 15 V supply is required.

Advantages

The converter offers a slim DIN-rail form factor that saves panel space, a wide input voltage range for compatibility with various battery and bus systems, and a regulated 15 V output rated at 2 A for stable device operation. Its compact dimensions and RoHS compliance make it suitable for professional electrical installations and industrial environments.

Suitable for

• Industrial control panels and PLC modules
• Automation equipment and sensors requiring 15 V
• Battery-backed systems and vehicles with 9–36 V buses
• Space-limited DIN-rail installations

Key specifications

• Product: MEAN WELL DDR-30G-15
• Type: DC-DC DIN-rail converter
• Input voltage: 9–36 VDC
• Output: 15 VDC, 2 A (30 W)
• Dimensions (W × D × H): 35 × 54.5 × 90 mm
• Compliance: RoHS
• Brand: mean well
• MPN: DDR-30G-15
• EAN: 4021087050777

How to use

Mount the DDR-30G-15 on a standard DIN rail inside an electrical cabinet. Connect the DC input to a suitable 9–36 V source observing correct polarity and proper fusing according to system requirements. Connect the 15 VDC output to the load, ensuring the total load current does not exceed 2 A. Verify wiring and secure terminal connections before applying power.

Recommendations

Install the converter in a well-ventilated area away from direct heat sources; observe the manufacturer's clearance requirements and use appropriate protective devices (fuses, circuit breakers) and wiring sizes per local electrical codes.
