Fonte de alimentação Mean Well GST220A36-R7B 220 W, saída 36 V, entrada 85–264 V, RoHS, 85×210×46 mm

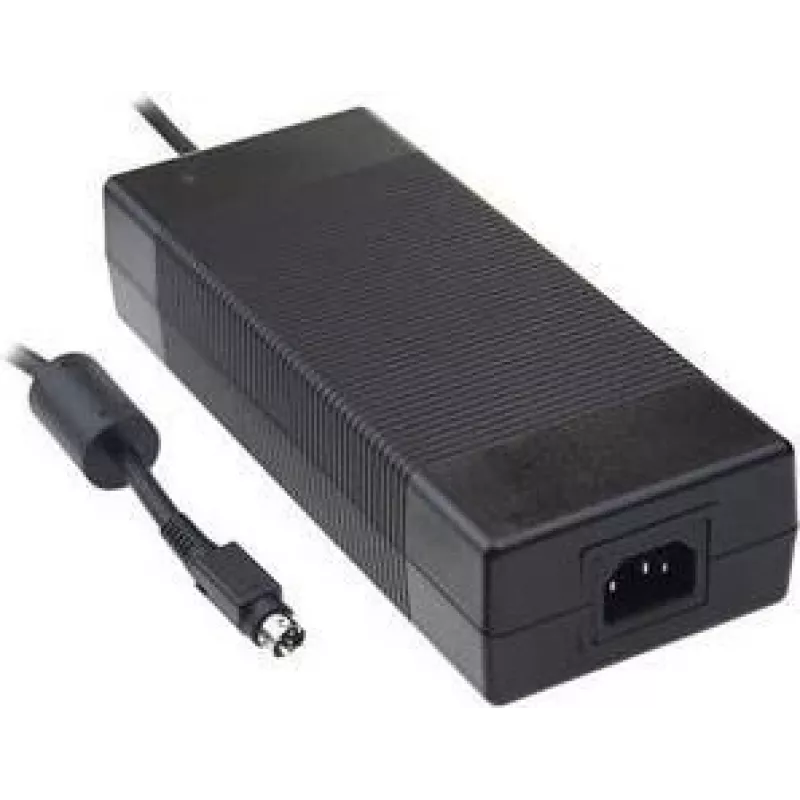

Mean Well GST220A36-R7B is an industrial AC-DC desktop adapter with active PFC that converts a wide input range (85–264 V AC) to a stable 36 V DC output at up to 6.1 A. The unit delivers 220 W of power in a compact enclosure (85 × 210 × 46 mm) and features a 3‑pole IEC320‑C14 AC inlet for straightforward connection. It is RoHS compliant and intended for industrial and commercial equipment that requires reliable 36 V DC supply.

Advantages

The adapter provides a stable 36 V output with 6.1 A current capacity and 220 W total power, includes power factor correction (PFC) for improved efficiency on mains supply, and accepts a wide input voltage range (85–264 V) for global compatibility. Its compact desktop form factor and IEC320‑C14 inlet simplify installation and replacement in equipment racks and workstations. RoHS compliance ensures reduced hazardous substances in the product.

Suitable for

• Industrial control equipment and automation devices
• Commercial electronics requiring 36 V DC power
• Bench-top or desktop installations where compact adapters are needed
• Applications that need wide‑range mains compatibility (85–264 V)

Key specifications

• Model: Mean Well GST220A36-R7B
• Output: 36 V DC, 6.1 A (220 W)
• Input voltage: 85–264 V AC
• AC inlet: 3‑pole IEC320‑C14
• Size: 85 × 210 × 46 mm
• Compliance: RoHS

How to use

Connect the adapter to the mains using an appropriate IEC C13 power cord to the IEC320‑C14 inlet. Verify the input voltage is within the specified 85–264 V range before powering on. Connect the DC output to the equipment requiring 36 V, observing correct polarity and secure connections. Allow adequate ventilation around the adapter during operation and mount or place it on a stable, non‑conductive surface.

Recommendations

Use appropriate overcurrent protection on the DC side and ensure the connected load does not exceed 6.1 A. For installation in electrically noisy or harsh environments, consider additional filtering or protective measures and follow local electrical safety regulations.
