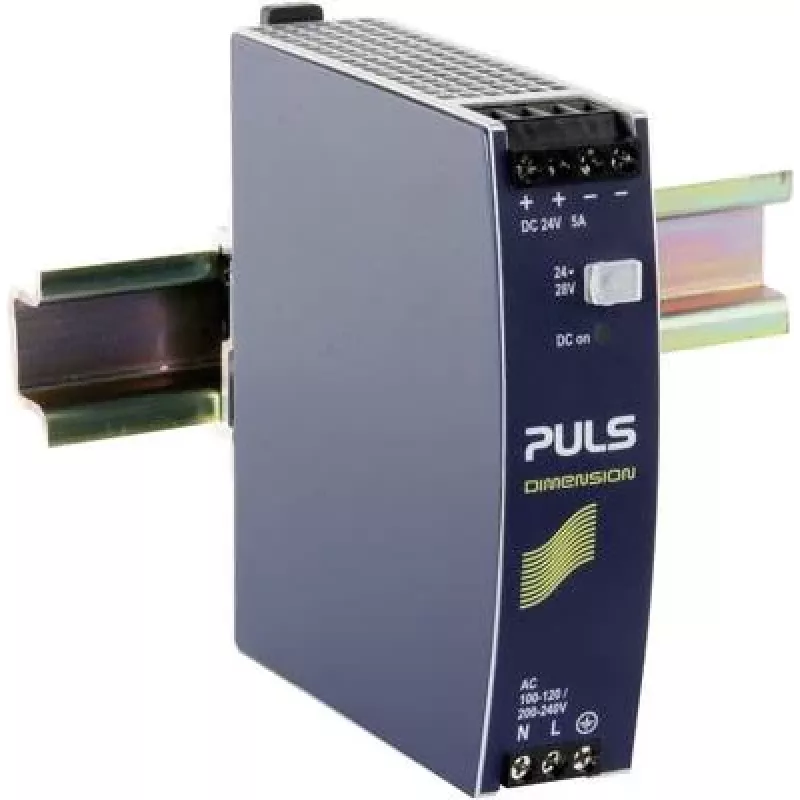

Fonte de alimentação para calha DIN PULS DIMENSION CS5.241 24V DC 5A 120W

The PULS DIMENSION CS5.241 sets itself apart with active power factor correction and a DC-OK relay contact, delivering stable 24 V DC power for industrial control systems. Its convection-cooled design and wide input range ensure reliable operation without derating up to 70 °C.

Highlights

• Output: 24 V DC, 5 A, 120 W
• Input: 100-240 V AC or 90-300 V DC
• Efficiency: 90.5% at 230 V AC
• DIN rail mounting (TS35/7.5 or TS35/15)
• Active PFC and DC-OK relay contact

In daily use

The CS5.241's screw terminals and compact DIN rail housing simplify installation in control cabinets. Its constant current overload protection with auto-recovery and >20 ms hold-up time maintain uptime during brief voltage dips.

Full specifications

• Output voltage: 24 V DC
• Output current: 5 A
• Output power: 120 W
• Input voltage AC: 100-240 V AC (-15% / +10%)
• Input voltage DC: 90-300 V DC
• Input frequency: 45-66 Hz
• Efficiency: 90.5% at 230 V AC
• Output ripple & noise: <50 mVpp
• Hold-up time: >20 ms at 120 W, 100 V AC
• Operating temperature: -25 to +70 °C
• MTBF: >1,000,000 hours
• Connection: Screw terminals
• Cooling: Convection
• Overload protection: Constant current, auto-recovery
• Harmonic correction: Active PFC

Final note

With its wide input range and high MTBF, the CS5.241 is a dependable choice for demanding industrial environments.
