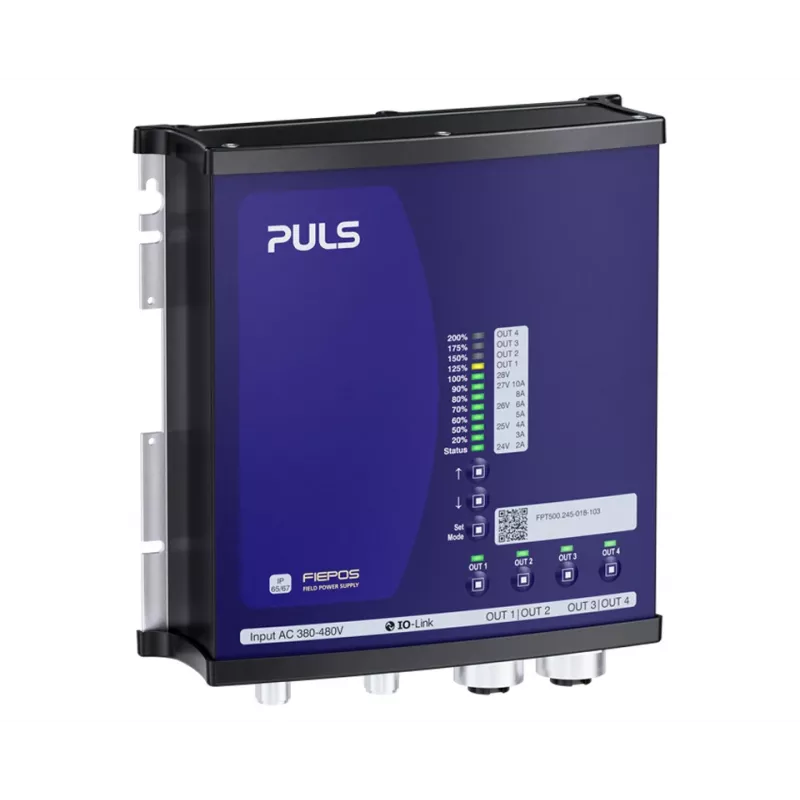

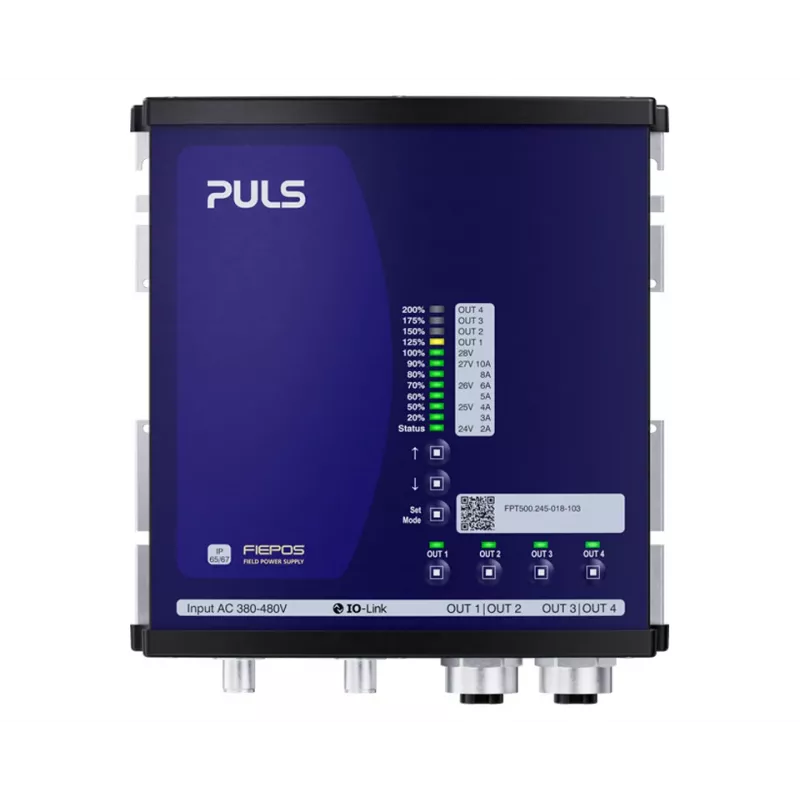

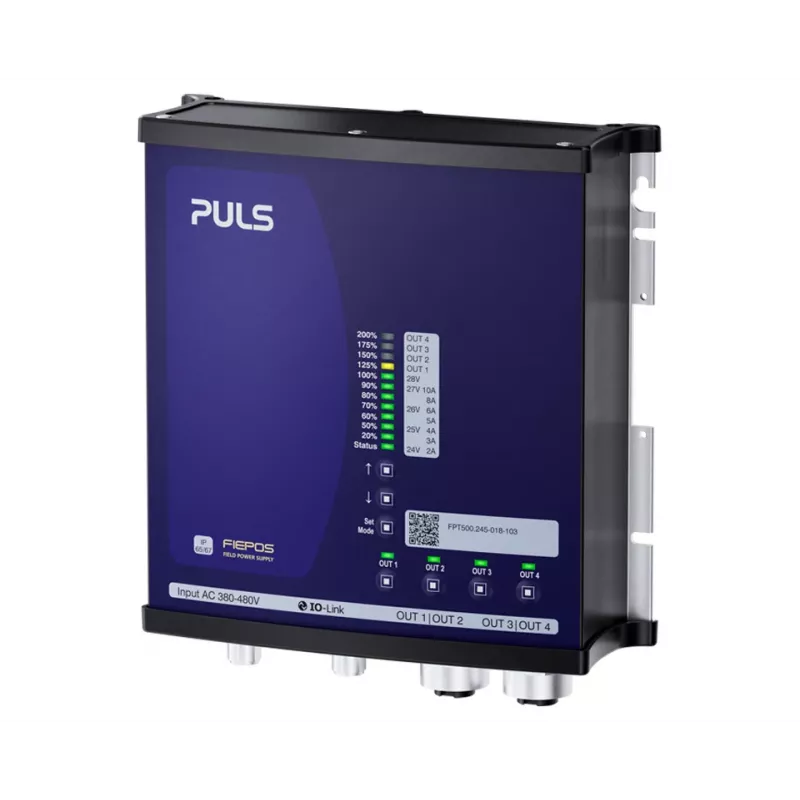

Fonte de alimentação PULS FPT500.245-018-103 24 V 20,8 A 500 W 4 saídas M12

The PULS FPT500.245-018-103 is a 4-output power supply from the FIEPOS FPT series, delivering 24 VDC with a total output of 500 W. Unlike typical DIN-rail units, it is designed for direct machine mounting and features M12 connectors for secure, decentralized power distribution in industrial environments.

Highlights

• 4 outputs with M12 connectors for flexible power distribution
• High efficiency up to 94.8% with active power factor correction
• Wide input voltage range: 85–264 VAC
• Protection rating IP65/IP67 for harsh conditions
• Operating temperature range: -25°C to +70°C

In daily use

This power supply excels in applications requiring reliable 24 VDC power across multiple loads, such as sensor/actuator systems or decentralized control cabinets. Its robust design and high efficiency reduce energy costs and ensure stable operation even in demanding environments.

Full specifications

• Output voltage: 24 VDC
• Output current: 20.8 A
• Output power: 500 W
• Number of outputs: 4
• Output connector type: M12
• Input voltage range: 85–264 VAC
• Input frequency: 45–65 Hz
• Efficiency: up to 94.8%
• Protection rating: IP65 / IP67
• Operating temperature range: -25°C to +70°C
• Mounting type: direct machine mounting
• Power factor correction: active (>0.95)
• Protection features: overload, overvoltage, short circuit, overtemperature
• Series: FIEPOS FPT
• Hold-up time: >20 ms (at 230 VAC)
• Approvals: UL, CE, EAC

Final note

With its compact, decentralized design and high performance, the FPT500.245-018-103 is a reliable choice for modern industrial power distribution.
