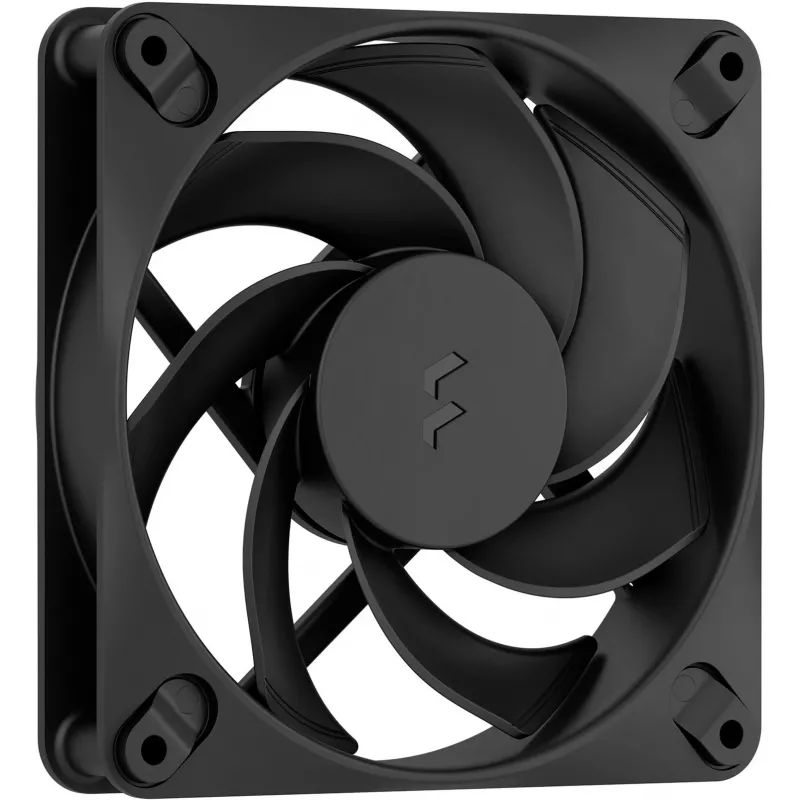

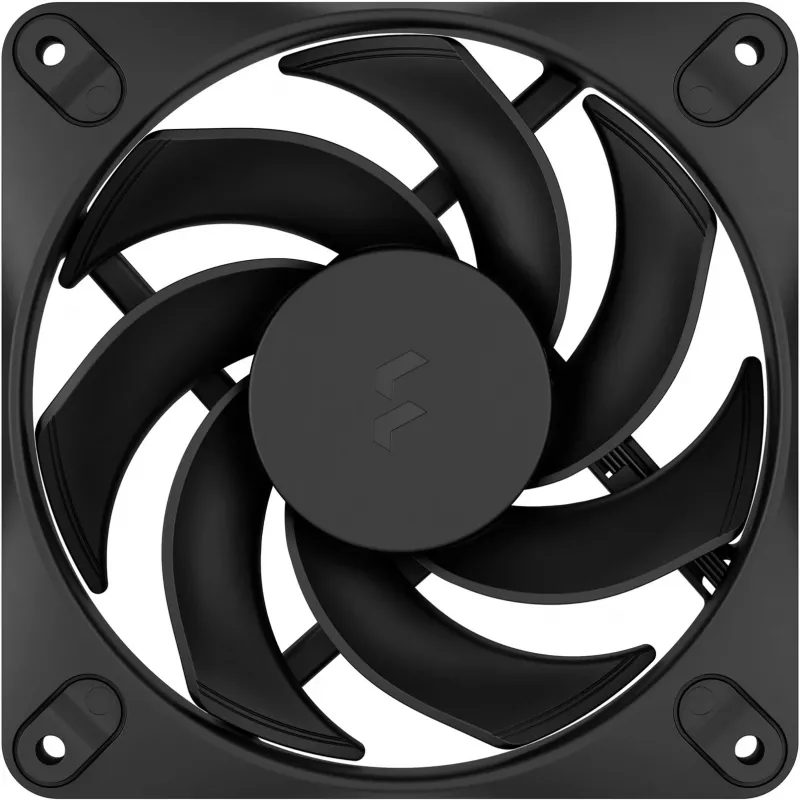

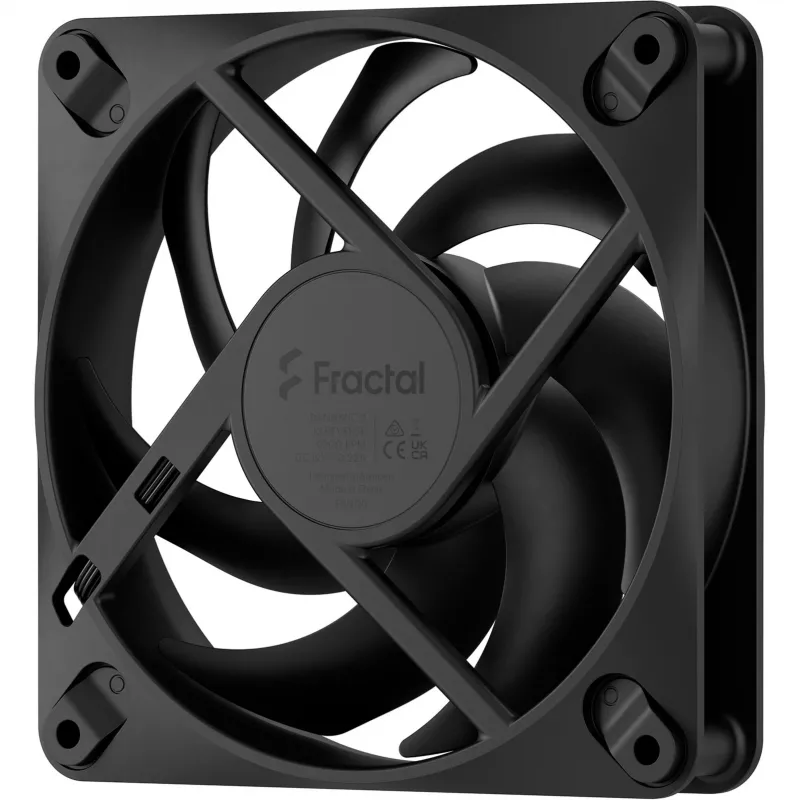

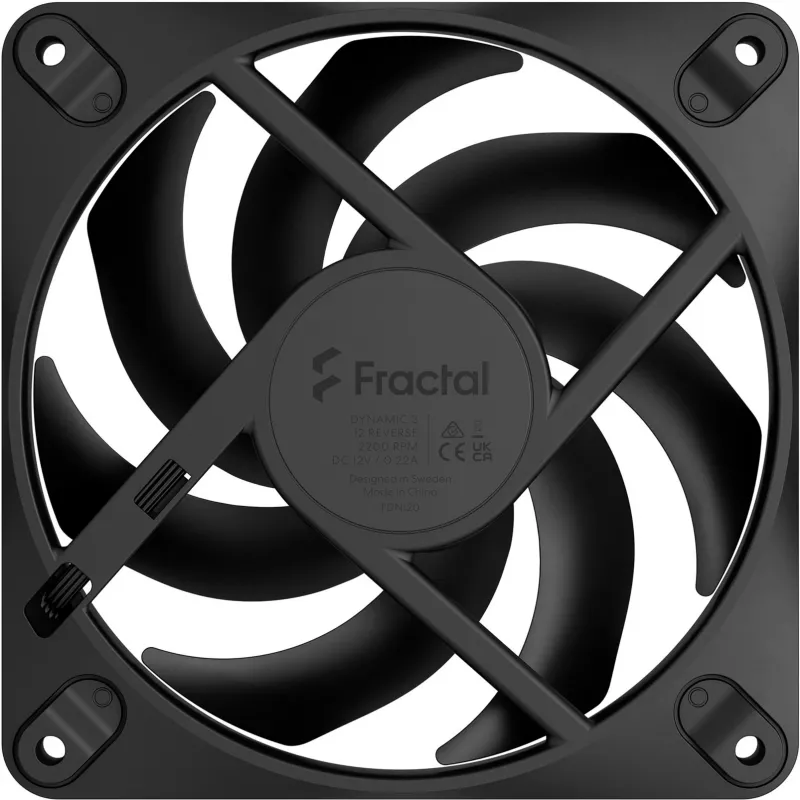

Fractal Design Dynamic 3-12 Reverse Ventoinha de caixa preta 120mm (FD-F-DY3-1202)

The Fractal Design Dynamic 3-12 Reverse Black is a high-performance 120mm case fan designed for optimal airflow in PC builds. Featuring a reverse blade design, it draws air from the front, making it ideal for intake configurations where aesthetics or clearance require the fan to be mounted with the frame facing outward. With PWM control, the fan speed ranges from 500 to 2000 RPM, delivering up to 56.2 CFM of airflow and 2.3 mmH2O static pressure while maintaining a low noise level of 32.7 dBA. The LDB (Long Life Sleeve) bearing ensures a long lifespan of 100,000 hours MTTF.

Advantages

Reverse blade design for intake from the front, PWM control for precise speed adjustment, high static pressure for restricted spaces, and durable LDB bearing for extended reliability.

Suitable for

• PC case intake fans where reverse airflow is needed
• Radiator or heatsink fans requiring high static pressure
• Silent or performance-oriented builds

Key specifications

• Fan Size: 120 mm
• Fan Type: Case Fan
• Airflow Direction: Reverse (Intake from front)
• Bearing Type: LDB (Long Life Sleeve Bearing)
• PWM Control: Yes
• Connector: 4-pin PWM
• Fan Speed: 500 - 2000 RPM (±10%)
• Max Airflow: 56.2 CFM
• Max Static Pressure: 2.3 mmH2O
• Max Noise Level: 32.7 dBA
• Rated Voltage: 12V DC
• Rated Current: 0.18 A
• Power Consumption: 2.16 W
• MTTF: 100,000 hours
• Color: Black
• Cable Length: 500 mm

Recommendations

For optimal performance, pair this fan with a PWM-capable motherboard or fan controller. Ensure proper clearance for reverse airflow direction.
