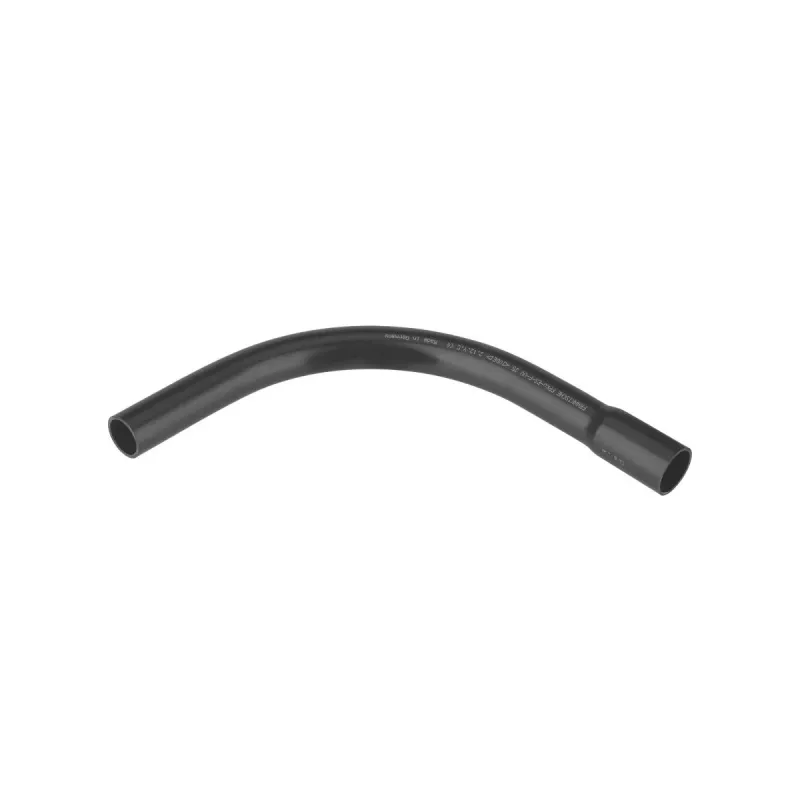

Curva de encaixe FRAENKISCHE ROHRWERKE SBSKu-E-UV 20 preto curvatura de tubo 90° 20mm estabilizado a UV 22661020

The FRAENKISCHE ROHRWERKE Steckbogen SBSKu-E-UV 20 offers a quick push-fit solution for changing direction in rigid conduit installations. Unlike standard elbows that require glue or threading, this bend snaps securely onto compatible 20 mm conduit, saving installation time and ensuring a reliable connection even in demanding environments.

Highlights

• 90° bend for 20 mm rigid conduit
• Push-fit connection for fast, tool-free assembly
• UV-stabilized black polypropylene for outdoor use
• High impact resistance and halogen-free
• Self-extinguishing and suitable for concrete embedding

In daily use

This bend is ideal for routing cables around corners in surface-mounted, flush-mounted, or concrete installations. Its robust construction withstands mechanical stress and UV exposure, making it a dependable choice for outdoor and exposed applications. The push-fit design reduces labor and ensures a tight, secure joint.

Full specifications

• Product type: Conduit bend / elbow
• Nominal diameter: 20 mm
• Bend angle: 90°
• Material: Polypropylene (PP)
• Colour: Black
• UV resistance: UV-stabilized
• Halogen-free: Yes
• Impact resistance: High
• Connection type: Push-fit
• Temperature range: -25°C to +60°C
• Flame retardant: Self-extinguishing
• Compression strength: 750 N
• Standard: DIN EN 61386-21

Final note

For professional electrical installations where speed and reliability matter, the SBSKu-E-UV 20 delivers a secure 90° transition without the need for adhesives or special tools.
