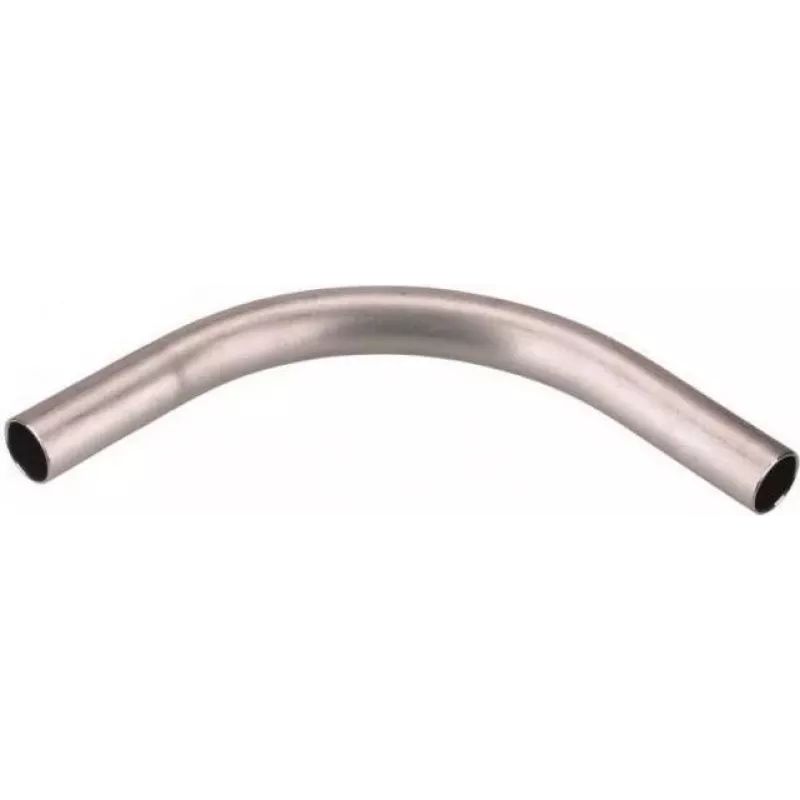

FRAENKISCHE ROHRWERKE cotovelo push-fit 90° em alumínio M20 para tubos metálicos rígidos ABS-E 20 (20960020)

Electricians installing rigid metal conduit systems in industrial plants, commercial buildings, or outdoor installations often need a reliable 90-degree change of direction without the hassle of threading or complex fittings. The FRAENKISCHE ROHRWERKE Aluminium Push-Fit Bend ABS-E 20 (M20) solves this with a simple push-fit connection that locks securely onto the conduit, saving time and ensuring a durable, corrosion-resistant joint.

Key specifications

• Material: Aluminium, halogen-free and non-flammable
• Nominal diameter: M20 (fits 20 mm rigid metal conduits)
• Bend angle: 90° with a bend radius of 60 mm
• Connection type: Push-fit (Steckverbindung) – no threading required
• Protection class: IP65 when installed correctly
• Temperature range: -45°C to +250°C
• Standards: DIN EN 61386-21
• Colour: Aluminium (metallic)

Why choose it

This bend is crafted from high-grade aluminium, offering excellent corrosion and UV resistance for long-term performance even in harsh environments. Its push-fit design eliminates the need for special tools or threading, speeding up installation and reducing labour costs. The wide temperature tolerance makes it suitable for both cold storage facilities and high-heat industrial areas, while the IP65 rating ensures protection against dust and water jets.

Ideal use cases

• Routing rigid metal conduits around corners in surface-mounted, flush-mounted, or concrete installations
• Industrial machinery wiring where vibration resistance and durability are critical
• Outdoor electrical installations exposed to weather and UV radiation
• Hazardous areas requiring non-flammable, halogen-free components

Good to know

The ABS-E 20 is compatible with standard M20 rigid metal conduits and can be used in hollow walls, concrete, and surface-mounted setups. Its inner diameter of approximately 18.5 mm allows smooth cable pulling, while the outer diameter matches the conduit for a seamless fit. Always ensure the conduit is fully inserted into the push-fit connection to achieve the specified IP65 protection.
