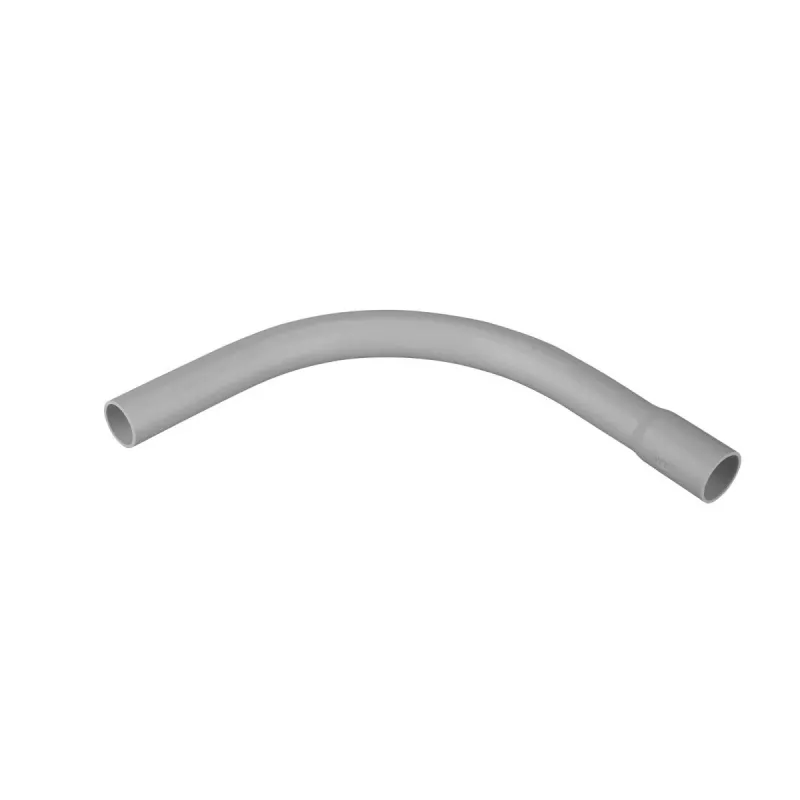

Curva de tubo guia a 90° FRAENKISCHE SBSKu-EM 32, polipropileno cinzento, para tubos guia FPKu-EM-F

With a 750 N compression strength, this 90° conduit bend routes FPKu-EM-F and SBSKu-EM conduits through tight corners without compromising cable protection. The push-fit installation locks instantly onto 32 mm corrugated conduits, cutting assembly time on site while maintaining a secure, rattle-free connection.

Overview

The FRAENKISCHE SBSKu-EM 32 is a grey plastic bend engineered for medium-duty electrical installations. It joins flexible corrugated conduits of the FPKu-EM-F and SBSKu-EM series, allowing a clean 90° change of direction. The fitting is made from halogen-free polypropylene with a compression strength of 750 N, suitable for concrete embedding and protected indoor runs.

What stands out

• Push-fit design: no tools or adhesives required — simply insert the conduit until it clicks.
• Flame-retardant and halogen-free: meets strict safety requirements for building wiring.
• High compression resistance: 750 N rating allows direct embedding in concrete or screed.
• Compatible with FPKu-EM-F and SBSKu-EM conduits: integrates seamlessly into existing FRAENKISCHE systems.
• Grey RAL 7035 finish: neutral colour blends with standard installation environments.

Technical details

• Product type: conduit bend / elbow
• Material: polypropylene (PP)
• Nominal diameter: 32 mm
• Bend angle: 90°
• Colour: grey (RAL 7035)
• Installation type: push-fit / plug-in
• Conduit compatibility: FPKu-EM-F and SBSKu-EM conduits
• Compression strength: medium (750 N)
• Impact resistance: medium
• Temperature range: -5°C to +90°C
• Flame retardant: yes
• Halogen-free: yes
• Standard: EN 61386-21

Our verdict

A robust, tool-free bend that ensures secure conduit routing in demanding installations, backed by halogen-free safety and concrete-ready strength.
