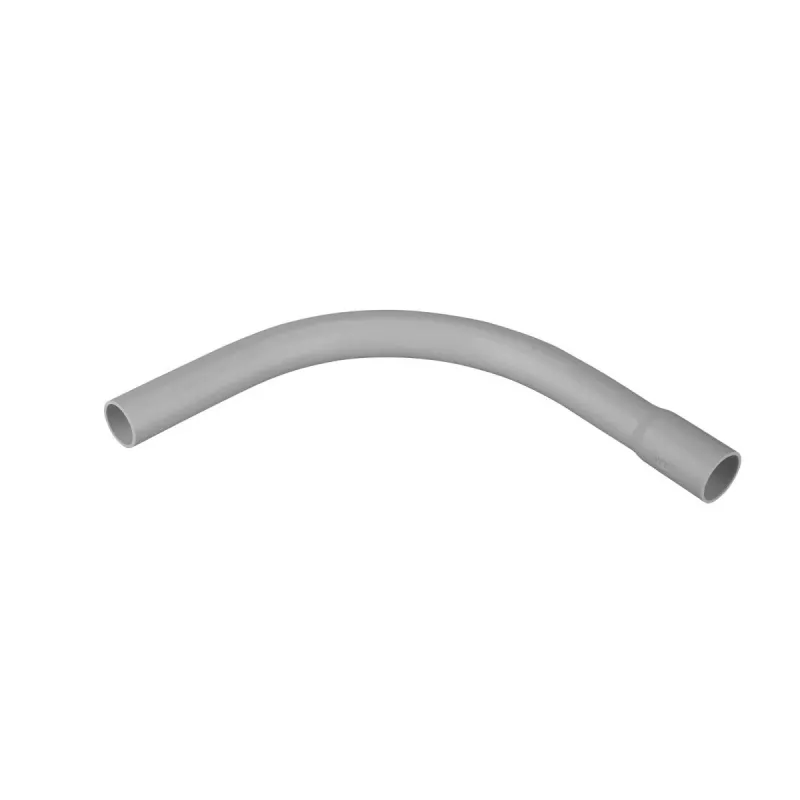

FRAENKISCHE ROHRWERKE Curva de encaixe em plástico para FPKu-EM-F SBSKu-EM 63 (22260063)

Electricians and installers working with FPKu-EM-F conduit systems can use this plastic push-fit bend to change direction in cable protection runs. The 90° bend snaps onto compatible conduit without tools, making it suitable for concealed installations in walls, hollow spaces, and concrete.

Key specifications

• Nominal diameter: 63 mm
• Bend angle: 90°
• Material: Plastic (PVC)
• Connection type: Push-fit / plug-in
• Compatible conduit series: FPKu-EM-F
• Colour: Black
• Flame retardant: Yes
• Temperature range: -5 °C to +60 °C
• Mechanical strength: Medium (Class 3)
• Impact resistance: Medium (Class 3)
• Compression resistance: Medium (Class 3)
• Standard compliance: DIN EN 61386-22

Why choose it

This bend is part of the SBSKu-EM 63 line and is engineered for the FPKu-EM-F conduit series. Its push-fit design speeds up installation and ensures a secure connection without additional fittings. The black PVC construction provides reliable protection for electrical cables in demanding building environments.

Ideal use cases

• Routing cables around corners in concealed electrical installations
• Creating 90° turns in hollow wall or concrete conduit systems
• Protecting wiring in commercial and residential construction projects

Good to know

The bend is halogen-free and meets the requirements of DIN EN 61386-22 for conduit systems. It is designed for use with FPKu-EM-F conduits of the same nominal diameter.
