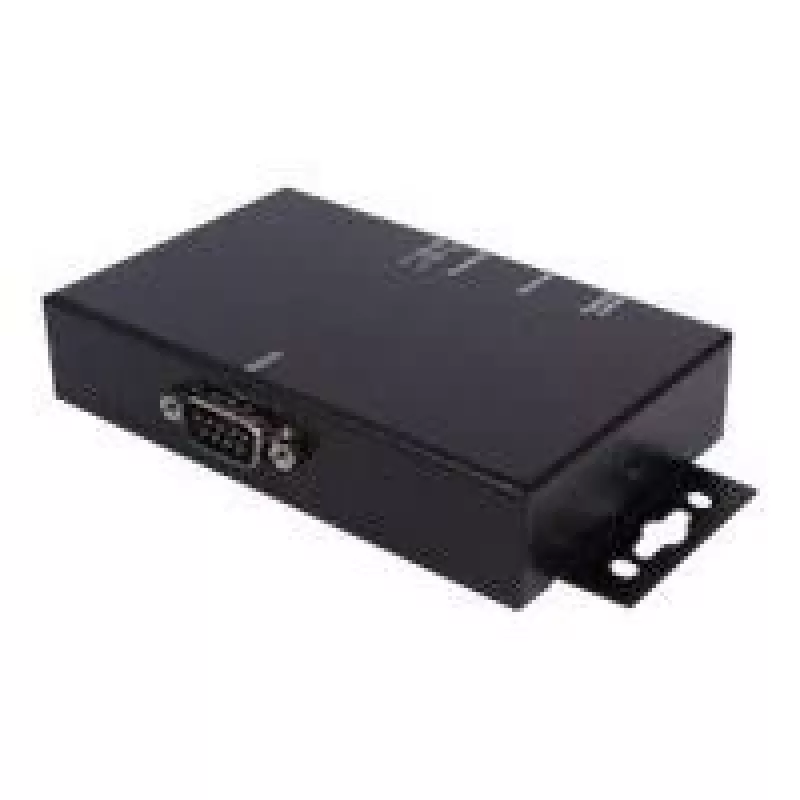

Gateway de dados Ethernet EXSYS EX-6031 para 1 x RS-232, metal

Connect legacy RS-232 serial devices to modern Ethernet networks with the EXSYS EX-6031 Ethernet Data Gateway. This robust metal-enclosed gateway bridges the gap between serial equipment and IP-based systems, enabling remote access and control over TCP/IP networks.

Who is it for

Ideal for industrial automation, building management, and legacy equipment integration where RS-232 devices need to communicate over LAN or the internet.

Main features

• 1x RJ45 10/100 Mbps Ethernet port with Auto-MDI/MDIX
• 1x RS-232 DB9 male serial port supporting baud rates from 300 bps to 230.4 Kbps
• Supports TCP Server, TCP Client, UDP, Pair Connection, and Virtual COM Port modes
• Web-based configuration and Windows utility for easy setup
• Wide 9-48V DC power input via terminal block
• Metal housing for durability in industrial environments
• Operating temperature range: -10°C to 60°C
• LED indicators for Power, Link/Act, and TX/RX

Specifications

• Ethernet Ports: 1x RJ45
• Ethernet Speed: 10/100 Mbps
• Serial Ports: 1x RS-232 (DB9 Male)
• Serial Baud Rate: 300 bps to 230.4 Kbps
• Serial Data Bits: 5, 6, 7, 8
• Serial Stop Bits: 1, 1.5, 2
• Serial Parity: None, Even, Odd, Space, Mark
• Serial Flow Control: RTS/CTS, XON/XOFF, None
• Supported Protocols: TCP, UDP, IP, ARP, ICMP, HTTP, DHCP, DNS, Modbus TCP, Modbus RTU over TCP
• Operating Modes: TCP Server, TCP Client, UDP, Pair Connection, Virtual COM Port
• Configuration: Web-based, Windows Utility
• Power Input: 9-48V DC (Terminal Block)
• Power Consumption: Max. 1.5 W
• Enclosure Material: Metal
• Operating Temperature: -10°C to 60°C
• Mounting Options: DIN-Rail (optional/included)
• LED Indicators: Power, Link/Act, TX/RX

Tips

Use the virtual COM port mode to make the gateway appear as a local serial port on your PC, allowing legacy software to work without modification.
