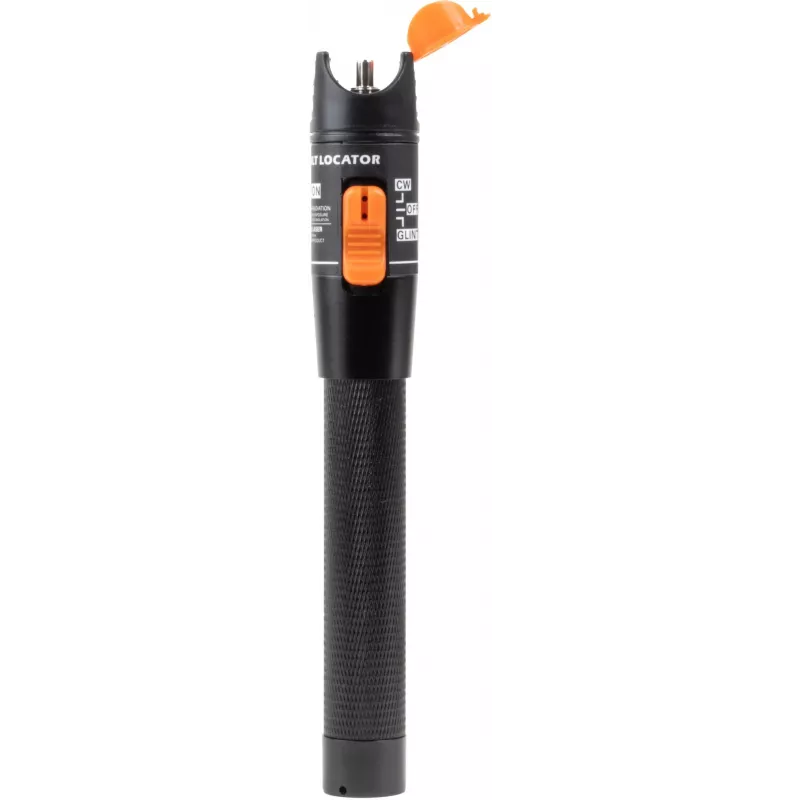

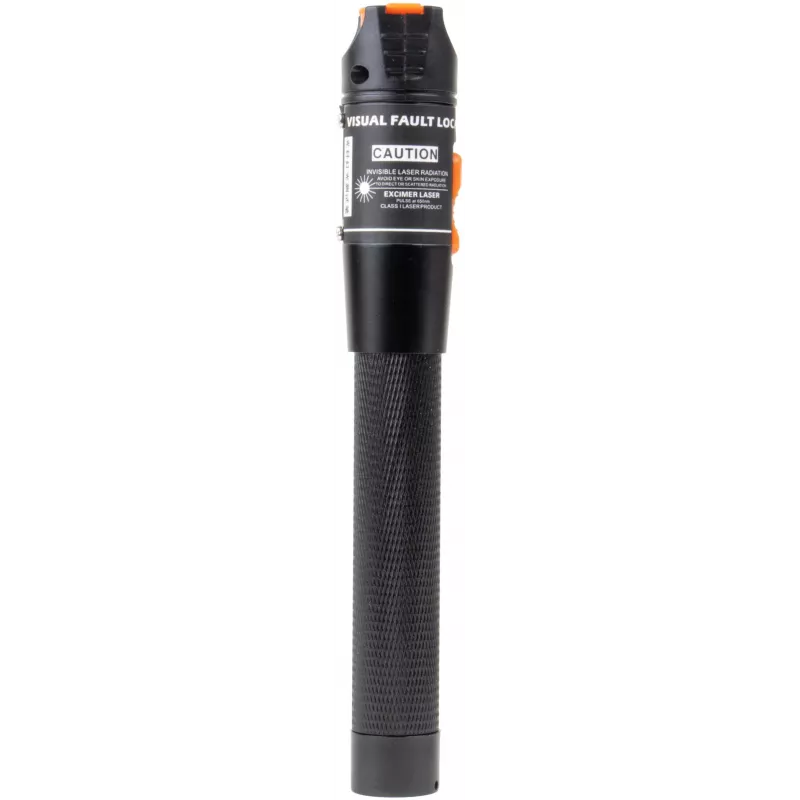

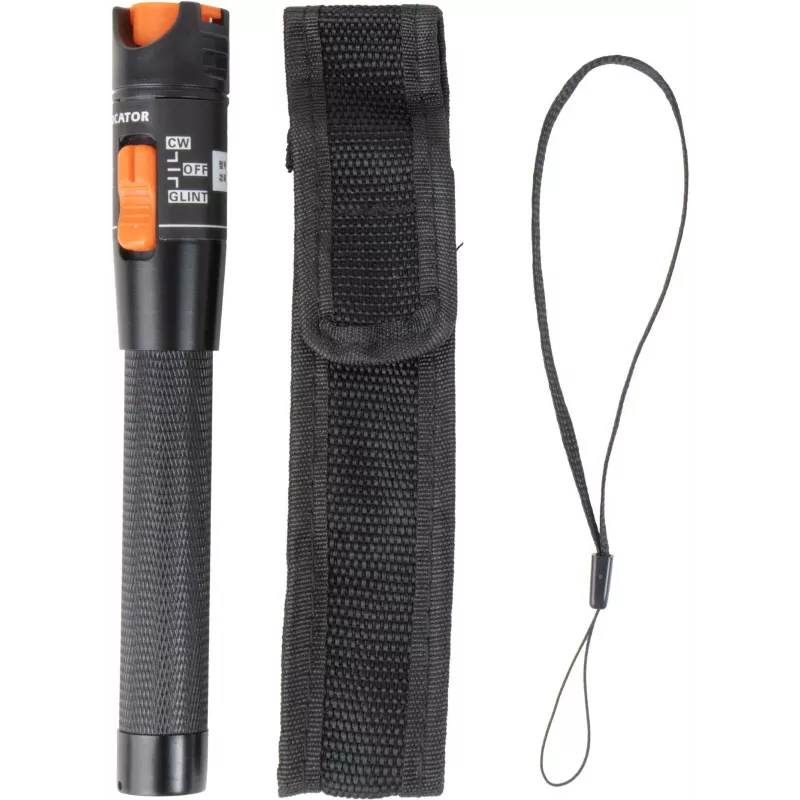

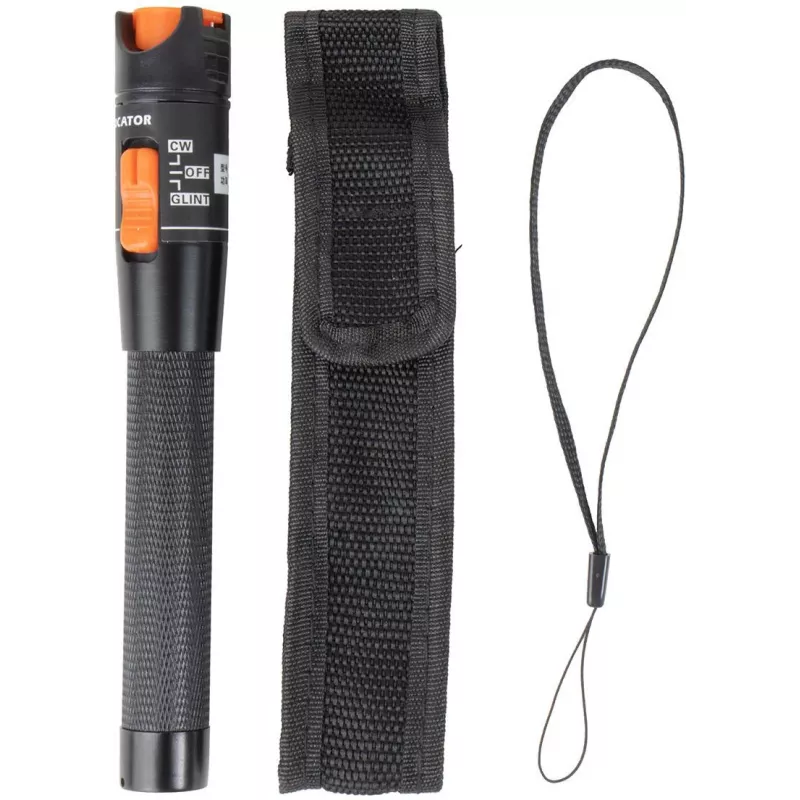

GETFORT Localizador Visual de Falhas 10mW (10km)

The GETFORT GF-VFL10 Visual Fault Locator is a professional-grade tool designed for quick and accurate detection of breaks, bends, and faults in optical fiber cables. With a powerful 10mW output and a detection range of up to 10km on single-mode fiber, this VFL is ideal for telecom technicians, network installers, and field service engineers. Its compact aluminum alloy housing ensures durability in demanding environments.

Advantages

High visibility 650nm red laser with continuous and pulsed modes for easy fault identification. Universal 2.5mm ferrule connector works with FC, SC, and ST adapters. Long battery life of over 10 hours on two AA batteries reduces downtime. Low battery indicator prevents unexpected shutdowns.

Suitable for

• Fiber optic network installation and maintenance
• Identifying breaks, bends, and poor splices in patch cables
• Continuity testing in patch panels and splice closures
• Field troubleshooting by telecom and CATV technicians

Key specifications

• Output Power: 10 mW
• Wavelength: 650 nm ± 10 nm
• Detection Range: Up to 10 km (single-mode fiber)
• Fiber Compatibility: Single-mode (SM) and Multi-mode (MM)

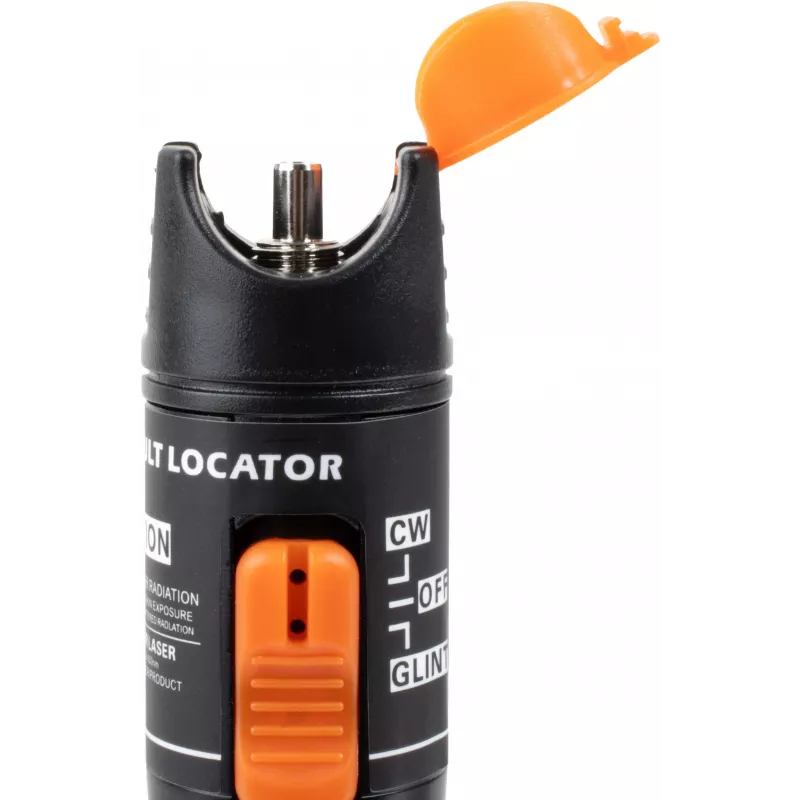

• Connector: Universal 2.5mm ferrule (FC/SC/ST compatible)
• Operating Modes: Continuous Wave (CW) and Pulsed (2 Hz)
• Power Source: 2 x AA 1.5V batteries (not included)
• Battery Life: >10 hours typical
• Laser Class: Class 3R
• Housing Material: Aluminum alloy
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +70°C

Recommendations

For optimal performance, use fresh alkaline batteries. Always wear appropriate laser safety eyewear when operating Class 3R lasers. This VFL is not suitable for live fiber testing; ensure the fiber is dark before use.
